4.3LX (GEN +) (2 BBL.) GM 262 V-6 - 0F803000 THRU 0K999999 - OIL PAN AND OIL PUMP

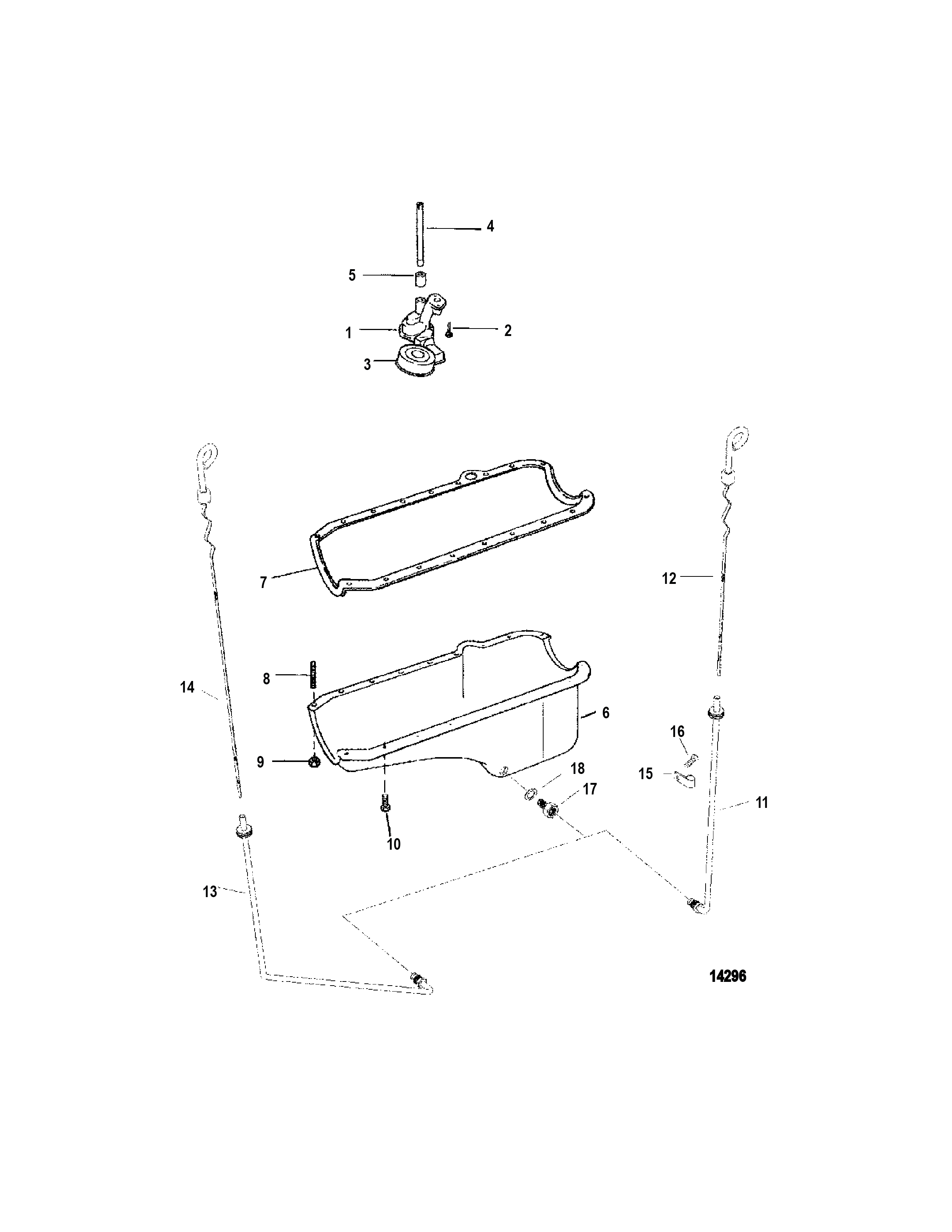

Section Drawing: (Hover or click to view larger)



Ref # Part Class Part Number Description Comments Qty Note
1 0000 8099071 PUMP ASSEMBLY Oil   1
2 0010 OEM: 525-10-17346 SCREW   1
3 0000 OEM: 525-8099081 SCREEN   1
4 0000 OEM: 525-36184 SHAFT   1
5 0023 OEM: 525-23-36183 RETAINER   1
6 0000 809980 PAN Oil (ALUMINUM)   1
7 0027 OEM: 525-27-142471, Sierra: 676-18-61513 GASKET SET   1 [1]
8 0016 OEM: 525-16-11989 STUD (.312-18 x 1.6718)   2
9 0011 OEM: 525-11-11971 NUT (.312-18)   2
10 0010 OEM: 525-10-726071 SCREW (5/16-18x x .875)   10
11 0000 807454T TUBE Dipstick DESIGN I 1
12 0000 807455T GAUGE Oil Level DESIGN I 1
13 0000 860209T TUBE Dipstick DESIGN II 1
14 0000 860210T GAUGE Oil Level DESIGN II 1
15 0054 90309 CLIP   1
16 0010 OEM: 525-10-35366 SCREW   1
17 0022 OEM: 525-22-807804 FITTING   1
18 0027 49955 GASKET Drain   1 [1]
- 0027 824326A96 GASKET SET Overhaul   1

PART NOTES:

[1] - PART INCLUDED IN ENGINE OVERHAUL GASKET SET
