4.3LX (GEN +) (2 BBL.) GM 262 V-6 - 0F803000 THRU 0K999999 - REMOTE OIL FILTER (WITH 16521T ADAPTOR)

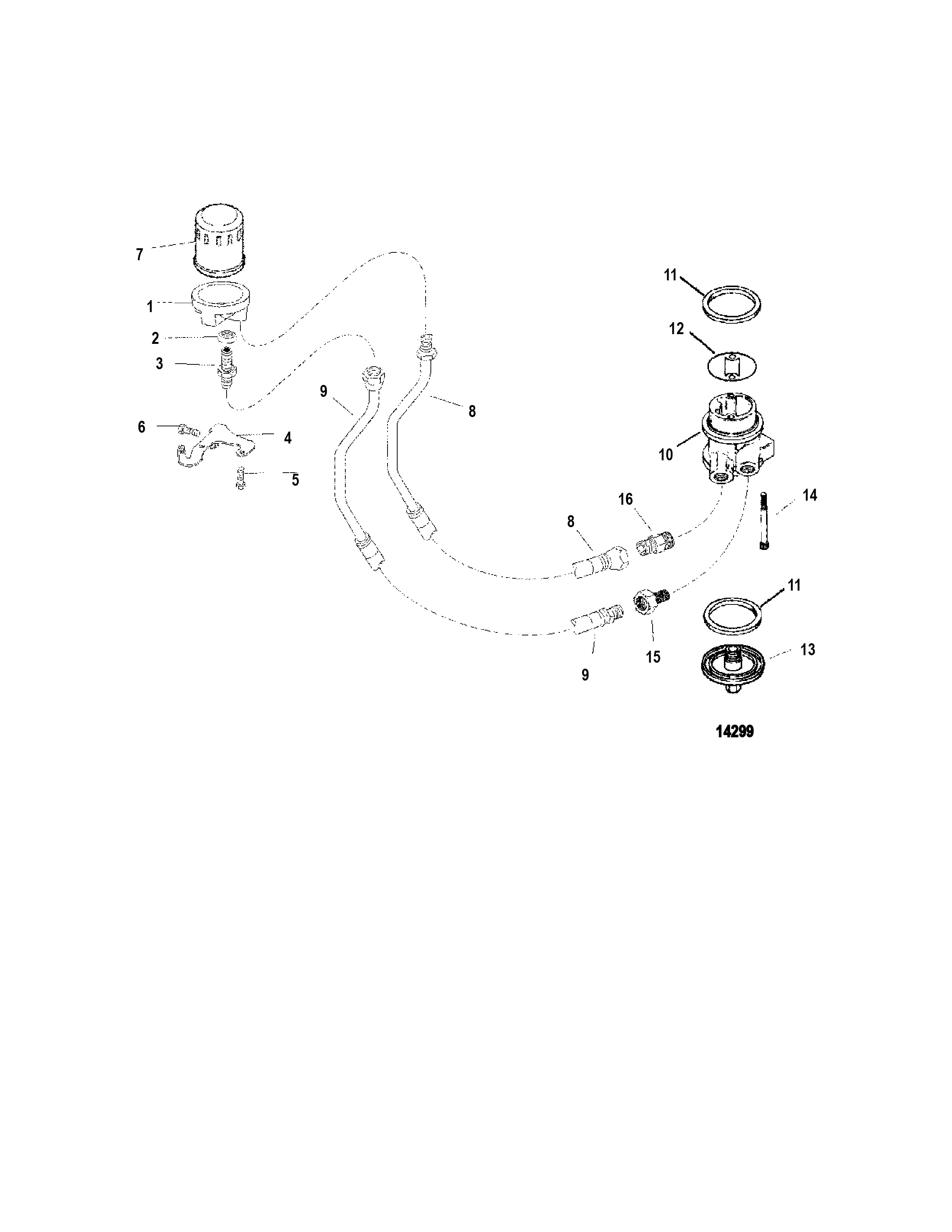

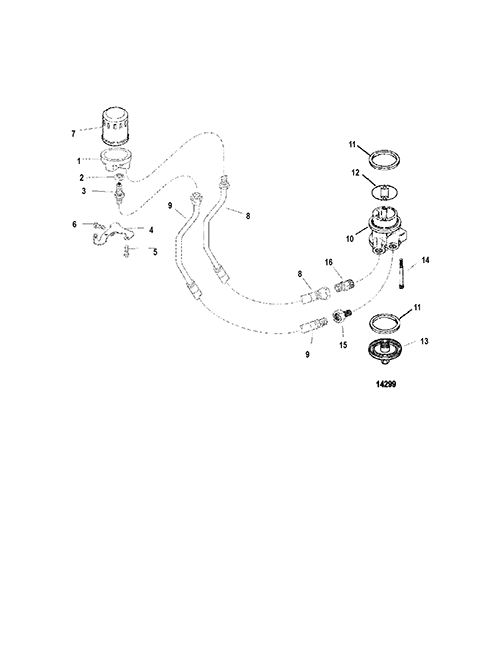

Section Drawing: (Hover or click to view larger)



Ref # Part Class Part Number Description Comments Qty Note
1 0000 OEM: 525-35-806329T ADAPTER Oil Filter   1
2 0026 OEM: 525-26-42077 SEAL   1
3 0022 OEM: 525-22-806328 FITTING   1
4 0000 OEM: 525-807459T BRACKET   1
5 0010 OEM: 525-10-98257 SCREW (.312-18 x .500)   2
6 0010 OEM: 525-10-98261 SCREW (.375-16 x .750)   1
7 0000 14957 FILTER Oil   1 [1]
8 0032 807460 HOSE Oil   1
9 0032 807857 HOSE Oil   1
10 0000 16521T ADAPTER   1
11 0027 OEM: 525-27-16779 GASKET   2
12 0027 OEM: 525-27-814896 GASKET   1
13 0000 15820T COVER   1
14 0010 15853 SCREW (.312-18 x 18 x 3.00)   2
15 0022 OEM: 525-22-93190 FITTING (.375 NPTF x .50 Inverted Flare)   1
16 0022 OEM: 525-22-807272 FITTING (.50) Inch Flare To (.375) Inch NPT   1

PART NOTES:

[1] - Alternate part numbers:

14957Service Part

802885QQS

802885TMPP
