4.3LX (GEN +) (2 BBL.) GM 262 V-6 - 0F803000 THRU 0K999999 - POWER STEERING COMPONENTS

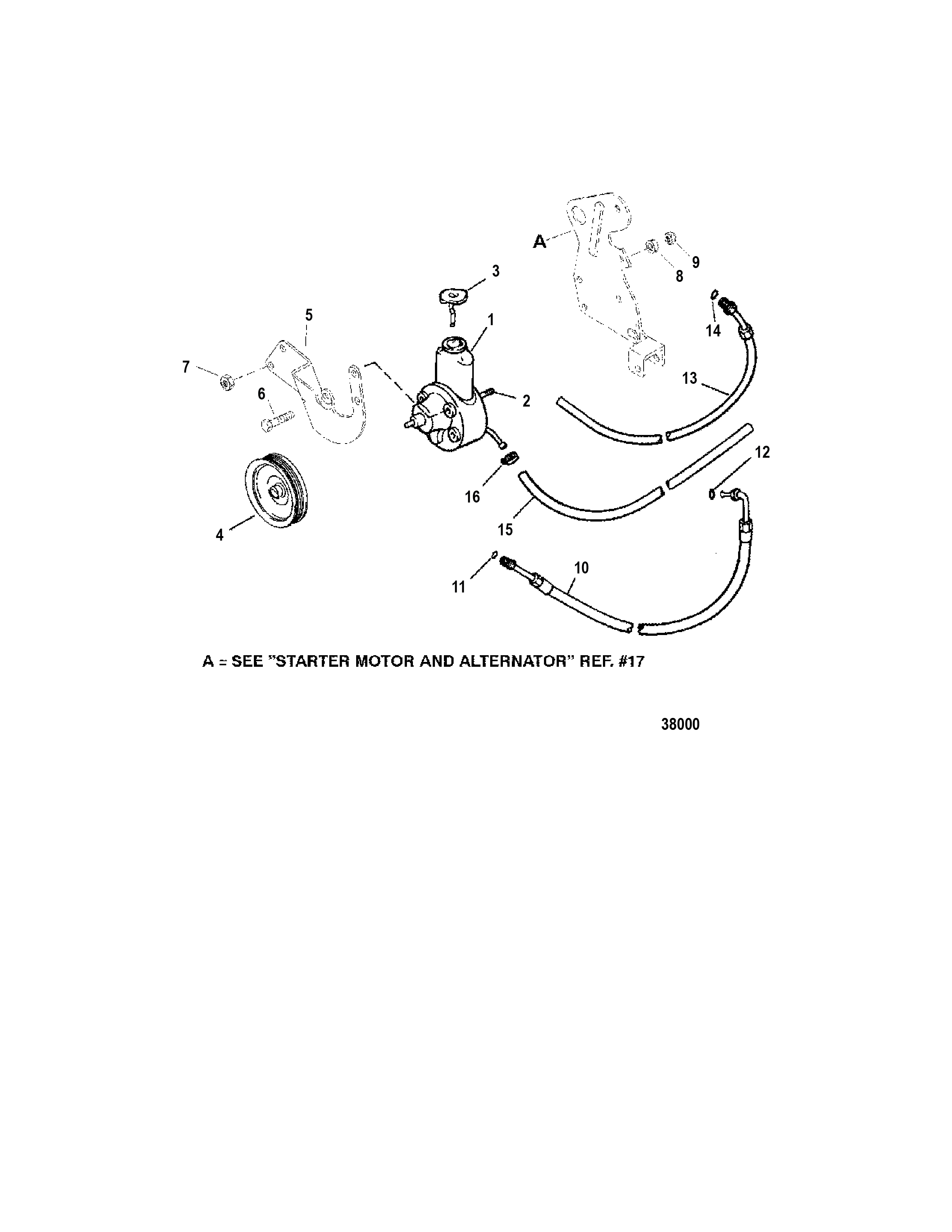

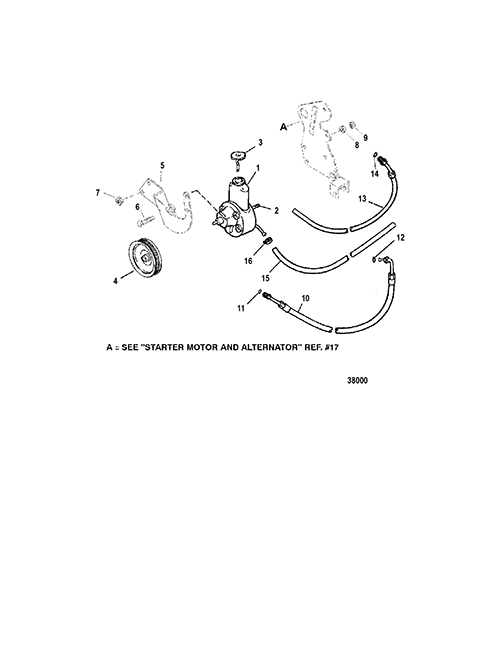

Section Drawing: (Hover or click to view larger)



Ref # Part Class Part Number Description Comments Qty Note
1 0000 OEM: 525-16792A39, Sierra: 676-18-7508 PUMP ASSEMBLY   1
2 0016 OEM: 525-16-41877 STUD (M10)   2
3 0036 OEM: 525-36-95805 CAP   1
4 0057 OEM: 530-861758A1 BELT Serpentine (ALPHA) 4-3/4 IN. DIA. PULLEY 1
4 0057 OEM: 525-57-861759A1 BELT Serpentine (BRAVO) 4-3/4 IN. DIA. PULLEY 1
4 0000 OEM: 525-861578, Sierra: 676-18-8297 PULLEY (5-3/4 IN. DIA. PULLEY) 1
5 0000 807751T BRACE   1
6 0010 OEM: 525-10-40001188 SCREW (M10 x 20)   3
7 0011 OEM: 525-11-32219 NUT (.375-16)   3
8 0023 OEM: 525-23-905201 SPACER (.750 x .250)   1
9 0011 OEM: 525-11-90517 NUT (M10)   1
10 0032 OEM: 525-32-80622216 HOSE (FITTINGS ON BOTH ENDS) 1
11 0025 OEM: 525-25-89879 O-RING (.301 x .064)   1
12 0025 OEM: 525-25-806232 O-RING (.239 x .064)   1
13 0032 OEM: 525-32-80622142 HOSE ASSEMBLY (84.00 Inches Bulk) Return (FITTING ON ONE END) 1
14 0025 OEM: 525-25-89879 O-RING (.301 x .064)   1
15 0032 5251914 HOSE (53.00 Inches Bulk) Pump to Oil Cooler   1
16 0054 OEM: 525-54-815504105 CLAMP Worm Gear (11-18 mm)   3
