4.3LX (GEN II) (4 BBL.) GM 262 V-6 - 0D714370 THRU 0F001219 - CARBURETOR AND THROTTLE LINKAGE (2 BARREL)

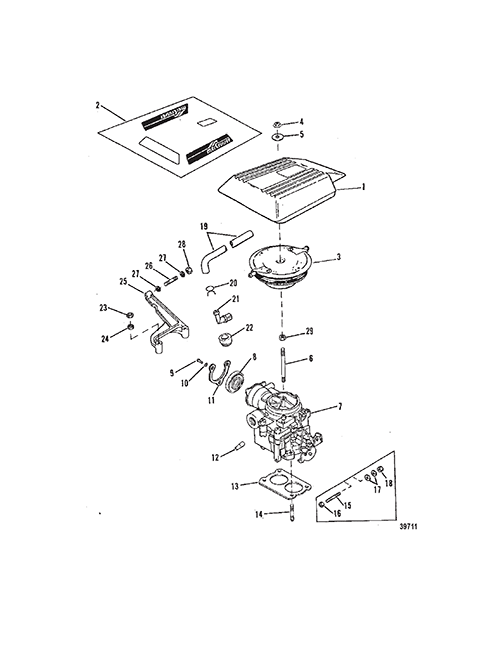

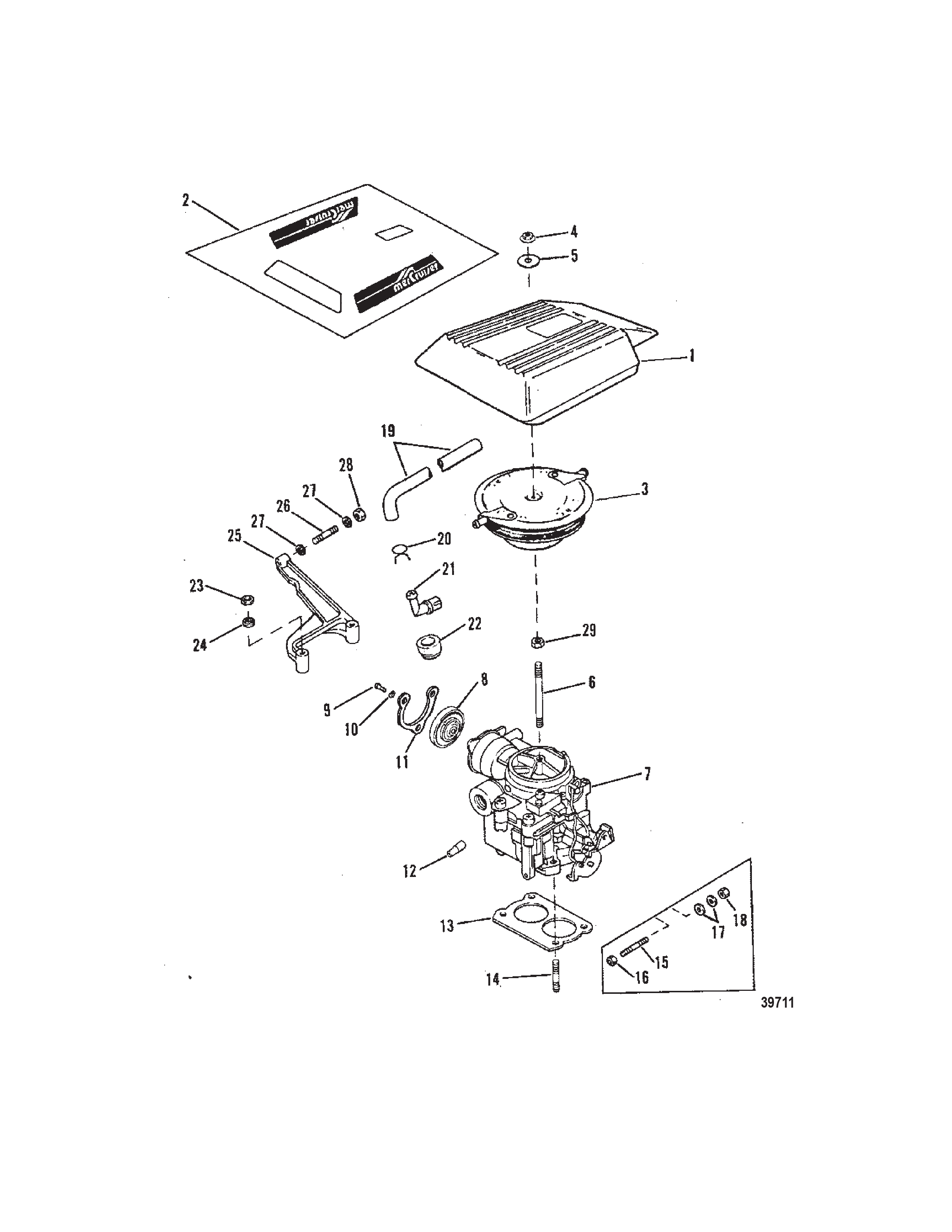

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- ALTERNATOR (MANDO)
- CARBURETOR (MERCARB-2 BARREL)
- CARBURETOR (WEBER-4 BARREL)
- CARBURETOR AND THROTTLE LINKAGE (2 BARREL)
- CARBURETOR AND THROTTLE LINKAGE (4 BARREL)
- CRANKSHAFT AND PISTONS
- CYLINDER BLOCK AND CAMSHAFT
- CYLINDER HEAD AND ROCKER COVER
- DISTRIBUTOR AND IGNITION COMPONENTS
- ENGINE MOUNTING
- EXHAUST MANIFOLD AND EXHAUST ELBOW
- EXHAUST SYSTEM
- FLYWHEEL HOUSING
- FUEL PUMP AND FUEL FILTER
- INTAKE MANIFOLD AND FRONT COVER
- OIL PAN AND OIL PUMP
- POWER STEERING COMPONENTS
- REMOTE OIL FILTER
- SERVICE AND SUPPORT MATERIAL
- SHIFT BRACKET
- STANDARD COOLING SYSTEM
- STARTER MOTOR
- STARTER MOTOR AND ALTERNATOR
- WIRING HARNESS AND ELECTRICAL COMPONENTS
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0000 | OEM: 525-18484A3 | COVER | 1 | ||
| 2 | 0037 | 812776A1 | DECAL SET | 1 | ||
| 3 | 0000 | 44196T1 | FLAME ARRESTOR | 1 | ||
| 4 | 0011 | 35045 | NUT (.250-28) | 1 | ||
| 5 | 0012 | OEM: 525-12-86400 | WASHER | 1 | ||
| 6 | 0016 | OEM: 525-16-97012 | STUD | 1 | ||
| 7 | 3304 | 9565A7 | CARBURETOR (MERCARB) | 1 | [1] | |
| 8 | 0000 | 70125A1 | COVER Choke | 1 | ||
| 9 | 0010 | 33047 | SCREW | 3 | ||
| 10 | 0013 | OEM: 525-13-26995 | LOCKWASHER (#8) Stainless Steel | 3 | ||
| 11 | 0053 | OEM: 525-53-805140 | PLATE | 1 | ||
| 12 | 0022 | OEM: 525-22-54090 | ELBOW | 1 | ||
| 13 | 0027 | 701431 | GASKET | 1 | [2] | |
| 14 | 0016 | OEM: 525-16-70236, GLM: 700-22482 | STUD (.312 x 1.500) | 2 | ||
| 14 | 0016 | OEM: 525-16-70237 | STUD (.312-18/.312-24 x 2.620) | 2 | ||
| 15 | 0016 | 96112 | STUD (.250-28 x 2.00) Throttle Cable Anchor | 1 | ||
| 16 | 0011 | 20361 | NUT (.250-28) | 1 | ||
| 17 | 0012 | OEM: 525-12-29245, Sierra: 676-18-4275, GLM: 700-21490 | WASHER (.281 x .500 x .060) Stainless Steel | 2 | ||
| 18 | 0011 | 35045 | NUT (.250-28) | 1 | ||
| 19 | 0032 | 9331512 | HOSE (11-1/4") | 2 | ||
| 20 | 0054 | 53101 | CLAMP | 4 | ||
| 21 | 0000 | 97850 | ELBOW 90 Degree Breather | 2 | ||
| 22 | 0025 | 52188 | GROMMET | 2 | ||
| 23 | 0011 | 25594 | NUT (.9375-24) | 4 | ||
| 24 | 0010 | 20884 | WASHER | 4 | ||
| 25 | 0000 | 77456A2 | BRACKET | 1 | ||
| 26 | 0016 | OEM: 525-16-38525 | STUD | 1 | ||
| 27 | 0012 | OEM: 525-12-24664 | WASHER (M4 x 20) | 2 | ||
| 28 | 0011 | 35045 | NUT (.250-28) | 1 | ||
| 29 | 0011 | 28941 | NUT | 1 |
PART NOTES:
[1] - Alternate part numbers:
804618R02Reman
9565A 7QS
[2] - 11977A92 GASKET SET, ENGINE OVERHAUL
