4.3LX (GEN II) (4 BBL.) GM 262 V-6 - 0D714370 THRU 0F001219 - POWER STEERING COMPONENTS

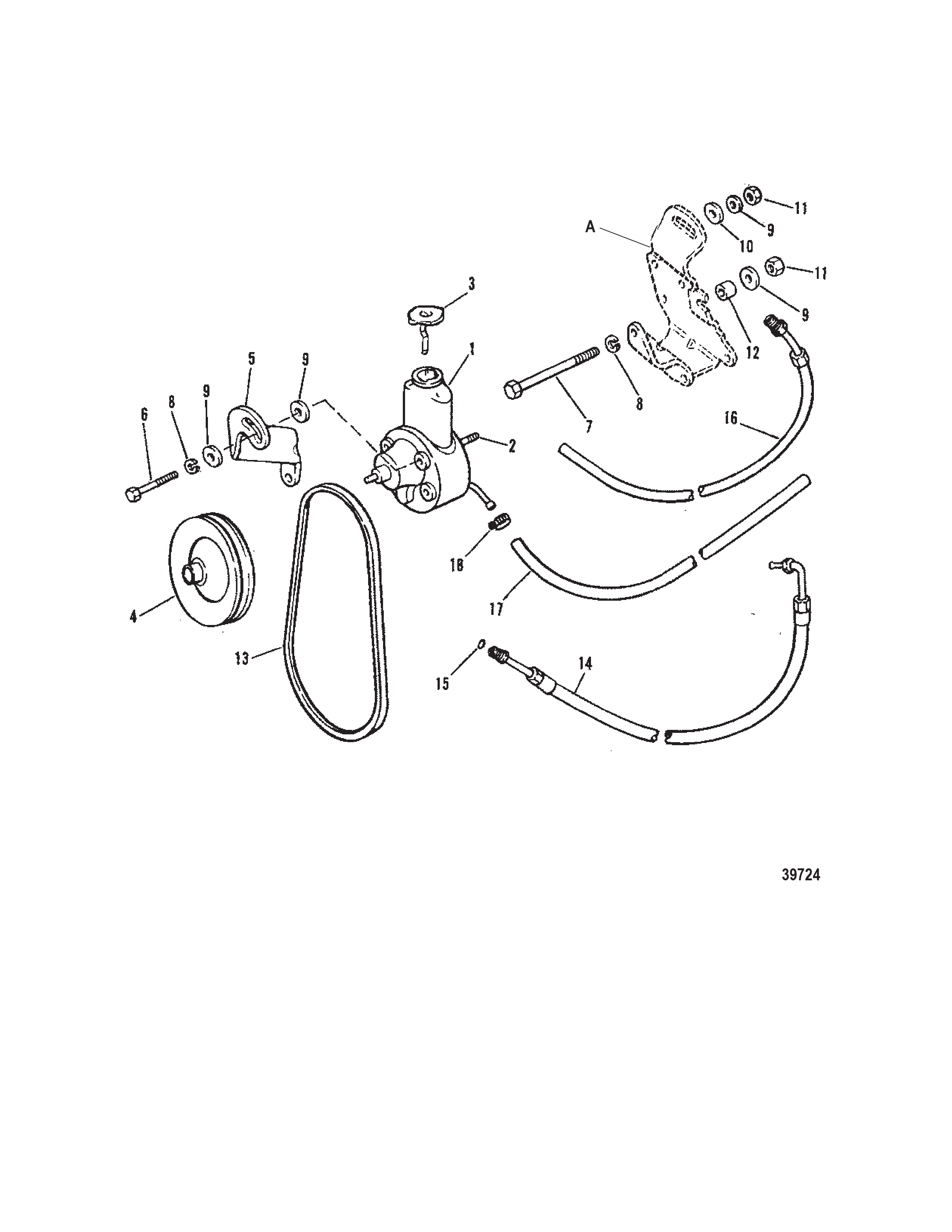

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- ALTERNATOR (MANDO)
- CARBURETOR (MERCARB-2 BARREL)
- CARBURETOR (WEBER-4 BARREL)
- CARBURETOR AND THROTTLE LINKAGE (2 BARREL)
- CARBURETOR AND THROTTLE LINKAGE (4 BARREL)
- CRANKSHAFT AND PISTONS
- CYLINDER BLOCK AND CAMSHAFT
- CYLINDER HEAD AND ROCKER COVER
- DISTRIBUTOR AND IGNITION COMPONENTS
- ENGINE MOUNTING
- EXHAUST MANIFOLD AND EXHAUST ELBOW
- EXHAUST SYSTEM
- FLYWHEEL HOUSING
- FUEL PUMP AND FUEL FILTER
- INTAKE MANIFOLD AND FRONT COVER
- OIL PAN AND OIL PUMP
- POWER STEERING COMPONENTS
- REMOTE OIL FILTER
- SERVICE AND SUPPORT MATERIAL
- SHIFT BRACKET
- STANDARD COOLING SYSTEM
- STARTER MOTOR
- STARTER MOTOR AND ALTERNATOR
- WIRING HARNESS AND ELECTRICAL COMPONENTS
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0000 | 16792A1 | PUMP ASSEMBLY | 1 | ||
| 2 | 0016 | OEM: 525-16-41877 | STUD (M10) | 2 | ||
| 3 | 0036 | OEM: 525-36-95805 | CAP | 1 | ||
| 4 | 0000 | OEM: 525-73873A1, Sierra: 676-18-8227 | PULLEY | 1 | ||
| 5 | 0000 | OEM: 525-15082T | BRACE | 1 | ||
| 6 | 0010 | OEM: 525-10-40001192 | SCREW (M10 x 25) | 1 | ||
| 7 | 0010 | OEM: 525-10-40001188 | SCREW (M10 x 20) | 1 | ||
| 8 | 0013 | OEM: 525-13-400248 | LOCKWASHER (M10) | 2 | ||
| 9 | 0023 | OEM: 525-23-72057 | SPACER (1.00 Outside Diameter x .125 x Thick) | 4 | ||
| 10 | 0012 | OEM: 525-12-28105 | WASHER | 1 | ||
| 11 | 0011 | OEM: 525-11-90517 | NUT (M10) | 2 | ||
| 12 | 0023 | OEM: 525-23-45353 | SPACER | 1 | ||
| 13 | 0057 | 816295T | V BELT | 1 | ||
| 14 | 0032 | 90494 | HOSE (FITTINGS ON BOTH ENDS) | 1 | ||
| 15 | 0025 | OEM: 525-25-89879 | O-RING (.301 x .064) | 1 | ||
| 16 | 0032 | OEM: 525-32-9884339 | HOSE ASSEMBLY (72.00 Inches Bulk) (FITTINGS ON ONE END) | 1 | ||
| 17 | 0032 | 5251915 | HOSE (216.00 Inches Bulk) PUMP TO COOLER | 1 | ||
| 18 | 0054 | OEM: 525-54-815504206 | CLAMP Worm Gear | 3 | ||
| A | NA | NOT AVAILABLE (See 'Starter Motor And Alternator' page ref. # 17) | 1 |
