4.3LX (GEN II) (4 BBL.) GM 262 V-6 - 0D714370 THRU 0F001219 - DISTRIBUTOR AND IGNITION COMPONENTS

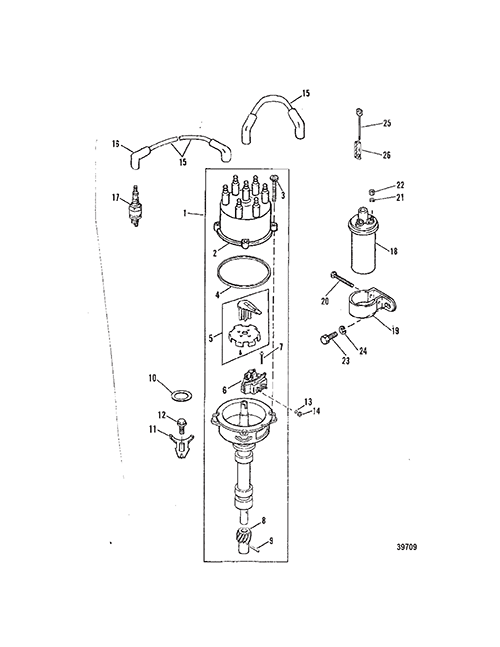

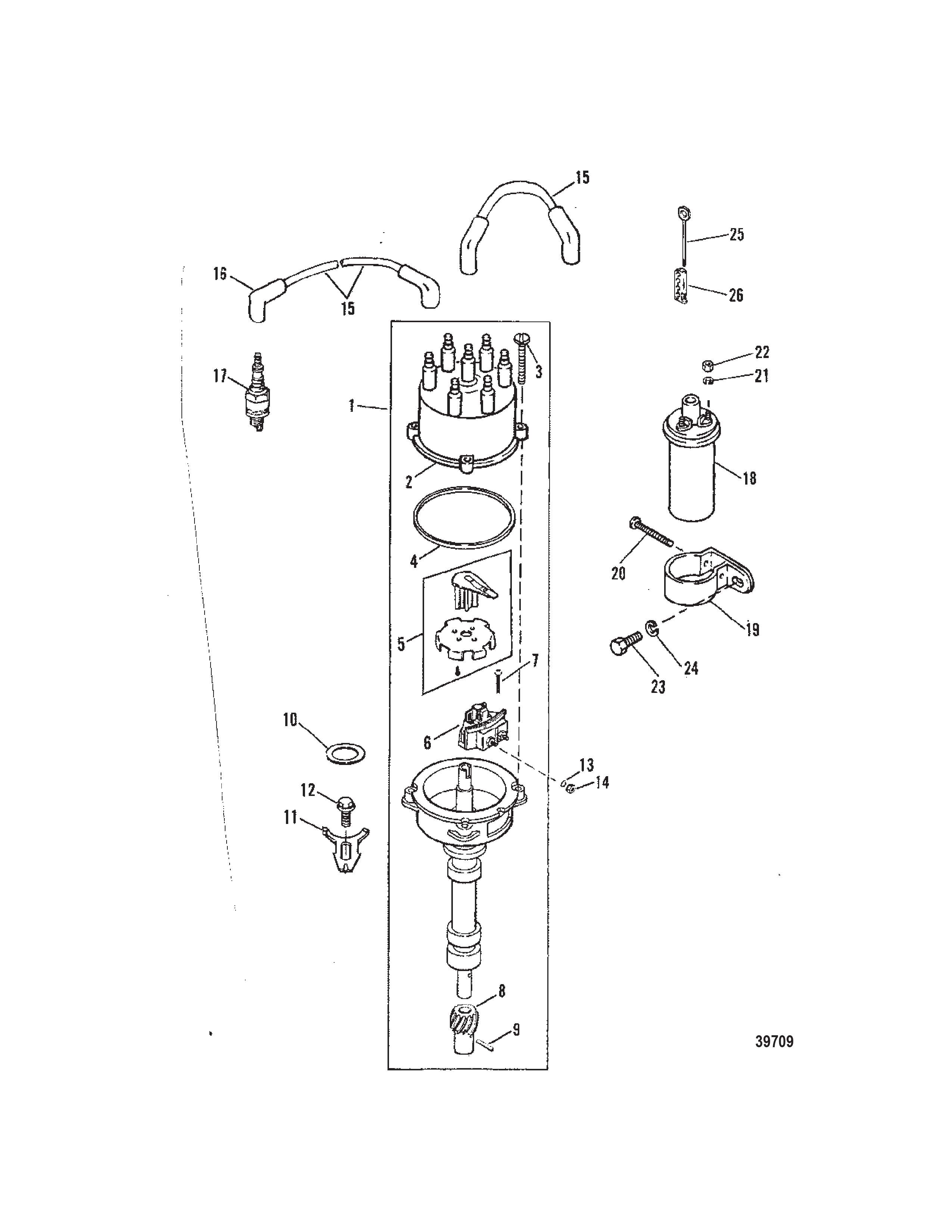

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- ALTERNATOR (MANDO)
- CARBURETOR (MERCARB-2 BARREL)
- CARBURETOR (WEBER-4 BARREL)
- CARBURETOR AND THROTTLE LINKAGE (2 BARREL)
- CARBURETOR AND THROTTLE LINKAGE (4 BARREL)
- CRANKSHAFT AND PISTONS
- CYLINDER BLOCK AND CAMSHAFT
- CYLINDER HEAD AND ROCKER COVER
- DISTRIBUTOR AND IGNITION COMPONENTS
- ENGINE MOUNTING
- EXHAUST MANIFOLD AND EXHAUST ELBOW
- EXHAUST SYSTEM
- FLYWHEEL HOUSING
- FUEL PUMP AND FUEL FILTER
- INTAKE MANIFOLD AND FRONT COVER
- OIL PAN AND OIL PUMP
- POWER STEERING COMPONENTS
- REMOTE OIL FILTER
- SERVICE AND SUPPORT MATERIAL
- SHIFT BRACKET
- STANDARD COOLING SYSTEM
- STARTER MOTOR
- STARTER MOTOR AND ALTERNATOR
- WIRING HARNESS AND ELECTRICAL COMPONENTS
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0000 | 90747A15 | DISTRIBUTOR ASSEMBLY | 1 | ||
| 2 | 0000 | OEM: 530-815407A2, Sierra: 676-18-5396, GLM: 700-71500 | CAP Distributor | 1 | [1] | |
| 3 | 0010 | OEM: 525-10-90926, GLM: 700-22305 | SCREW (#10-32 x .810) | 4 | ||
| 4 | 0027 | 982421 | GASKET | 1 | ||
| 5 | 0000 | OEM: 530-13524A6, Sierra: 676-18-5432, GLM: 700-72890 | ROTOR/SENSOR WHEEL | 1 | [2] | |
| 6 | 0087 | 91019A3 | SENSOR ASSEMBLY | 1 | ||
| 7 | 0010 | OEM: 525-10-66686, GLM: 700-22311 | SCREW (#10-32 x 1.00) | 1 | ||
| 7 | 0010 | OEM: 525-10-72202, GLM: 700-22312 | SCREW (#10-32 x 1.25) | 1 | ||
| 8 | 0043 | 8137761 | GEAR | 1 | ||
| 9 | 0017 | OEM: 525-17-47617, GLM: 700-22195 | PIN | 1 | ||
| 10 | 0027 | OEM: 525-27-344863, Sierra: 676-18-0874 | GASKET | 1 | [3] | |
| 11 | 0000 | OEM: 525-52185 | CLAMP | 1 | ||
| 12 | 0010 | OEM: 525-10-11976 | SCREW (.375-16 x 1.00) | 1 | ||
| 13 | 0013 | OEM: 525-13-26996 | LOCKWASHER (#10) Stainless Steel | 2 | ||
| 14 | 0011 | OEM: 525-11-68219 | NUT (#10-32) Stainless Steel | 2 | ||
| 15 | 0084 | 816761A11 | SPARK PLUG WIRE KIT | 1 | ||
| 16 | 0085 | OEM: 525-85-63709A1 | BOOT/TERMINAL KIT | 8 | ||
| 17 | 0033 | 59571 | SPARK PLUG | 8 | [4] | |
| 18 | 0392 | 7803A4 | COIL | 1 | ||
| 19 | 0000 | 65970T | BRACKET | 1 | ||
| 20 | 0010 | 41408 | SCREW (#10-32 x 1.50) | 1 | ||
| 21 | 0013 | OEM: 525-13-26996 | LOCKWASHER (#10) Stainless Steel | 2 | ||
| 22 | 0011 | OEM: 525-11-68219 | NUT (#10-32) Stainless Steel | 2 | ||
| 23 | 0010 | OEM: 525-10-98261 | SCREW (.375-16 x .750) | 1 | ||
| 24 | 0013 | OEM: 525-13-35048, GLM: 700-21493 | LOCKWASHER (.375) | 1 | ||
| 25 | 0016 | OEM: 525-16-90096A1 | STUD ASSEMBLY (#10-32 x Special) | 2 | ||
| 26 | 0054 | OEM: 525-54-72821 | RETAINER | 2 |
PART NOTES:
[1] - Alternate part numbers:
815407A 2Service Part
815407Q02QS
815407Q 5QS Kit
815407T 5MPP Kit
[2] - Alternate part numbers:
13524A 6Service Part
13524Q06QS
815407Q 5QS Kit
815407T 5MPP Kit
[3] - 11977A92 GASKET SET, ENGINE OVERHAUL
[4] - Alternate part numbers:
59571QS
59571BBulk Pack
