350 Mag MPI Alpha-Bravo - Serial 0L010019 Thru 0L339999 - Closed Cooling System

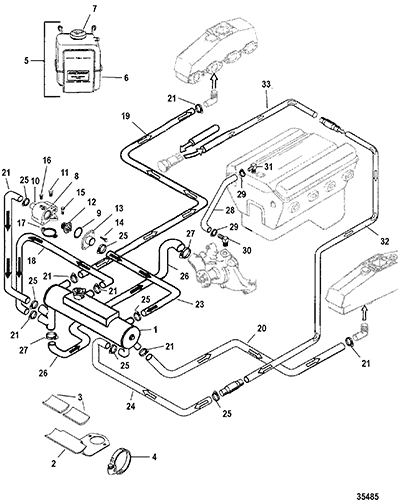

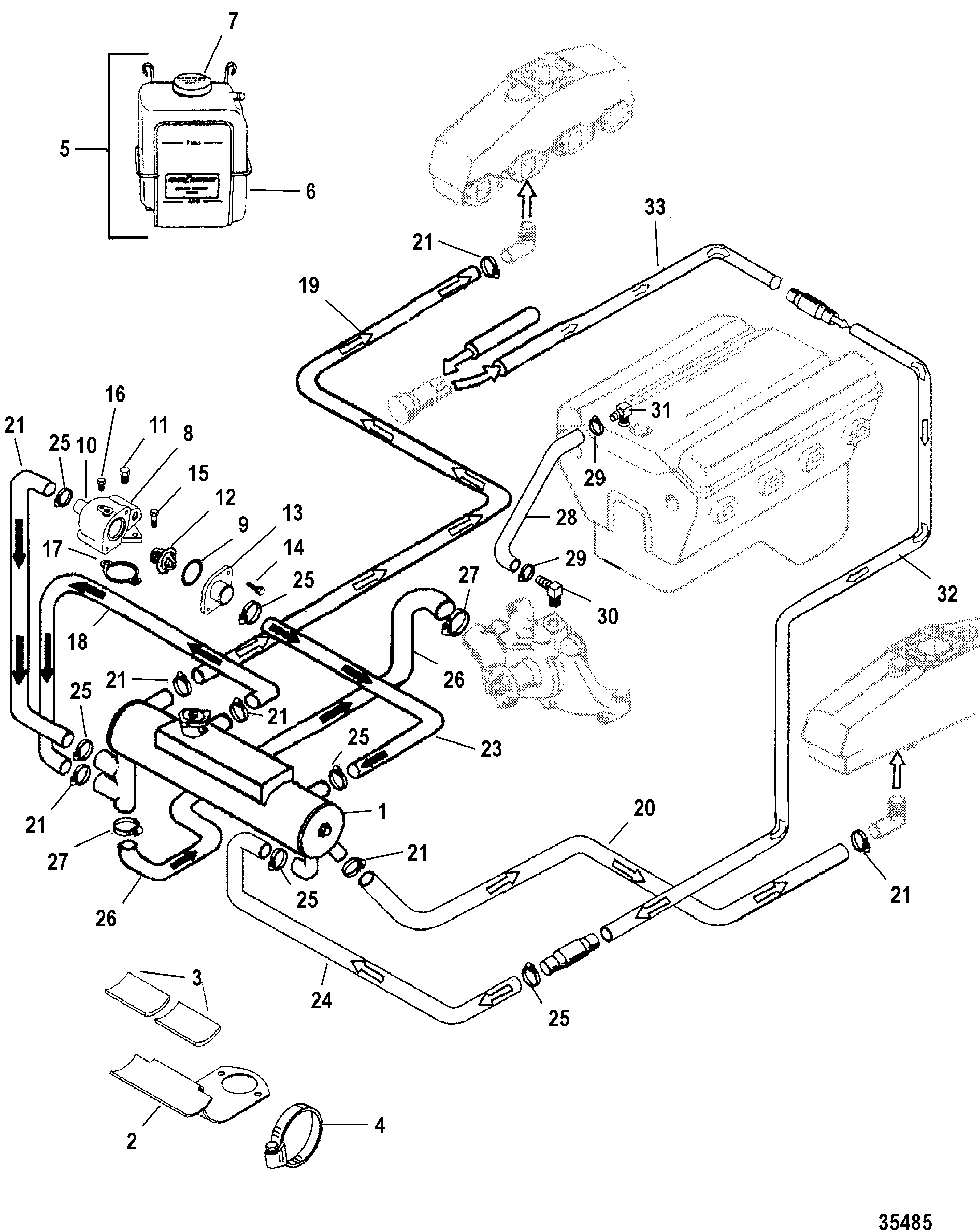

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Blacktrac Transmission
- Closed Cooling System
- Crankshaft And Flywheel
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust System
- Flywheel Housing (With Blacktrac)
- Flywheel Housing (Without Blacktrac)
- Fuel Filter
- Fuel Pump And Fuel Cooler
- Intake Manifold And Fuel Rails
- Intake Plenum And Flame Arrestor
- Mercathode Components
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Pistons And Connecting Rods
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System
- Starter Motor And Alternator
- Water Pump And Front Cover
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 860234A1 | HEAT EXCHANGER | 1 | ||||||
| NS | 8M0036623 | COVER, Heat Exchanger End | 2 | 814875 | |||||
| NS | 8M0036987 | GASKET, End Cover | 2 | 27-814876 | |||||
| NS | 10-814877 | BOLT | 2 | ||||||
| NS | 8M0039163 | O-RING, Special | 2 | 25-814878 | |||||
| NS | 36-8148791 | CAP | 1 | ||||||
| 2 | 860326A1 | BRACKET ASSEMBLY, Heat Exchanger | 1 | ||||||
| 3 | 18431 | PAD | 2 | ||||||
| 4 | 54-815504388 | CLAMP, Worm Gear | 2 | ||||||
| 5 | 71587A10 | RECOVERY KIT, Coolant | 1 | COOLANT RECOVERY SYSTEM IS SOLD AS A COMPLETE KIT ONLY. | |||||
| NS | 32-774572 | HOSE, (48.00 Inches Bulk) | 1 | ||||||
| 6 | 71587A11 | BOTTLE, Plastic | 1 | ||||||
| 7 | 72058 | CAP | 1 | ||||||
| 8 | 861188A1 | HOUSING ASSEMBLY, Thermostat | 1 | ||||||
| 9 | 25-8071341 | SEAL | 1 | 25-807134 | 2 | ||||
| 10 | 23-52020 | SLEEVE, Hose | 1 | This Part is No Longer Available | |||||
| 11 | 22-32803 | 700-21894 | PLUG, Pipe (.375-18) Brass | 1 | |||||
| 12 | 991551 | THERMOSTAT | 1 | ||||||
| 13 | 807075A1 | COVER | 1 | ||||||
| 14 | 10-29198 | SCREW AND LOCKWASHER, (.312-18 x .875) | 2 | ||||||
| 15 | 10-58640 | SCREW, (.375-16 x 1.25) | 2 | ||||||
| 16 | 22-328022 | PLUG, Pipe (.125-27) | 1 | 22-328021 | |||||
| 17 | 27-530451 | GASKET | 2 | 2 | |||||
| 18 | 32-4285069 | HOSE, Transom Plate to Housing | 1 | 32-4285064 | |||||
| 19 | 32-861057 | HOSE, Heat Exchanger To Exhaust Manifold | 1 | (STARBOARD) | |||||
| 20 | 32-860421 | HOSE, Heat Exchanger To Exhaust Manifold | 1 | (PORT) | |||||
| 21 | 54-815504220 | CLAMP, Worm Gear | 6 | ||||||
| 22 | 32-860331 | HOSE, Thermostat By-Pass | 1 | ||||||
| 23 | 32-860419 | HOSE, Thermostat Housing To Heat Exchanger | 1 | ||||||
| 24 | 32-860332 | HOSE | 1 | ||||||
| 25 | 54-815504222 | CLAMP, Worm Gear (1.98 DIameter) | 6 | ||||||
| 26 | 32-861059 | HOSE | 1 | ||||||
| 27 | 54-815504232 | CLAMP, Worm Gear (2.50 Diameter) | 2 | ||||||
| 28 | 32-99520 | HOSE, Water Pump To Intake Manifold | 1 | 32-860482 | |||||
| 29 | 54-815504212 | CLAMP, Worm Gear | 2 | ||||||
| 30 | 22-860346 | FITTING, Elbow (90 Degree) (.750) | 1 | ||||||
| 31 | 22-808042 | FITTING, Elbow (90 Degrees) (.50 NPT x .75 Bars) | 1 | ||||||
| 32 | 32-8600891 | HOSE, Molded | 1 | 32-860089 | |||||
| 33 | 32-8080441 | HOSE, Molded | 1 | ||||||
| NS | 19-8079923 | COVER, Hose Clamp End | AR | 3 | |||||
| - | 27-75611A98 | GASKET SET, Engine Overhaul | 1 |
