350 Mag MPI Alpha-Bravo - Serial 0L010019 Thru 0L339999 - Intake Manifold And Fuel Rails

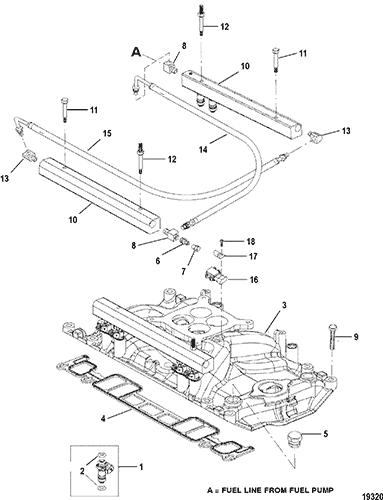

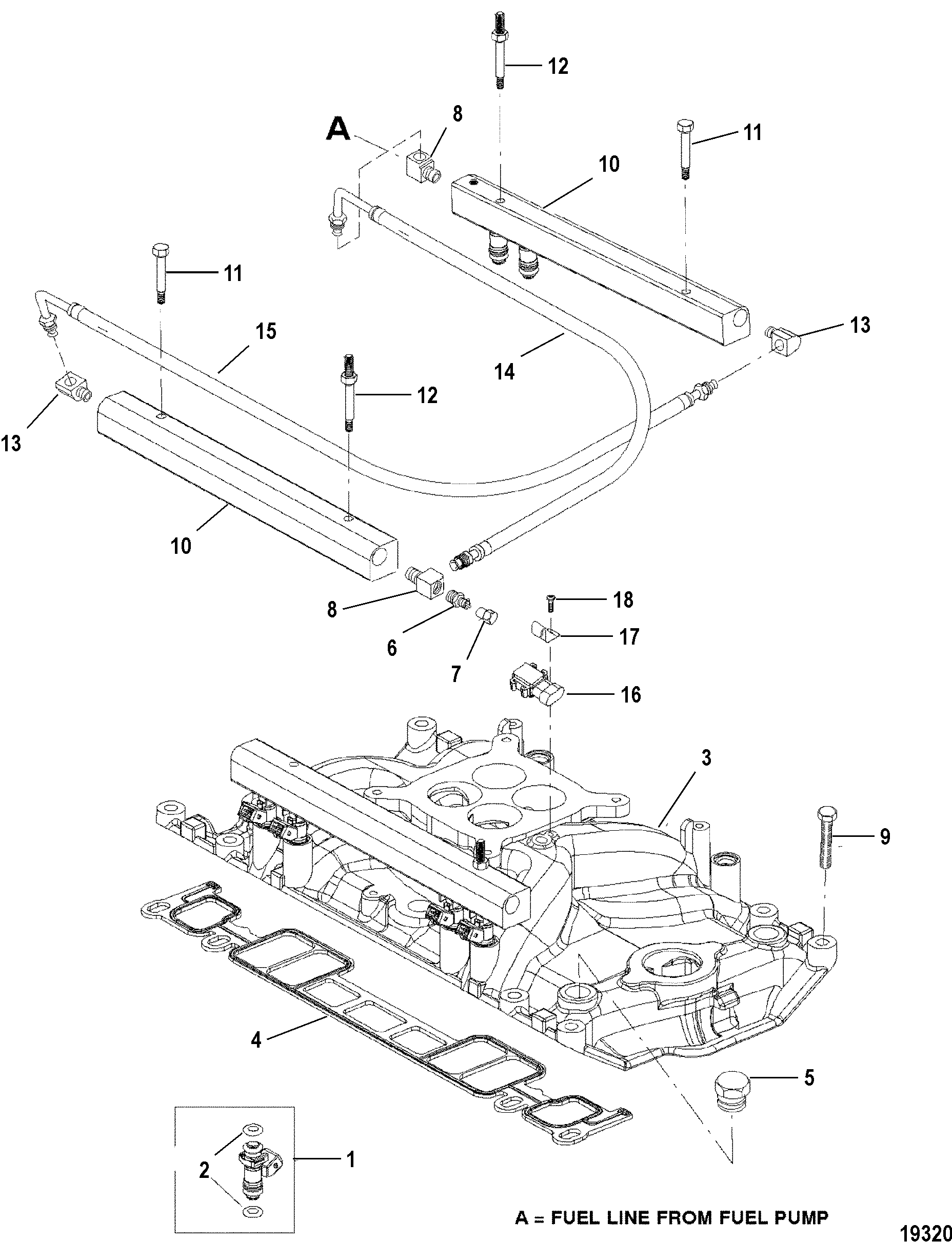

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Blacktrac Transmission
- Closed Cooling System
- Crankshaft And Flywheel
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust System
- Flywheel Housing (With Blacktrac)
- Flywheel Housing (Without Blacktrac)
- Fuel Filter
- Fuel Pump And Fuel Cooler
- Intake Manifold And Fuel Rails
- Intake Plenum And Flame Arrestor
- Mercathode Components
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Pistons And Connecting Rods
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System
- Starter Motor And Alternator
- Water Pump And Front Cover
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 861260T | INJECTOR, Fuel | 8 | 861260 | |||||
| 2 | 25-851889 | O-RING | 16 | 2 | |||||
| 3 | 861422A5 | MANIFOLD ASSEMBLY, Intake | 1 | ||||||
| 4 | 27-807473A1 | 676-9-61213 | GASKET SET | 1 | 2 | ||||
| 5 | 22-860075 | PLUG, Pipe (.500-14) | 3 | ||||||
| 6 | 22-860266 | VALVE | 1 | ||||||
| 7 | 22-805515 | CAP, Shrader Valve - Brass | 1 | ||||||
| 8 | 22-860265 | FITTING | 1 | ||||||
| 9 | 10-808010 | SCREW, (.312-18 x 1.375) | 8 | ||||||
| 10 | 861061T | FUEL RAIL | 2 | This Part is No Longer Available | |||||
| 11 | 10-86885 | SCREW, (.250-20 x 1.500) Stainless Steel | 2 | ||||||
| 12 | 16-845019 | STUD, (.250-20 x 2.750) | 2 | No longer made, limited availability | |||||
| 13 | 22-93385 | FITTING, (90 Degree) | 2 | ||||||
| 14 | 32-861566 | LINE, Fuel (21 IN.) | 1 | 32-861401 | |||||
| 15 | 32-861570 | LINE, Fuel (24 IN.) | 1 | 32-861514 | |||||
| 16 | 861249A1 | SENSOR, MAP | 1 | 861249 | |||||
| 17 | 861198 | CLIP | 1 | ||||||
| 18 | 10-823588 | SCREW, (#8-32 x .250) | 1 | ||||||
| - | 27-75611A98 | GASKET SET, Engine Overhaul | 1 |
