350 Mag MPI Alpha-Bravo - Serial 0L010019 Thru 0L339999 - Engine Mounting

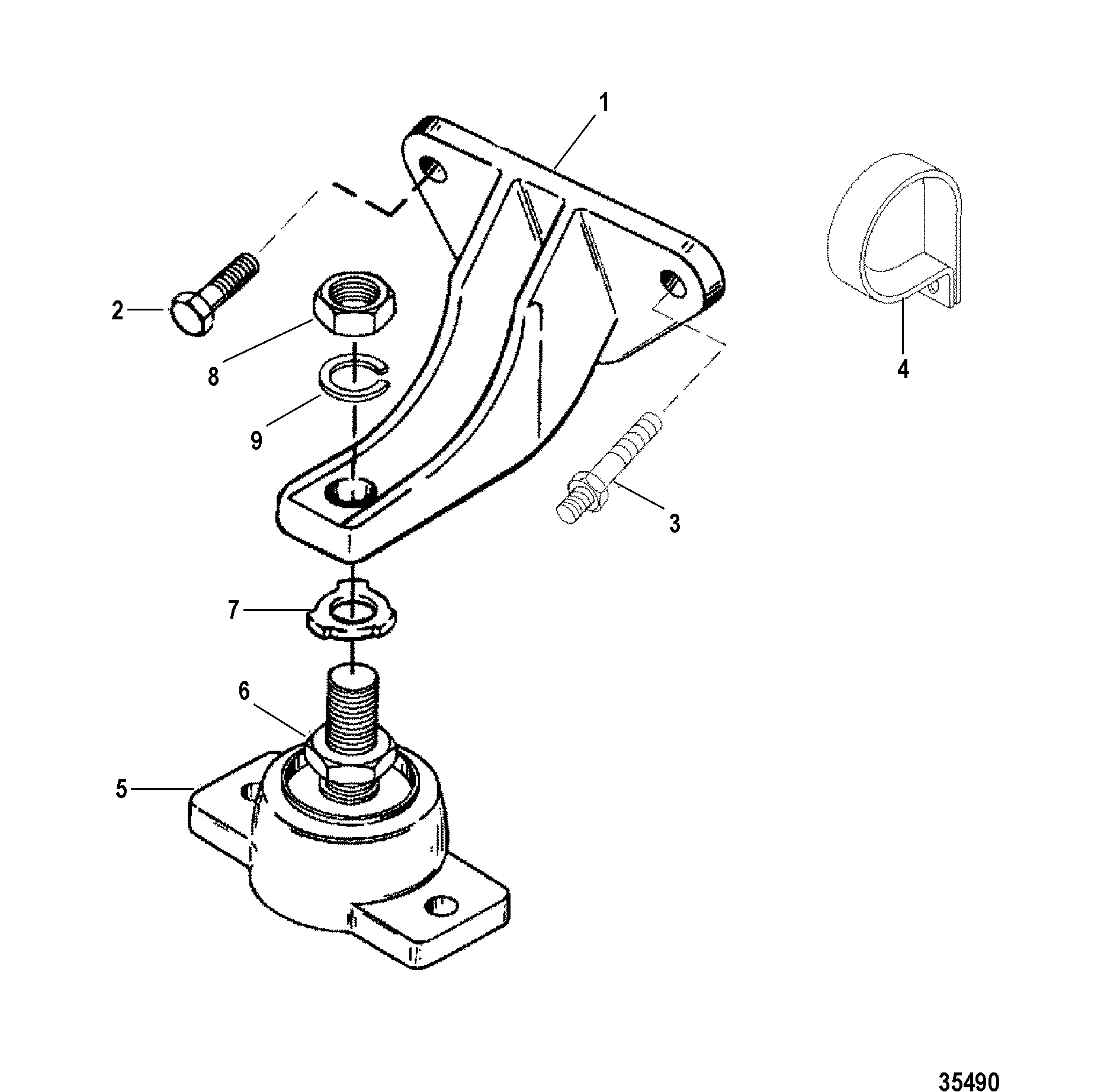

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 79550A1



BRACKET 2
2 10-68101



SCREW, (.375-16 x 1.375) 2

3 16-805357



STUD, (.375-16 x 2.130) 4
4 54-816398



CLIP 1

5 66284A2



BASE ASSEMBLY 2
6 11-20739



NUT, (.750-16) 2
7 14-12657



TAB WASHER 2
8 11-20739



NUT, (.750-16) 2
9 13-68102



LOCKWASHER, (.750) 2
