350 Mag MPI Alpha-Bravo EC - Serial 1A623185 and Up - Engine Mounts
Other Sub-Sections:
- Alternator and Brackets
- Closed Cooling System (Alpha)
- Closed Cooling System (Bravo)
- Closed Cooling System (BRAVO) Sea Pump Hoses
- Closed Cooling System (BRAVO) Sea Pump Hoses (SeaCore)
- Closed Cooling System, Heat Exchanger
- Closed Cooling System, Poppet Valve
- Cool Fuel System, Bravo
- Cylinder Block, Camshaft and Crankshaft
- Cylinder Block, Flywheel Housing and Rear Main Seal
- Cylinder Head Assembly
- Distributor and Ignition Components
- Electrical Components, Digital Throttle and Shift
- Electrical Components, Mechanical Throttle and Shift
- Engine Mounts
- Exhaust Manifold and Elbow
- Exhaust System Components
- Front Cover and Circulating Pump
- Fuel Filter, Alpha
- Fuel Module Components -Bravo
- Fuel Supply Module, Alpha
- Gasket Set Components (27- 75611A03), Cylinder Head
- Gasket Set Components, Engine Overhaul
- Gear Lube Monitor
- Intake Manifold and Fuel Rail
- Jackshaft Main Kit
- Mercathode Components
- Oil Pan and Oil Pump
- Pistons and Connecting Rods
- Remote Oil Filter Assembly
- Rocker Cover
- Sea Water Pump Assembly
- Shift Bracket, Alpha
- Shift Bracket, Bravo
- Shift Bracket, Digital Throttle and Shift
- Standard Cooling System (Alpha), Single and 7 Point Drain
- Standard Cooling System (Bravo), Air, 3 and 7 Point Drain
- Standard Cooling System, Sea Pump Hoses
- Starter Motor
- Steering Components
- Thermostat and Housing, Closed Cooling
- Thermostat and Housing, Standard Cooling
- Throttle Body, Digital Throttle and Shift
- Throttle Body, Mechanical
- Water Distribution Housing

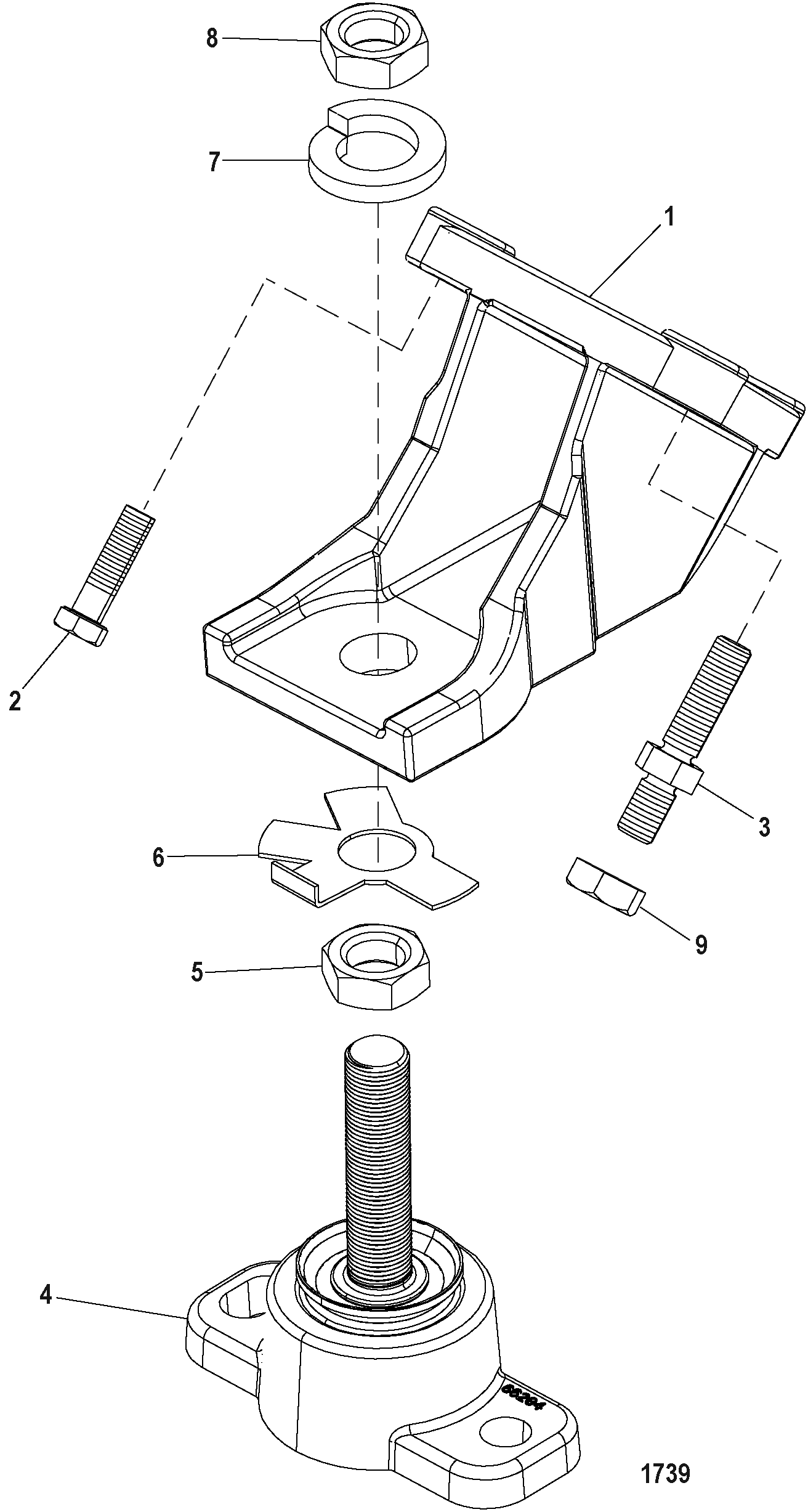

Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
---|---|---|---|---|---|---|
1 | 0000 | OEM: 525-79550A1 | BRACKET Mount | 2 | ||
2 | 0010 | OEM: 525-10-40001195 | SCREW (M10 x 30) | 4 | ||
3 | 0016 | OEM: 525-16-861580 | STUD | 2 | ||
4 | 0000 | OEM: 530-66284A2 | BASE ASSEMBLY | 2 | ||
5 | 0011 | OEM: 525-11-20739 | NUT (.750-16) Jam | 2 | ||
6 | 0014 | OEM: 525-14-12657 | TAB WASHER | 2 | ||
7 | 0013 | OEM: 525-13-68102 | LOCKWASHER (.750) | 2 | ||
8 | 0011 | OEM: 525-11-20739 | NUT (.750-16) Jam | 2 | ||
9 | 0011 | OEM: 525-11-4013610 | NUT (M10) Stainless Steel | 2 |
