350 Mag MPI Alpha-Bravo EC - Serial 1A623185 and Up - Fuel Module Components -Bravo

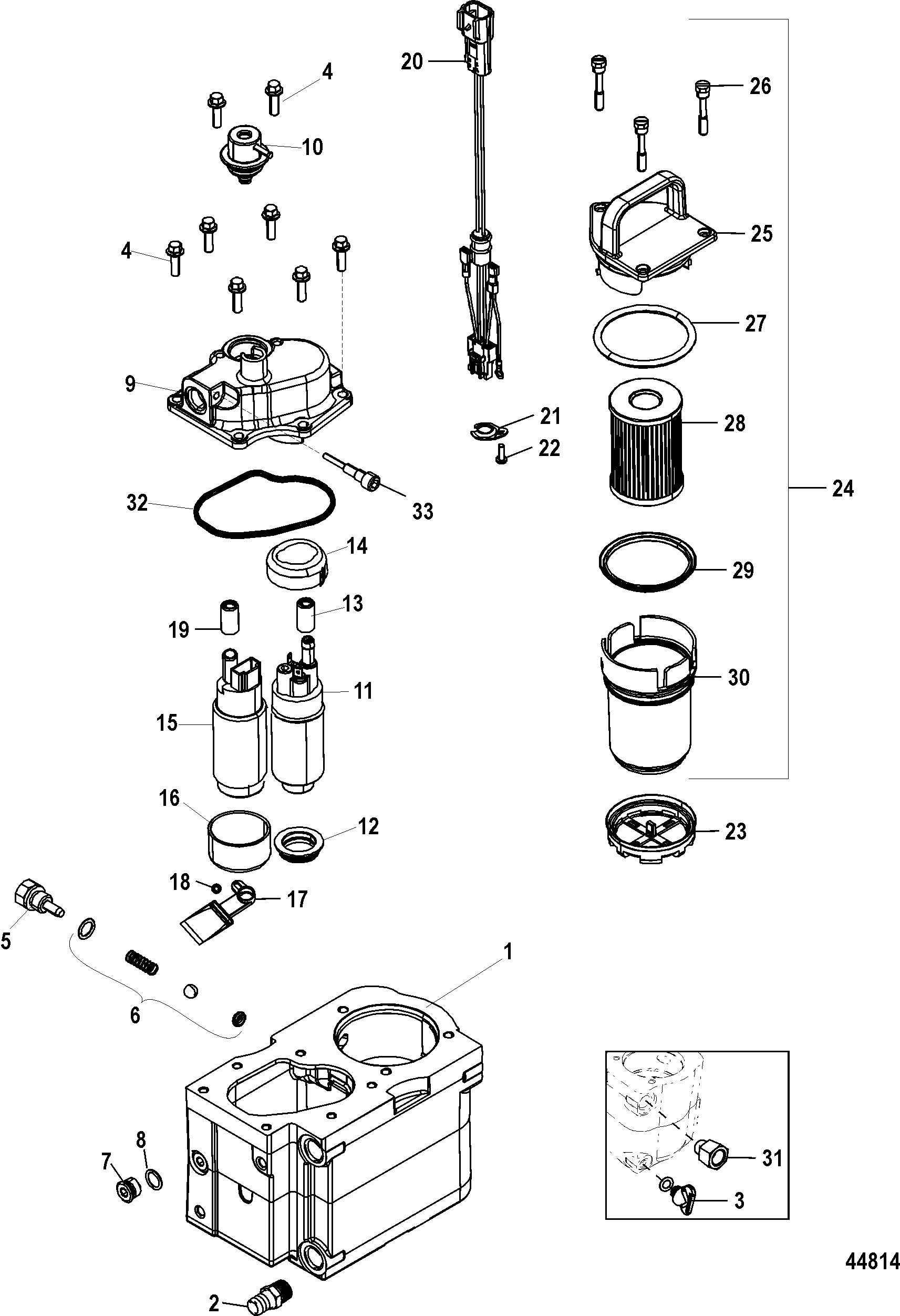

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator and Brackets
- Closed Cooling System (Alpha)
- Closed Cooling System (Bravo)
- Closed Cooling System (BRAVO) Sea Pump Hoses
- Closed Cooling System (BRAVO) Sea Pump Hoses (SeaCore)
- Closed Cooling System, Heat Exchanger
- Closed Cooling System, Poppet Valve
- Cool Fuel System, Bravo
- Cylinder Block, Camshaft and Crankshaft
- Cylinder Block, Flywheel Housing and Rear Main Seal
- Cylinder Head Assembly
- Distributor and Ignition Components
- Electrical Components, Digital Throttle and Shift
- Electrical Components, Mechanical Throttle and Shift
- Engine Mounts
- Exhaust Manifold and Elbow
- Exhaust System Components
- Front Cover and Circulating Pump
- Fuel Filter, Alpha
- Fuel Module Components -Bravo
- Fuel Supply Module, Alpha
- Gasket Set Components (27- 75611A03), Cylinder Head
- Gasket Set Components, Engine Overhaul
- Gear Lube Monitor
- Intake Manifold and Fuel Rail
- Jackshaft Main Kit
- Mercathode Components
- Oil Pan and Oil Pump
- Pistons and Connecting Rods
- Remote Oil Filter Assembly
- Rocker Cover
- Sea Water Pump Assembly
- Shift Bracket, Alpha
- Shift Bracket, Bravo
- Shift Bracket, Digital Throttle and Shift
- Standard Cooling System (Alpha), Single and 7 Point Drain
- Standard Cooling System (Bravo), Air, 3 and 7 Point Drain
- Standard Cooling System, Sea Pump Hoses
- Starter Motor
- Steering Components
- Thermostat and Housing, Closed Cooling
- Thermostat and Housing, Standard Cooling
- Throttle Body, Digital Throttle and Shift
- Throttle Body, Mechanical
- Water Distribution Housing
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 8M0047215 | MODULE KIT, Fuel Pump, Complete | 1 | 864650A13 | |||||
| - | 8M0047215 | MODULE KIT, Fuel Pump, Complete, With Drain Port | 1 | ||||||
| 1 | 8M0047216 | HOUSING, Fuel Module | 1 | 864650A14 | |||||
| 1 | 8M0047216 | HOUSING, Fuel Module, With Drain Port | 1 | ||||||
| 2 | 22-8M2010476 | FITTING, (3/8-18) | 2 | ||||||
| 3 | 22-806608A02 | PLUG ASSEMBLY, (.500-13) Blue, Housing With Drain Port Only | 1 | ||||||
| 4 | 10-892684 | SCREW | 8 | ||||||
| 5 | 892670A01 | CHECK VALVE KIT | 1 | ||||||
| 6 | NSS | NOT SOLD SEPARATE, Check Valve | 1 | This Part is not sold separately | |||||
| 7 | NSS | NOT SOLD SEPARATE, Plug | 1 | This Part is not sold separately | |||||
| 8 | NSS | NOT SOLD SEPARATE, Seal | 1 | This Part is not sold separately | |||||
| 9 | 892677 | COVER, Fuel Module Housing | 1 | ||||||
| 10 | 89268 | REGULATOR | 1 | ||||||
| 11 | 866170A01 | PUMP ASSEMBLY, Fuel - Low Pressure | 1 | ||||||
| 12 | NSS | NOT SOLD SEPARATE, Seal | 1 | This Part is not sold separately 6 | |||||
| 13 | NSS | NOT SOLD SEPARATE, Seal | 1 | This Part is not sold separately 6 | |||||
| 14 | NSS | NOT SOLD SEPARATE, Isolator, Lift Pump | 1 | This Part is not sold separately 6 | |||||
| 15 | 866169T01 | PUMP ASSEMBLY, Fuel | 1 | ||||||
| 16 | NSS | NOT SOLD SEPARATE, Isolator | 1 | This Part is not sold separately 6 | |||||
| 17 | 8M2018790 | FILTER, Pump Suction | 1 | ||||||
| 18 | 54-8M2018792 | CLIP | 1 | ||||||
| 19 | NSS | NOT SOLD SEPARATE, Seal | 1 | This Part is not sold separately 6 | |||||
| 20 | 84-8M0056175 | HARNESS ASSEMBLY | 1 | 84-895013A02 | |||||
| 21 | NSS | NOT SOLD SEPARATE, Retainer | 1 | This Part is not sold separately | |||||
| 22 | NSS | NOT SOLD SEPARATE, Screw | 1 | This Part is not sold separately | |||||
| 23 | 35-892665 | FILTER | 1 | ||||||
| 24 | 892687A02 | CARTRIDGE ASSEMBLY, Fuel Filter | 1 | ||||||
| 25 | NSS | NOT SOLD SEPARATE, Cap, Fuel Filter Cartridge | 1 | This Part is not sold separately | |||||
| 26 | NSS | NOT SOLD SEPARATE, Screw | 3 | This Part is not sold separately | |||||
| 27 | NSS | NOT SOLD SEPARATE, Seal | 1 | This Part is not sold separately 6 | |||||
| 28 | 35-866171A01 | FILTER | 1 | ||||||
| 29 | NSS | NOT SOLD SEPARATE, Seal | 1 | This Part is not sold separately 6 | |||||
| 30 | NSS | NOT SOLD SEPARATE, Cup, Fuel Filter Cartridge | 1 | This Part is not sold separately | |||||
| 31 | 22-88517 | FITTING, Reducing | 1 | ||||||
| 32 | 26-892683 | SEAL | 1 | 6 | |||||
| 33 | 10-866114 | SCREW, (.250-28) Special | 1 |
