350 Mag MPI Alpha-Bravo EC - Serial 1A623185 and Up - Sea Water Pump Assembly

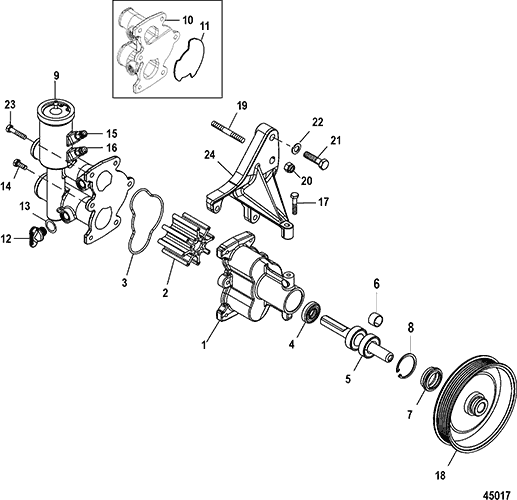

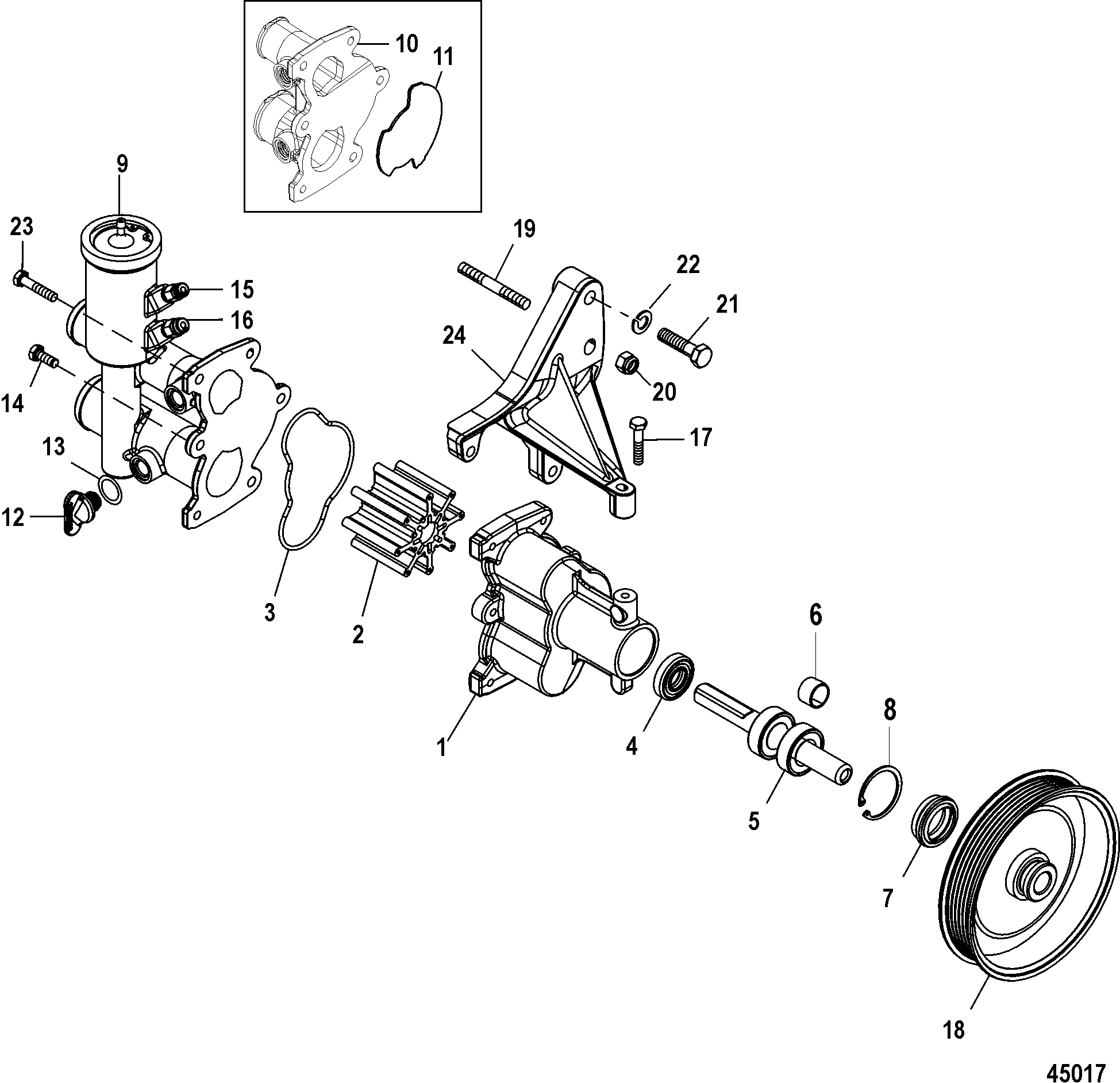

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator and Brackets
- Closed Cooling System (Alpha)
- Closed Cooling System (Bravo)
- Closed Cooling System (BRAVO) Sea Pump Hoses
- Closed Cooling System (BRAVO) Sea Pump Hoses (SeaCore)
- Closed Cooling System, Heat Exchanger
- Closed Cooling System, Poppet Valve
- Cool Fuel System, Bravo
- Cylinder Block, Camshaft and Crankshaft
- Cylinder Block, Flywheel Housing and Rear Main Seal
- Cylinder Head Assembly
- Distributor and Ignition Components
- Electrical Components, Digital Throttle and Shift
- Electrical Components, Mechanical Throttle and Shift
- Engine Mounts
- Exhaust Manifold and Elbow
- Exhaust System Components
- Front Cover and Circulating Pump
- Fuel Filter, Alpha
- Fuel Module Components -Bravo
- Fuel Supply Module, Alpha
- Gasket Set Components (27- 75611A03), Cylinder Head
- Gasket Set Components, Engine Overhaul
- Gear Lube Monitor
- Intake Manifold and Fuel Rail
- Jackshaft Main Kit
- Mercathode Components
- Oil Pan and Oil Pump
- Pistons and Connecting Rods
- Remote Oil Filter Assembly
- Rocker Cover
- Sea Water Pump Assembly
- Shift Bracket, Alpha
- Shift Bracket, Bravo
- Shift Bracket, Digital Throttle and Shift
- Standard Cooling System (Alpha), Single and 7 Point Drain
- Standard Cooling System (Bravo), Air, 3 and 7 Point Drain
- Standard Cooling System, Sea Pump Hoses
- Starter Motor
- Steering Components
- Thermostat and Housing, Closed Cooling
- Thermostat and Housing, Standard Cooling
- Throttle Body, Digital Throttle and Shift
- Throttle Body, Mechanical
- Water Distribution Housing
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | SEI # | Description | Num Req. | Superceded From | Special Notes |
| - | 46-862914T10 | PUMP KIT, Sea Water | 1 | Without Air Fittings | |||||
| - | 46-862914T11 | PUMP KIT, Sea Water | 1 | With Air Fittings | |||||
| 1 | 46-862914A13 | HOUSING ASSEMBLY, Impeller | 1 | ||||||
| 2 | 47-8M0104229 | IMPELLER | 1 | ||||||
| 3 | 8M2021987 | O-RING, Formed, Also included with Reference 8 and 9 | 1 | ||||||
| - | 8M0050018 | DRIVESHAFT ASSEMBLY KIT | 1 | ||||||
| 4 | 26-8M2001645 | SEAL, Oil | 1 | ||||||
| 5 | 8M0050018 | DRIVESHAFT ASSEMBLY | 1 | 862235A1 | |||||
| 6 | NSS | NOT SOLD SEPARATE, SPACER | 1 | This Part is not sold separately | |||||
| 7 | 26-862040 | SEAL, Lip | 1 | ||||||
| 8 | NSS | NOT SOLD SEPARATE, SNAP RING | 1 | This Part is not sold separately | |||||
| 9 | 863674A05 | COVER KIT, Impeller Housing | 1 | With Air Fittings | |||||
| 10 | 862776A01 | COVER KIT, Impeller Housing | 1 | Without Air Fittings | |||||
| 11 | 8M2014176 | PLATE, Wear | 1 | ||||||
| 12 | 22-806608A02 | PLUG ASSEMBLY, (.500-13) Blue | 2 | ||||||
| 13 | 25-26802 | 602-95-260-03 | SEAL | 2 | 25-8M2000926 | ||||
| 14 | 10-4000328 | SCREW, (M6 x 16) | 6 | ||||||
| 15 | 22-863718 | FITTING, Gray - Straight, Male Air | 1 | (.1562) Component of 46-862914T11 | |||||
| 16 | 22-863719 | FITTING, Orange - Straight, Male Air | 1 | (.1875) Component of 46-862914T11 | |||||
| 17 | 10-4000331 | SCREW, (M6 x 30) | 1 | ||||||
| 18 | 862351T | PULLEY | 1 | ||||||
| 19 | 16-863853 | STUD | 2 | ||||||
| 20 | 11-82671112 | NUT, (.375-16) | 2 | ||||||
| 21 | 10-32132 | SCREW, (.375-16 x 1.750) | 1 | ||||||
| 22 | 13-35048 | LOCKWASHER, (.375) | 1 | ||||||
| 23 | 10-4000331 | SCREW, (M6 x 30) | 2 | ||||||
| 24 | 865143T01 | BRACKET, Sea Water Pump | 1 |
