350 Mag Alpha (4 BBL) GM V-8 1997 - Serial 0K001527 Thru 0K999999 - Carburetor (Mercarb - 2 Barrel)

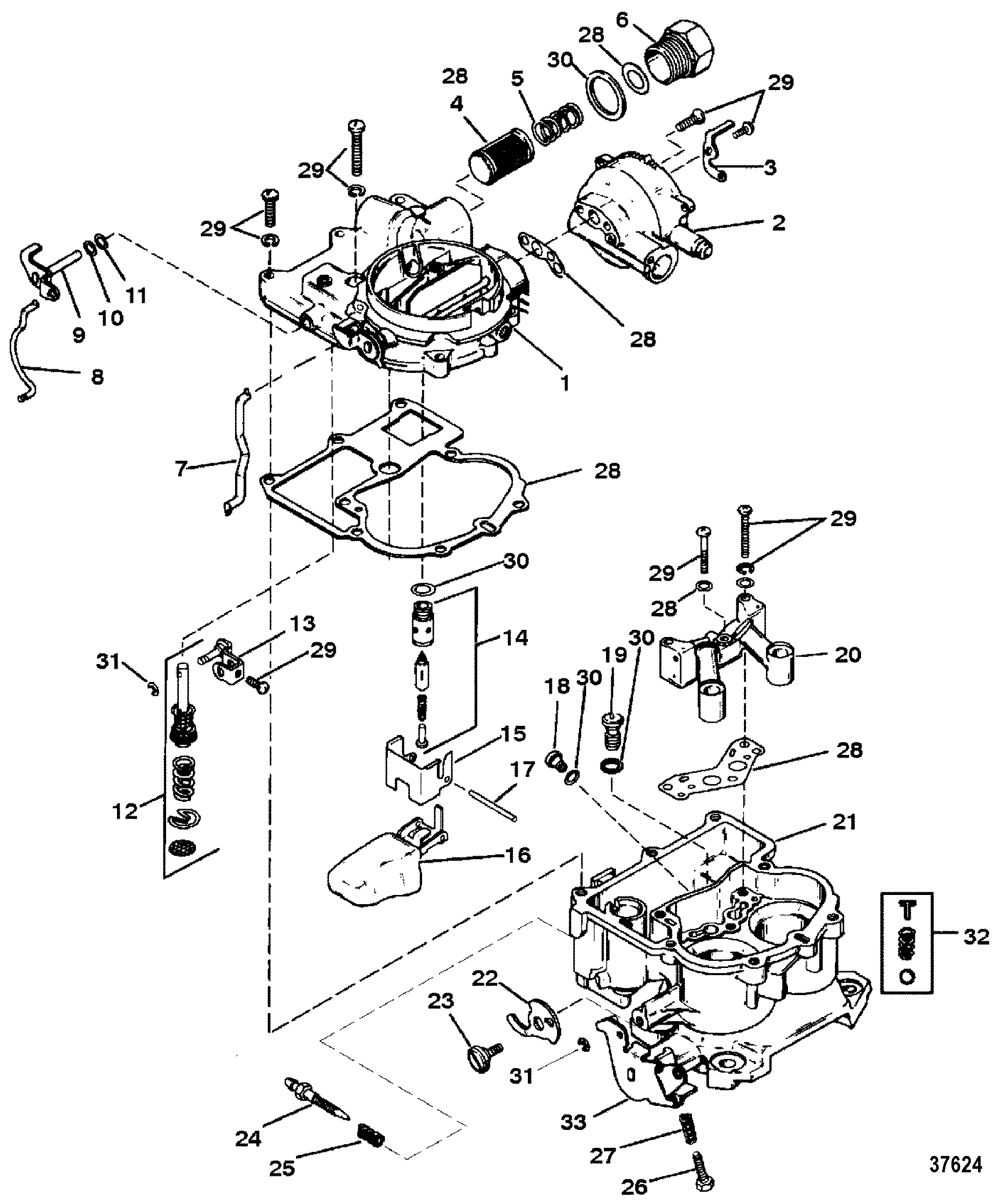

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
- 3310-807312A1   676-9-34013     CARBURETOR ASSEMBLY 1 3310-806082A2
1 N.S.S.         Not Sold Separate, AIR HORN 1
ALWAYS CHECK PART NUMBER STAMPED ON CARBURETOR BEFORE ORDERING REPLACEMENT PARTS
2 N.S.S.         Not Sold Separate, CHOKE HOUSING 1
ALWAYS CHECK PART NUMBER STAMPED ON CARBURETOR BEFORE ORDERING REPLACEMENT PARTS
3 3302-9037         ARM, Choke 1

4 35-53336Q   676-9-37823 700-24840   STRAINER 1 35-53336
5 3302-9032         SPRING 1

6 3302-879194018         CONNECTOR 1 3302-9034
7 3302-9042         ROD, Choke 1

8 3302-810920         ROD, Accelerator Pump 1   This Part is No Longer Available (MERC I.D. #9670A1) No longer made, limited availability
8 3302-8109201         ROD, Accelerator Pump 1 3302-809479 (MERC I.D. #06082A1)
9 3302-823725         LEVER 1

10 3302-9039         WASHER 2

11 3302-810919         WASHER 1

12 3302-96551         PUMP KIT, Accelerator 1 3302-9655
13 3302-810916         ARM 1

14 3302-804689     700-40740   SEAT KIT, Inlet 1 3302-9029
15 3302-803854         PLATE, Baffle 1 3302-9038
16 3302-9031   676-9-36903     FLOAT 1

17 3302-90301         PIN, Float 1 3302-9030
18 3302-811856         MAIN JET (1.85MM) 2   This Part is No Longer Available
19 3302-809481         POWER JET (1.00MM) 1   This Part is No Longer Available No longer made, limited availability
20 3302-808706         VENTURI (463) 1   This Part is No Longer Available
21 N.S.S.         Not Sold Separate, CARBURETOR BODY 1
ALWAYS CHECK PART NUMBER STAMPED ON CARBURETOR BEFORE ORDERING REPLACEMENT PARTS
22 3302-9048         CAM 1

23 3302-9049         SHAFT 1

24 3302-9052         SCREW 1

25 3302-9053         SPRING 1

26 3302-9060         SCREW 1

27 3302-9054         SPRING 1

28 3310-810929004         GASKET SET 1 3302-9061
29 3302-810930         SCREW KIT 1

30 3302-9044         PACKING SET 1

31 3302-808675         CLIP, Spring 2
32 3302-809520         CHECK BALL KIT 1
