350 Mag Alpha (4 BBL) GM V-8 1997 - Serial 0K001527 Thru 0K999999 - Standard Cooling System (Alpha Engines)

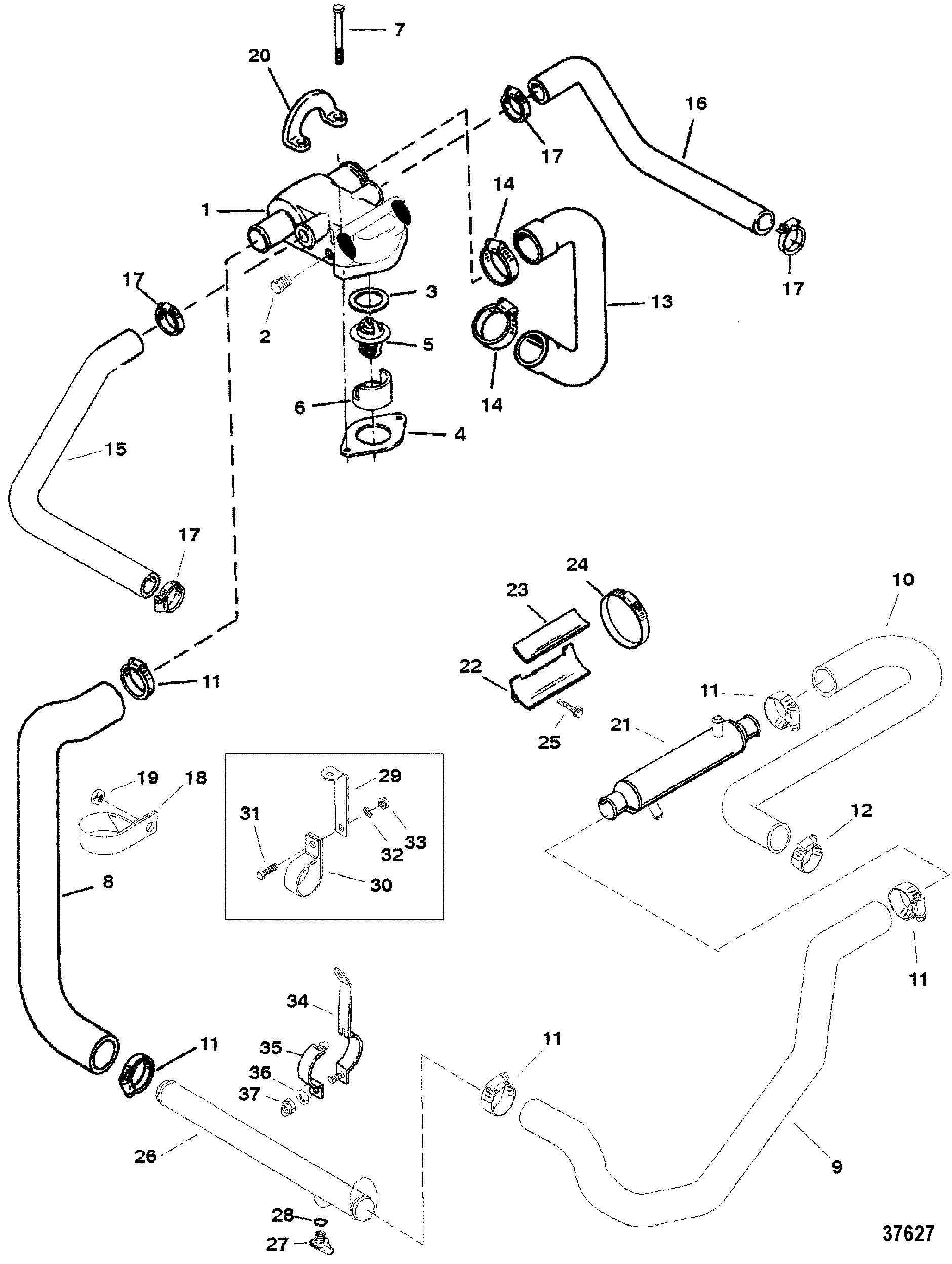

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator
- Carburetor (Mercarb - 2 Barrel)
- Carburetor (Weber)
- Carburetor-Throttle Linkage (2 Barrel)
- Carburetor-Throttle Linkage (4 Barrel)
- Crankshaft And Flywheel
- Cylinder Block And Camshaft (350 C.I.D. Flat Lifters)
- Cylinder Block And Camshaft (350 C.I.D. Roller Lifters)
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Engine Mounting
- Exhaust Manifold And Cast Iron Exhaust Elbow
- Exhaust Manifold And Stainless Steel Exhaust Elbow
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Gasket Set, Overhaul
- Intake Manifold And Front Cover
- Mercathode Components
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Pistons And Connecting Rods
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump Assembly (Use With Bravo Engines)
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System (Alpha Engines)
- Standard Cooling System (Bravo Engines)
- Starter Motor
- Starter Motor And Alternator
- Swiss Emissions Parts (BSO1 And SAV1)
- Wiring Harness And Electrical Components
| Ref. | OEM Part # | SEI # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 860256A3 | HOUSING ASSEMBLY, Thermostat | 1 | 860256A1 | 5.7L/LX ALPHA | ||||
| 1 | 806235A1 | HOUSING ASSEMBLY, Thermostat | 1 | ||||||
| 2 | 22-32803 | 700-21894 | PLUG, Pipe (.375-18) Brass | 2 | |||||
| 3 | 27-806871 | GASKET | 1 | 3 | |||||
| 4 | 27-530451 | GASKET | 1 | 3 | |||||
| 5 | 807252T2 | THERMOSTAT, 71°C (160°F) | 1 | 8072522 | |||||
| 6 | 23-806922 | SLEEVE | 1 | ||||||
| 7 | 10-98508 | SCREW, (.375-16 x 3.00) | 2 | 5.7L/LX ALPHA | |||||
| 7 | 10-98794 | 602-98-102-35 | 676-9-78129 | 700-28300 | 525-10-98794 | SCREW, (.375-16 x 1.00) | 2 | 350 MAGNUM ALPHA | |
| 8 | 32-808033 | HOSE, Molded | 1 | ||||||
| 9 | 32-8600891 | HOSE, Molded | 1 | 32-860089 | |||||
| 10 | 32-807661 | HOSE | 1 | ||||||
| 11 | 54-815504222 | CLAMP, Worm Gear (1.98 DIameter) | 5 | ||||||
| 12 | 54-815504212 | CLAMP, Worm Gear | 1 | ||||||
| 13 | 32-861590A05 | HOSE, Molded | 1 | 32-87108 | |||||
| 14 | 54-815504232 | CLAMP, Worm Gear (2.50 Diameter) | 2 | ||||||
| 15 | 32-860144 | HOSE, Thermostat Housing To Port Exhaust Manifold | 1 | ||||||
| 16 | 32-807697 | HOSE, Thermostat Housing to Starboard Manifold | 1 | ||||||
| 17 | 54-815504220 | CLAMP, Worm Gear | 4 | ||||||
| 18 | 54-47715 | CLIP | 1 | ||||||
| 19 | 11-29250 | NUT, (.312-24) | 1 | ||||||
| 20 | 12552 | LIFTING EYE | 1 | 5.7L/LX ALPHA | |||||
| 21 | <861554T01 | COOLER, Power Steering Oil | 1 | 807292T | |||||
| 22 | 805546A2 | BRACKET, Oil Cooler | 1 | ||||||
| 23 | 772233 | PAD | 1 | ||||||
| 24 | 54-815504224 | CLAMP, Worm Gear | 1 | ||||||
| 25 | 10-816585 | SCREW, (.375-18 x .875) | 1 | ||||||
| 26 | 860315A1 | TUBE, Hose Extender | 1 | ||||||
| 27 | 22-806608A02 | PLUG KIT, (.500-13) Royal Blue | 2 | 22-806608A1 | |||||
| 28 | 25-32509 | QUAD RING | 2 | 25-806609 | |||||
| 29 | 48134 | BRACKET | 1 | DESIGN I | |||||
| 30 | 54-97862 | CLAMP | 1 | This Part is No Longer Available DESIGN I | |||||
| 31 | 10-54630 | SCREW, (.312-24 x .625) | 1 | DESIGN I No longer made, limited availability | |||||
| 32 | 13-39107 | 700-21496 | LOCKWASHER, (.312-24) | 1 | DESIGN I | ||||
| 33 | 11-22053 | NUT, (.312-24) | 1 | DESIGN I | |||||
| 34 | 860418T | BRACKET | 1 | DESIGN II | |||||
| 35 | 860417T | CLAMP | 1 | DESIGN II | |||||
| 36 | 12-35462 | WASHER, (.2656 x .625 x .0625) Stainless Steel | 1 | DESIGN II | |||||
| 37 | 11-8267088 | NUT, (.250-20) | 1 | 11-72008 | DESIGN II | ||||
| - | 27-806871A96 | GASKET SET, Overhaul | 1 |
