350 Mag Alpha (4 BBL) GM V-8 1997 - Serial 0K001527 Thru 0K999999 - Cylinder Block And Camshaft (350 C.I.D. Roller Lifters)

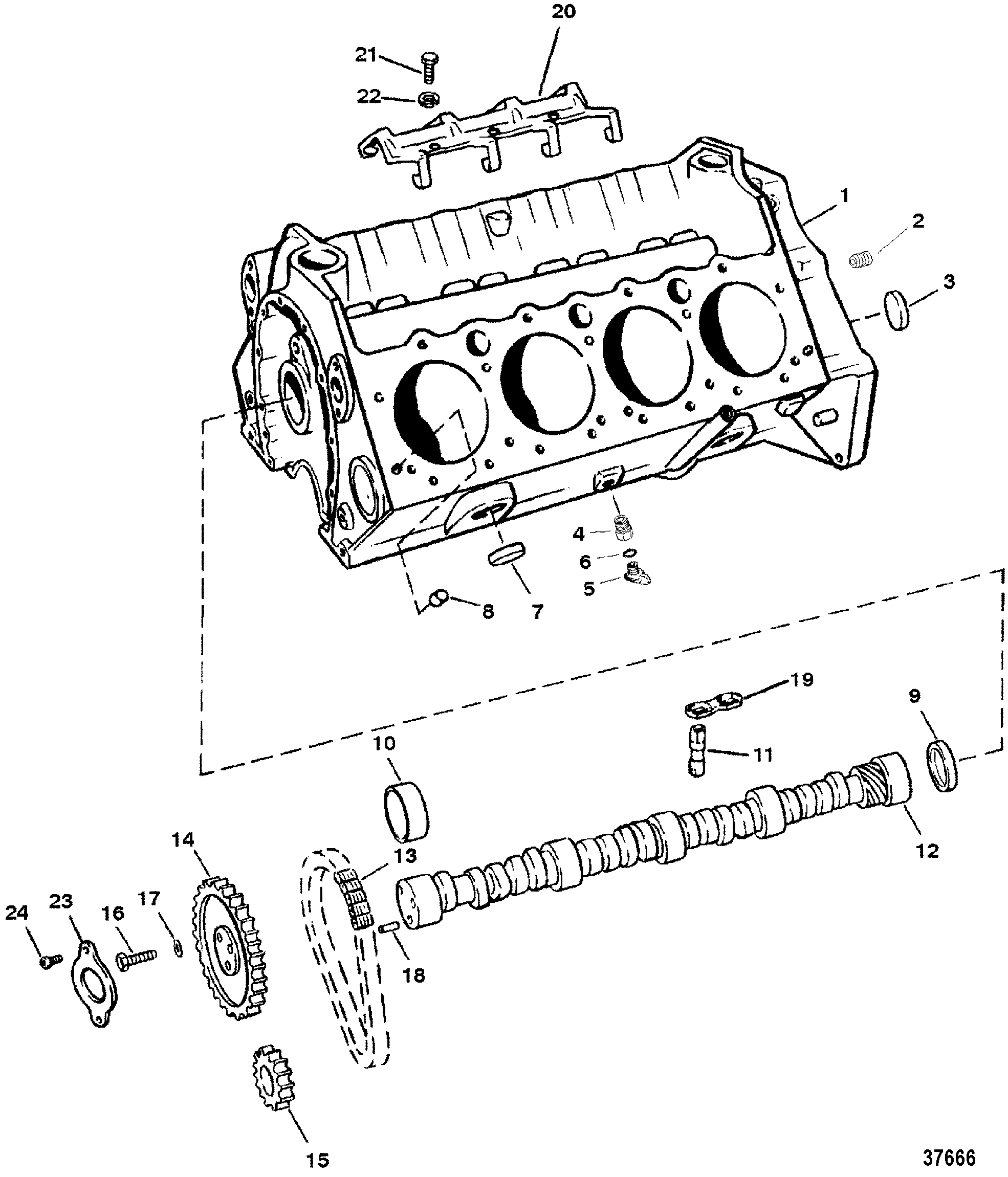

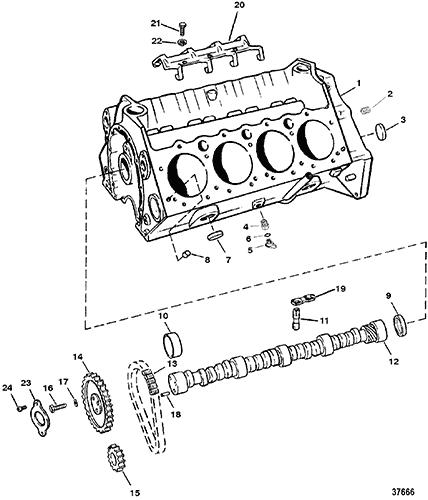

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator
- Carburetor (Mercarb - 2 Barrel)
- Carburetor (Weber)
- Carburetor-Throttle Linkage (2 Barrel)
- Carburetor-Throttle Linkage (4 Barrel)
- Crankshaft And Flywheel
- Cylinder Block And Camshaft (350 C.I.D. Flat Lifters)
- Cylinder Block And Camshaft (350 C.I.D. Roller Lifters)
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Engine Mounting
- Exhaust Manifold And Cast Iron Exhaust Elbow
- Exhaust Manifold And Stainless Steel Exhaust Elbow
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Gasket Set, Overhaul
- Intake Manifold And Front Cover
- Mercathode Components
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Pistons And Connecting Rods
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump Assembly (Use With Bravo Engines)
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System (Alpha Engines)
- Standard Cooling System (Bravo Engines)
- Starter Motor
- Starter Motor And Alternator
- Swiss Emissions Parts (BSO1 And SAV1)
- Wiring Harness And Electrical Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | NSS | NOT SOLD SEPARATE, CYLINDER BLOCK ASSEMBLY | 1 | This Part is not sold separately (Order Long Block Below) 1 | |||||
| 2 | 22-48340 | PLUG, (.250-18 x .41) | 3 | ||||||
| 3 | 19-816565 | PLUG, Pipe(.468) | 5 | ||||||
| 4 | 22-860088 | BUSHING | 2 | ||||||
| 5 | 22-806608A02 | PLUG KIT, (.500-13) Royal Blue | 2 | 22-806608A1 | |||||
| 6 | 25-32509 | QUAD RING | 2 | 25-806609 | |||||
| 7 | 19-34270 | EXPANSION PLUG, (1.625) | 8 | ||||||
| 8 | 17-35465 | PIN, Dowel (.312) | 4 | ||||||
| 9 | 22-72640 | PLUG, Expansion (REAR CAMSHAFT) | 1 | ||||||
| 10 | 23-85674 | BEARING SET | 1 | ||||||
| 11 | 17340T1 | LIFTER, Roller | 16 | 173401 | |||||
| 12 | 431-811658 | CAMSHAFT | 1 | ||||||
| 13 | 17161T | CHAIN, Timing | 1 | 17161 | |||||
| 14 | 43-8116591 | SPROCKET, Camshaft | 1 | ||||||
| 15 | 43-17160 | SPROCKET, Crankshaft | 1 | ||||||
| 16 | 10-845942 | SCREW, (.312-18 x .750) | 3 | 10-35339 | |||||
| 17 | 12-848136 | WASHER, (.328 x .680 x .190) | 3 | ||||||
| 18 | 17-843378 | PIN, Dowel (1/4 n. Diameter) | 1 | 17-35312 | |||||
| 19 | 17341T | GUIDE, Lifter | 8 | 17341 | |||||
| 20 | 811662 | RETAINER, Lifter Guide | 1 | ||||||
| 21 | 10-34500 | SCREW, (.312-18 x .625) | 3 | ||||||
| 22 | 12-811664 | WASHER, (.3125 Inch) | 3 | This Part is No Longer Available | |||||
| 23 | 845941 | RETAINER | 1 | 811663 | |||||
| 24 | 10-17343 | SCREW, (.250-20 x .500) | 2 | No longer made, limited availability | |||||
| - | 807447R5 | MARINE LONG BLOCK ENGINE | 1 | 860183A1 | (2 BBL. CARBURETOR) 5 | ||||
| - | 807447R5 | LONGBLOCK ASSEMBLY | 1 | 807447A1 | (4 BBL. CARBURETOR) | ||||
| - | 92-809825 | RTV SILICONE, (3 Ounce Tube) Metallic Blue (WHERE APPLICABLE) | 1 | ||||||
| - | 34227Q02 | SEALING COMPOUND, (16 Ounce) (WHERE APPLICABLE) | 1 | 92-342271 |
