5.7L Bravo EFI (TBI) GM 350 V-8 1995 - Serial 0F225560 Thru 0F752399 - Distribitor And Ignition Components

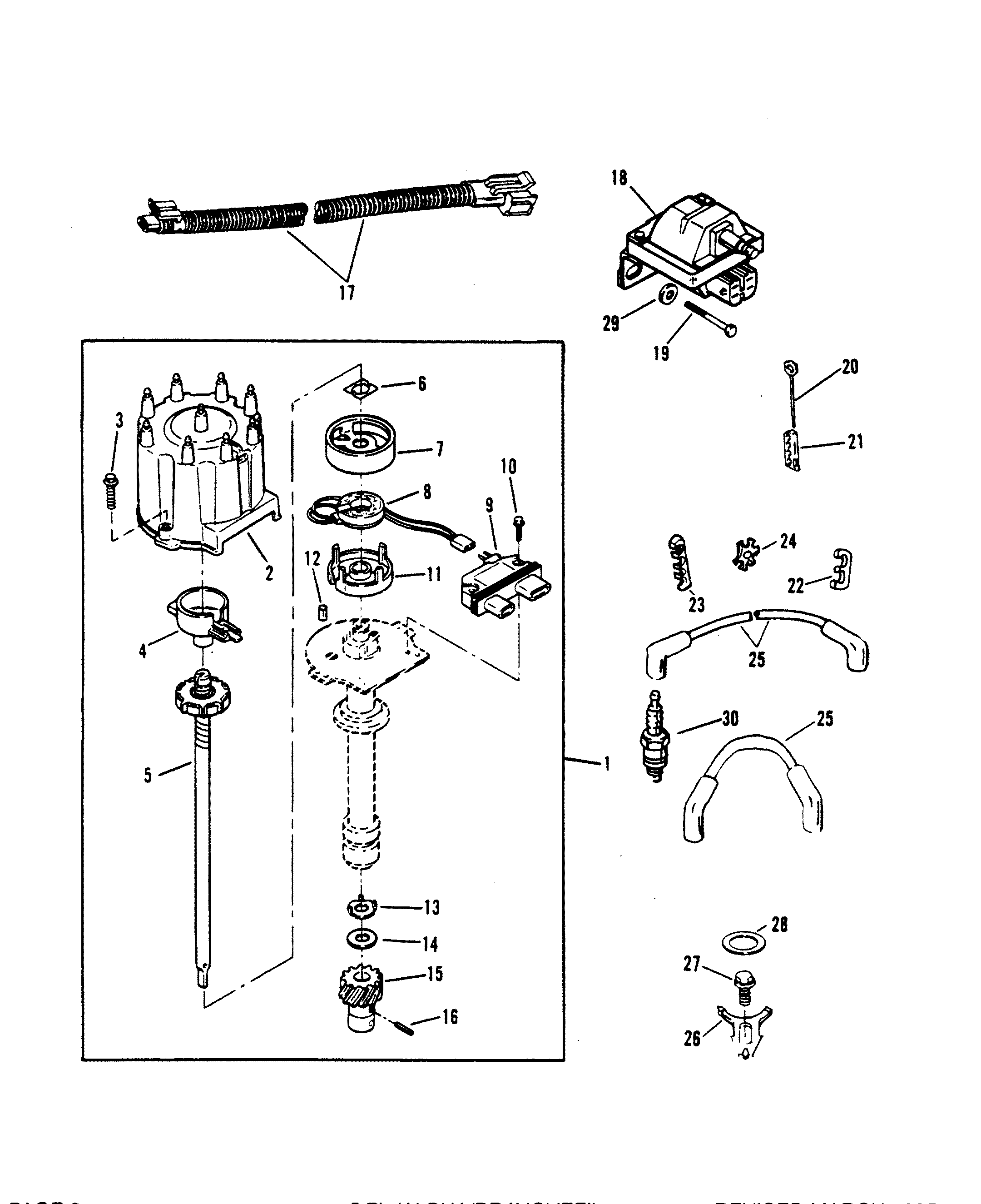

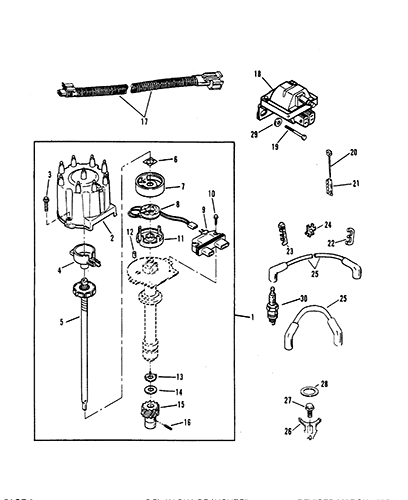

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Crankshaft And Flywheel
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distribitor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow (Alpha)
- Exhaust Manifold And Exhaust Elbow (Bravo)
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Mercathode Components
- Miscellaneous Parts and Accessories
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Pistons And Conn. Rods
- Power Steering Components
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket (Alpha)
- Shift Bracket (Bravo)
- Starter Motor
- Starter Motor And Alternator
- Thermostat Housing (Standard Cooling)
- Throttle Body
- Throttle Linkage
- Vapor Separator Tank
- Vapor Separator Tank And Fuel Lines
- Wiring Harness (EFI) (Illustration Only)
- Wiring Harness (Engine) (Illustration Only)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 805222A1 | DISTRIBUTOR ASSEMBLY | 1 | ||||||
| 2 | 808483T3 | 676-9-29411 |
700-71400 |
CAP | 1 | 808483 | |||
| 3 | 10-808491 | SCREW | 2 | This Part is No Longer Available | |||||
| 4 | 8M6001253 | 700-71100 |
ROTOR | 1 | 808484 | ||||
| 5 | 808485T | SHAFT AND MAGNET | 1 | 808485 | This Part is No Longer Available | ||||
| 6 | 808487 | RETAINER | 1 | This Part is No Longer Available | |||||
| 7 | 808486 | SHIELD | 1 | This Part is No Longer Available | |||||
| 8 | 811639T | 700-72130 |
COIL | 1 | 811639 | ||||
| 9 | 811637001 | MODULE | 1 | 811637 | |||||
| 10 | 10-811638 | SCREW | 2 | This Part is No Longer Available | |||||
| 11 | 811641 | POLE PIECE | 1 | ||||||
| 12 | 17-808488 | PIN | 1 | This Part is No Longer Available | |||||
| 13 | 12-46350 | WASHER | 1 | This Part is No Longer Available | |||||
| 14 | 12-808489 | WASHER | 1 | ||||||
| 15 | 43-808490 | DRIVE GEAR | 1 | ||||||
| 16 | 17-34109 | PIN | 1 | This Part is No Longer Available | |||||
| 17 | 84-817376T01 | HARNESS | 1 | 84-817376T | |||||
| 18 | 806673T1 | 700-72114 |
IGNITION COIL | 1 | 806673T | ||||
| 19 | 10-86750 | SCREW | 2 | ||||||
| 20 | 16-90096A1 | STUD ASSEMBLY | 2 | ||||||
| 21 | 54-72821 | RETAINER | 2 | ||||||
| 22 | 54676 | RETAINER (2 WIRE) | 2 | ||||||
| 23 | 32783 | RETAINER (3 WIRE) | 2 | ||||||
| 24 | 32784 | RETAINER (4 WIRE) | 2 | ||||||
| 25 | 84-816608Q70 | SPARK PLUG WIRE KIT | 1 | 84-816608A70 | |||||
| 26 | 52185 | CLAMP | 1 | ||||||
| 27 | 10-805559 | SCREW | 1 | ||||||
| 28 | 27-344863 | GASKET | 1 | 2 | |||||
| 29 | 12-20084 | 700-21664 |
WASHER | 2 | |||||
| 30 | 33-898264001 | SPARK PLUG | 8 | 33-59571 |
