5.7L Bravo EFI (TBI) GM 350 V-8 1995 - Serial 0F225560 Thru 0F752399 - Electrical Box And Components

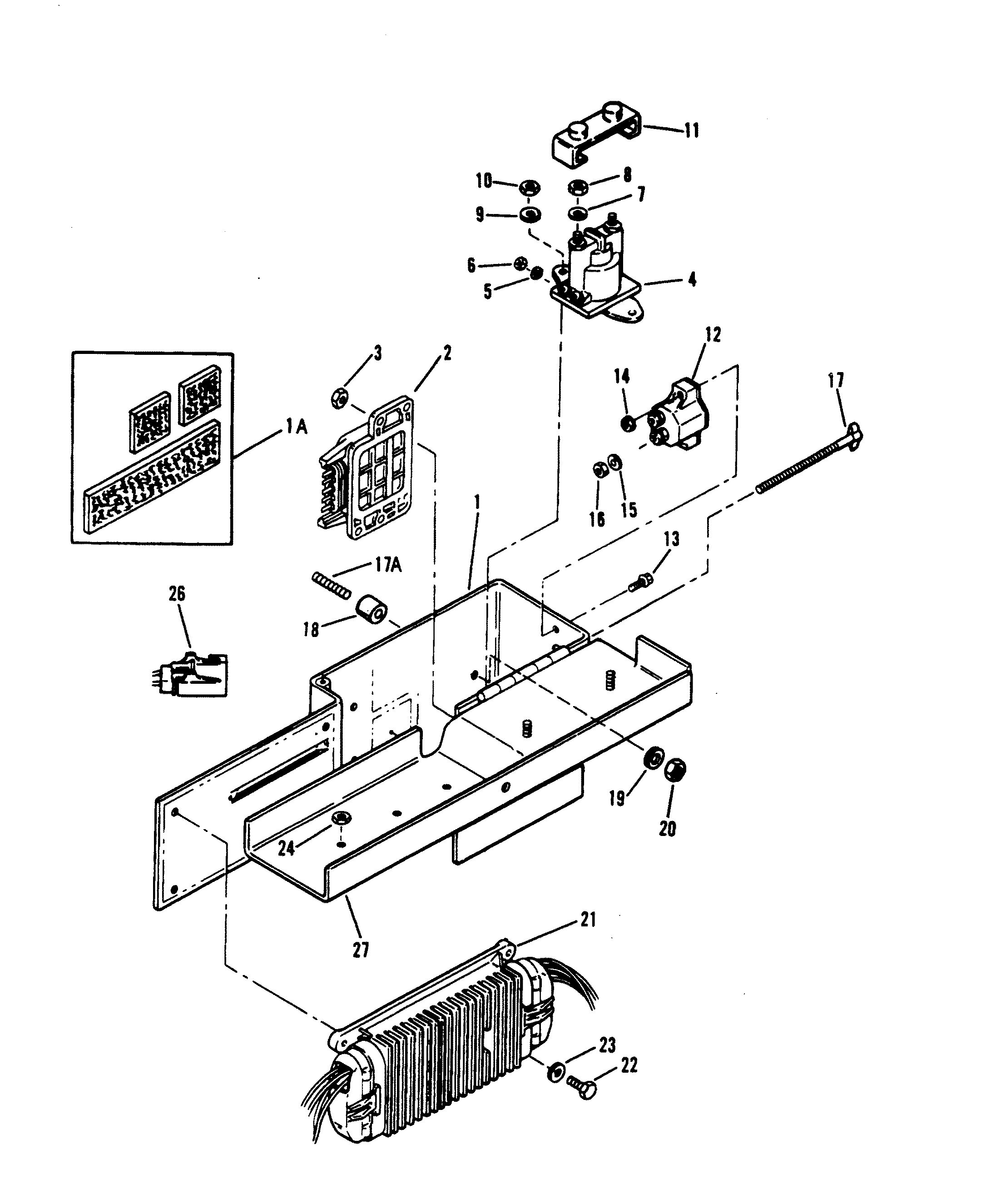

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Crankshaft And Flywheel
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distribitor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow (Alpha)
- Exhaust Manifold And Exhaust Elbow (Bravo)
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Mercathode Components
- Miscellaneous Parts and Accessories
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Pistons And Conn. Rods
- Power Steering Components
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket (Alpha)
- Shift Bracket (Bravo)
- Starter Motor
- Starter Motor And Alternator
- Thermostat Housing (Standard Cooling)
- Throttle Body
- Throttle Linkage
- Vapor Separator Tank
- Vapor Separator Tank And Fuel Lines
- Wiring Harness (EFI) (Illustration Only)
- Wiring Harness (Engine) (Illustration Only)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 807323A5 | ELECTRICAL BOX | 1 | 805439A9 | |||||
| 1A | 806762A1 | VELCRO KIT | 1 | ||||||
| 2 | 806611T | KNOCK MODULE | 1 | ||||||
| 3 | 11-64015 | NUT | 1 | ||||||
| 4 | 89-96054T | STARTER SOLENOID | 1 | 89-96054 | |||||
| 5 | 13-26995 | 700-72390 |
LOCKWASHER (#8) | 2 | |||||
| 6 | 11-26419 | NUT (8-32) | 2 | ||||||
| 7 | 13-26992 | LOCKWASHER (1/4") | 2 | ||||||
| 8 | 11-94330 | NUT (1/4-20) | 2 | ||||||
| 9 | 12-35462 | WASHER | 2 | ||||||
| 10 | 11-64015 | NUT | 2 | ||||||
| 11 | 85-97861 | INSULATOR | 1 | ||||||
| 12 | 88-11178A01 | CIRCUIT BREAKER | 1 | 88-11178 | This part is the replacement for 11178A01 however the mounting hole will need to be enlarged to make it work. | ||||
| 13 | 10-45862 | SCREW | 2 | ||||||
| 14 | 11-61356 | NUT | 2 | ||||||
| 15 | 13-26996 | LOCKWASHER | 2 | ||||||
| 16 | 11-68219 | NUT | 2 | ||||||
| 17 | 805615A2 | THUMB SCREW | 1 | This Part is No Longer Available | |||||
| 17A | 10-24323 | SCREW | 3 | ALPHA | |||||
| 18 | 23-806981 | SPACER | 3 | ALPHA | |||||
| 18 | 23-92152T | SPACER | 3 | 23-92152 | BRAVO | ||||
| 19 | 12-35462 | WASHER | 3 | ||||||
| 20 | 11-64015 | NUT | 3 | ||||||
| 21 | 806720T7 | ELECTRONIC CONTROL MODULE | 1 | 806720T3 | |||||
| 22 | 10-54615 | SCREW | 4 | ||||||
| 23 | 12-20533 | WASHER | 4 | ||||||
| 26 | 88-804642 | SPARE FUSE (15 AMP) | 1 | 805704 | No longer made, limited availability | ||||
| 26 | 88-804641 | SPARE FUSE (10 AMP) | 1 | 805703 | |||||
| 27 | 805439T3 | ELECTRICAL COVER | 1 |
