5.7L Bravo EFI (TBI) GM 350 V-8 1995 - Serial 0F225560 Thru 0F752399 - Intake Manifold And Front Cover

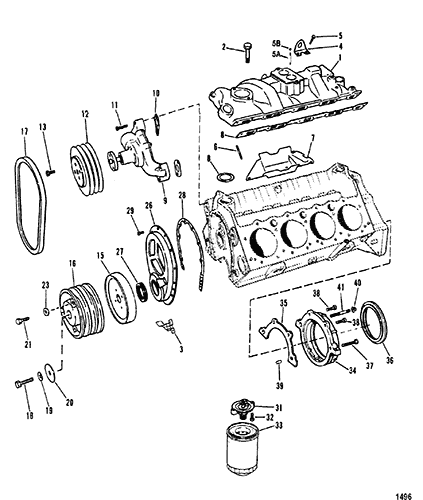

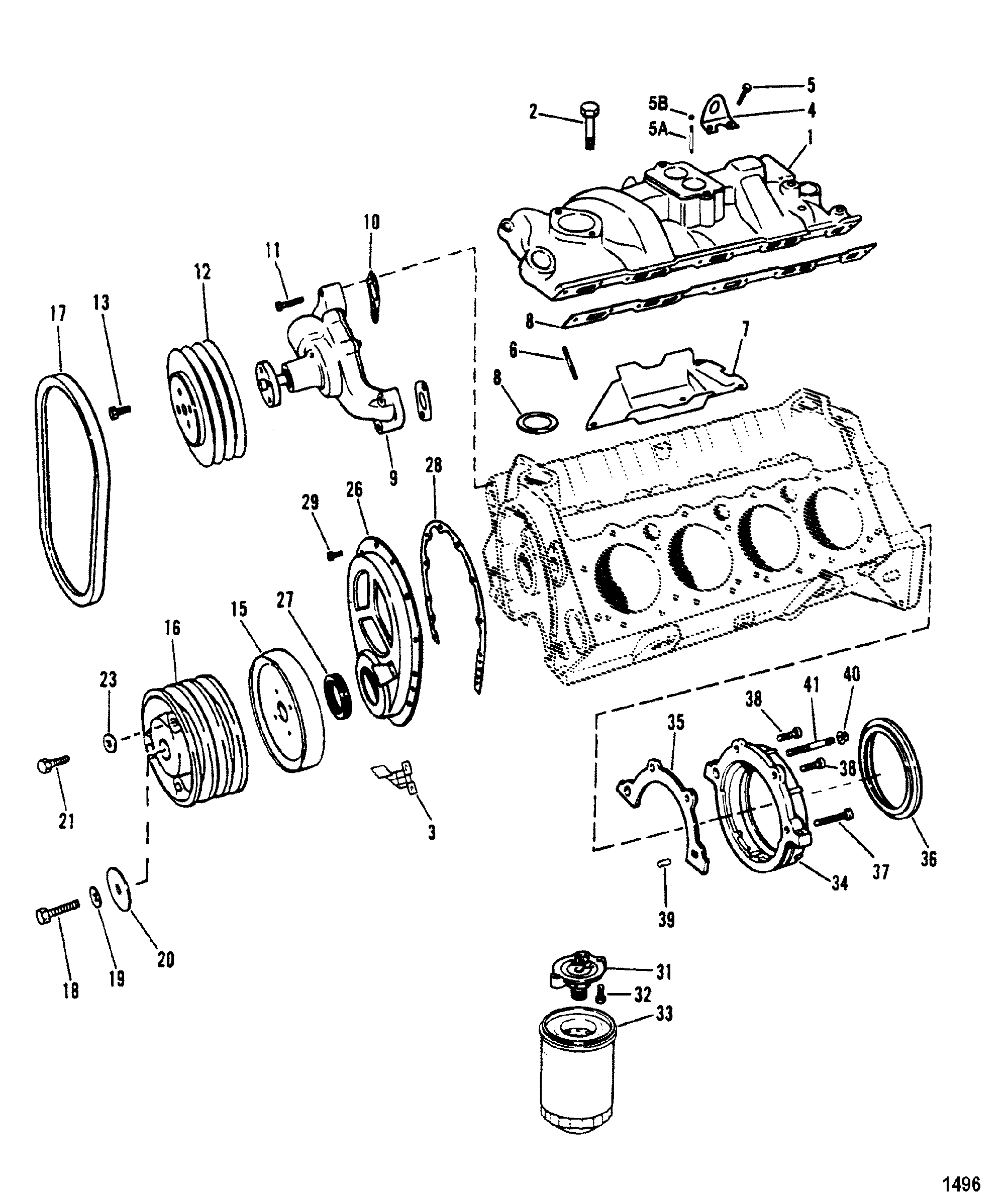

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Crankshaft And Flywheel
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distribitor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow (Alpha)
- Exhaust Manifold And Exhaust Elbow (Bravo)
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Mercathode Components
- Miscellaneous Parts and Accessories
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Pistons And Conn. Rods
- Power Steering Components
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket (Alpha)
- Shift Bracket (Bravo)
- Starter Motor
- Starter Motor And Alternator
- Thermostat Housing (Standard Cooling)
- Throttle Body
- Throttle Linkage
- Vapor Separator Tank
- Vapor Separator Tank And Fuel Lines
- Wiring Harness (EFI) (Illustration Only)
- Wiring Harness (Engine) (Illustration Only)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 17620 | INTAKE MANIFOLD | 1 | This Part is No Longer Available | |||||
| 2 | 10-806681 | BOLT | 9 | ||||||
| 2 | 10-802655 | BOLT | 3 | 10-11975 | |||||
| 3 | 75435A1 | TIMING POINTER | 1 | ||||||
| 4 | 54-47512 | LIFTING EYE | 1 | ||||||
| 5 | 10-34354 | 700-22447 |
SCREW | 2 | |||||
| 5A | 16-806250 | STUD | 2 | ||||||
| 5B | 11-32219 | NUT | 2 | ||||||
| 6 | N.S.S. | STUD (GM#3959544) | 4 | ||||||
| 7 | 72647 | GUARD | 1 | This Part is No Longer Available | |||||
| 8 | 27-17145 | 676-9-61200 |
700-30860 |
GASKET SET | 1 | (Use RTV Silicone Sealant for end gasket - See Service Manual) 2 | |||
| 9 | 8503991 | WATER PUMP ASSEMBLY | 1 | 17437 | |||||
| 10 | 27-34897 | 676-9-60065 | 700-31380 | GASKET | 2 | 2 | |||
| 11 | 10-32132 | SCREW (1-3/4") | 2 | ||||||
| 11 | 10-47688 | SCREW (2-3/4") | 1 | ||||||
| 11 | 10-52200 | SCREW (1-1/2") | 1 | No longer made, limited availability | |||||
| 12 | 15120T | PULLEY (5-1/2" DIA.) | 1 | This Part is No Longer Available | |||||
| 12 | 19692T01 | PULLEY (7" DIA.) | 1 | 19692T | |||||
| 13 | 10-47277 | SCREW | 4 | ||||||
| 15 | 75420 | HARMONIC BALANCER | 1 | ||||||
| 16 | 90081A1 | PULLEY | 1 | ||||||
| 17 | 57-48120Q1 | V-BELT | 1 | 57-48120A1 | |||||
| 18 | 10-32515 | BOLT | 1 | ||||||
| 19 | 13-39131 | LOCKWASHER | 1 | ||||||
| 20 | 35332001 | WASHER | 1 | 12-35332 | |||||
| 21 | 10-53833 | BOLT | 3 | ||||||
| 23 | WASHER | 3 | |||||||
| 26 | 14249A2 | COVER | 1 | ||||||
| 27 | 26-97335 | 676-9-61610 |
OIL SEAL (click here) | 1 | 2 | ||||
| 28 | 27-14250 | 676-9-61600 | 700-30530 | GASKET | 1 | 2 | |||
| 29 | 10-35366 | SCREW | 10 | ||||||
| 31 | 71920 | FILTER VALVE | 1 | 53338 | W/O REMOTE OIL FILTER | ||||
| 32 | 10-54786 | SCREW | 2 | W/O REMOTE OIL FILTER | |||||
| 33 | 35-866340Q03 | 676-9-57825 |
OIL FILTER | 1 | 14957 | W/O REMOTE OIL FILTER | |||
| 34 | 14239 | RETAINER (REAR) | 1 | ||||||
| 35 | 27-881715 | 676-9-61511 |
GASKET | 1 | 27-14241 | 2 | |||
| 36 | 26-14240 | 700-85790 |
OIL SEAL (REAR) | 1 | 2 | ||||
| 37 | 10-8M0064241 | BOLT | 1 | 10-14243 | |||||
| 38 | 10-14242 | BOLT | 2 | ||||||
| 39 | 17-14263 | DOWEL PIN | 1 | ||||||
| 40 | 11-11996 | NUT | 1 | ||||||
| 41 | 16-14827 | STUD | 1 | ||||||
| 42 | 10-49011 | SCREW | 4 | This Part is No Longer Available | |||||
| - | 27-75611A88 | 700-39017 |
ENGINE GASKET SET - Overhaul | 1 | |||||
