5.7L EFI (2 BBL-TBI) GM 350 V-8 1996 - Serial 0F752400 Thru 0K001505 - Power Steering Components

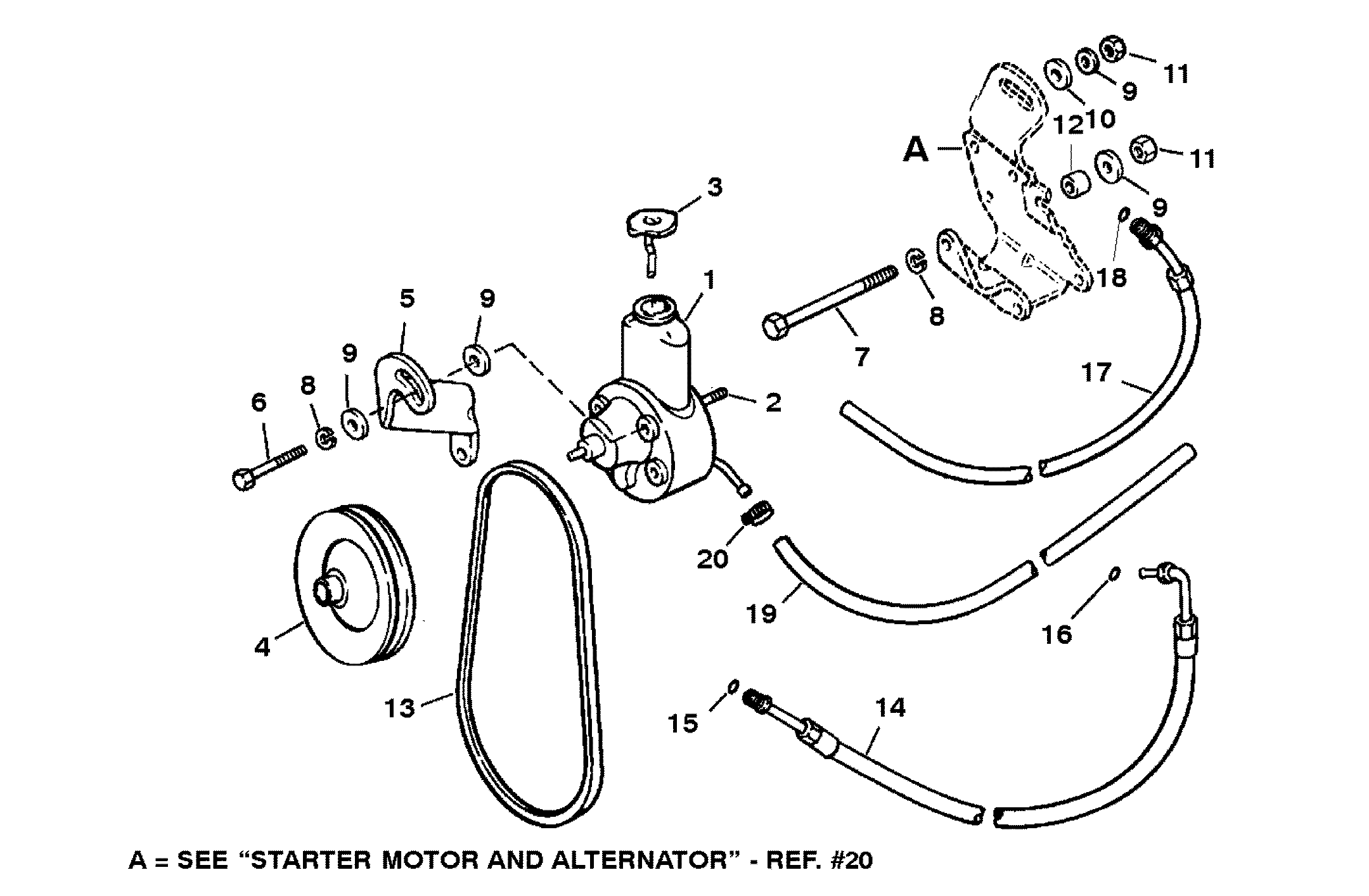

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Crankshaft And Flywheel
- Cylinder Block And Camshaft (5.7L Alpha
- Cylinder Block And Camshaft (5.7Lx Alpha
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exh. Manifold And Cast Iron Exhaust Elbow (Alpha)
- Exh. Manifold And Stainless Steel Exhaust Elbow (Bravo)
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Mercathode Components
- Miscellaneous Information
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Pistons And Connecting Rods
- Power Steering Components
- Sea Water Pump Assembly (Bravo Engines)
- Senders And Sensors
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System (Alpha Engines)
- Standard Cooling System (Bravo Engines)
- Starter Motor
- Starter Motor And Alternator
- Throttle Body
- Throttle Linkage (Alpha Engines)
- Throttle Linkage (Bravo Engines)
- Vapor Separator Tank
- Vapor Separator Tank And Fuel Lines
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 16792A39 | POWER STEERING PUMP ASSEMBLY | 1 | 16792A1 | Pump DOES NOT come with pulley | ||||
| 2 | 16-41877 | STUD | 2 | ||||||
| 3 | 36-95805 | CAP | 1 | ||||||
| 4 | 73873A1 | PULLEY | 1 | ||||||
| 5 | 15082T | BRACE | 1 | ||||||
| 6 | 10-40001192 | SCREW | 1 | ||||||
| 7 | 10-40001188 | SCREW | 1 | ||||||
| 8 | 13-400248 | LOCKWASHER | 2 | ||||||
| 9 | 23-72057 | SPACER | 4 | ||||||
| 10 | 12-28105 | WASHER | 1 | ||||||
| 11 | 11-90517 | NUT | 2 | ||||||
| 12 | 23-45353 | SPACER | 1 | ||||||
| 13 | 57-816295Q | V-BELT | 1 | 57-816295T | |||||
| 14 | 32-80622216 | HOSE | 1 | (FITTINGS ON BOTH ENDS) | |||||
| 15 | 25-89879 | O-RING | 1 | ||||||
| 16 | 25-806232 | O-RING | 1 | ||||||
| 17 | 32-80622142 | HOSE | 1 | (FITTING ON ONE END) | |||||
| 18 | 25-89879 | O-RING | 1 | ||||||
| 19 | 32-8M0062341 | HOSE | 1 | 32-5251914 | |||||
| 20 | 54-815504105 | CLAMP | 3 |
