5.7L EFI (2 BBL-TBI) GM 350 V-8 1996 - Serial 0F752400 Thru 0K001505 - Sea Water Pump Assembly (Bravo Engines)

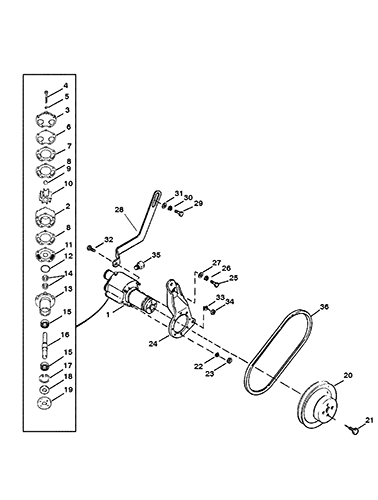

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Crankshaft And Flywheel
- Cylinder Block And Camshaft (5.7L Alpha
- Cylinder Block And Camshaft (5.7Lx Alpha
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exh. Manifold And Cast Iron Exhaust Elbow (Alpha)
- Exh. Manifold And Stainless Steel Exhaust Elbow (Bravo)
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Mercathode Components
- Miscellaneous Information
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Pistons And Connecting Rods
- Power Steering Components
- Sea Water Pump Assembly (Bravo Engines)
- Senders And Sensors
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System (Alpha Engines)
- Standard Cooling System (Bravo Engines)
- Starter Motor
- Starter Motor And Alternator
- Throttle Body
- Throttle Linkage (Alpha Engines)
- Throttle Linkage (Bravo Engines)
- Vapor Separator Tank
- Vapor Separator Tank And Fuel Lines
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 46-807151A12 | WATER PUMP ASSEMBLY | 1 | 46-72774A50 | |||||
| 2 | 46-807151A14 | BODY/IMPELLER KIT | 1 | ||||||
| 3 | 87631A4 | COVER | 1 | ||||||
| 4 | 10-73275 | SCREW (2-7/8") | 2 | ||||||
| 4 | 10-99347 | SCREW (3-3/4") | 3 | ||||||
| 5 | 12-20084 | WASHER | 5 | ||||||
| 6 | 27-8052151 | GASKET | 1 | ||||||
| 7 | 94916 | OUTER WEAR PLATE | 1 | ||||||
| 8 | 27-94914 | 700-32730 | GASKET | 2 | |||||
| 9 | 19-59504 | PLUG | 1 | ||||||
| 10 | 47-59362T1 | 625-4011 | 676-9-45375 | 700-89740 | IMPELLER | 1 | 47-593621 | ||
| 11 | 94576 | INNER WEAR PLATE | 1 | ||||||
| 12 | 25-94288 | QUAD RING | 1 | ||||||
| 13 | 46-94913A2 | PUMP HOUSING ASSEMBLY | 1 | ||||||
| 14 | 26-90562 | 676-9-76107 | 700-85080 | OIL SEAL | 2 | ||||
| 15 | 30-72961 | BALL BEARING | 2 | ||||||
| 16 | 59501A1 | SHAFT | 1 | ||||||
| 17 | 53-23720 | SNAP RING | 1 | ||||||
| 18 | 26-72785 | OIL SEAL | 1 | ||||||
| 19 | 47530 | HUB | 1 | ||||||
| 20 | 52822T | PULLEY | 1 | ||||||
| 21 | 10-47277 | SCREW (3/4") | 4 | ||||||
| 22 | 13-39107 | 700-21496 | LOCKWASHER | 3 | |||||
| 23 | 11-21908 | NUT | 3 | ||||||
| 24 | 89535T1 | BRACKET | 1 | ||||||
| 25 | 10-34353 | SCREW (1") | 2 | ||||||
| 26 | 13-35048 | LOCKWASHER | 2 | ||||||
| 27 | WASHER | 1 | |||||||
| 28 | 896091 | BRACE | 1 | ||||||
| 29 | 10-34353 | SCREW (1") | 1 | ||||||
| 30 | 13-35048 | LOCKWASHER | 1 | ||||||
| 31 | WASHER | 1 | |||||||
| 32 | 10-35786 | SCREW (1") | 1 | ||||||
| 33 | 13-35048 | LOCKWASHER | 1 | ||||||
| 34 | 11-46335 | NUT | 1 | ||||||
| 35 | 22-328022 | PLUG-WATER PUMP BODY | 1 | 22-328021 | |||||
| 36 | 57-13457Q | BELT | 1 | 57-13457T |
