5.7L EFI (2 BBL-TBI) GM 350 V-8 1996 - Serial 0F752400 Thru 0K001505 - Vapor Separator Tank

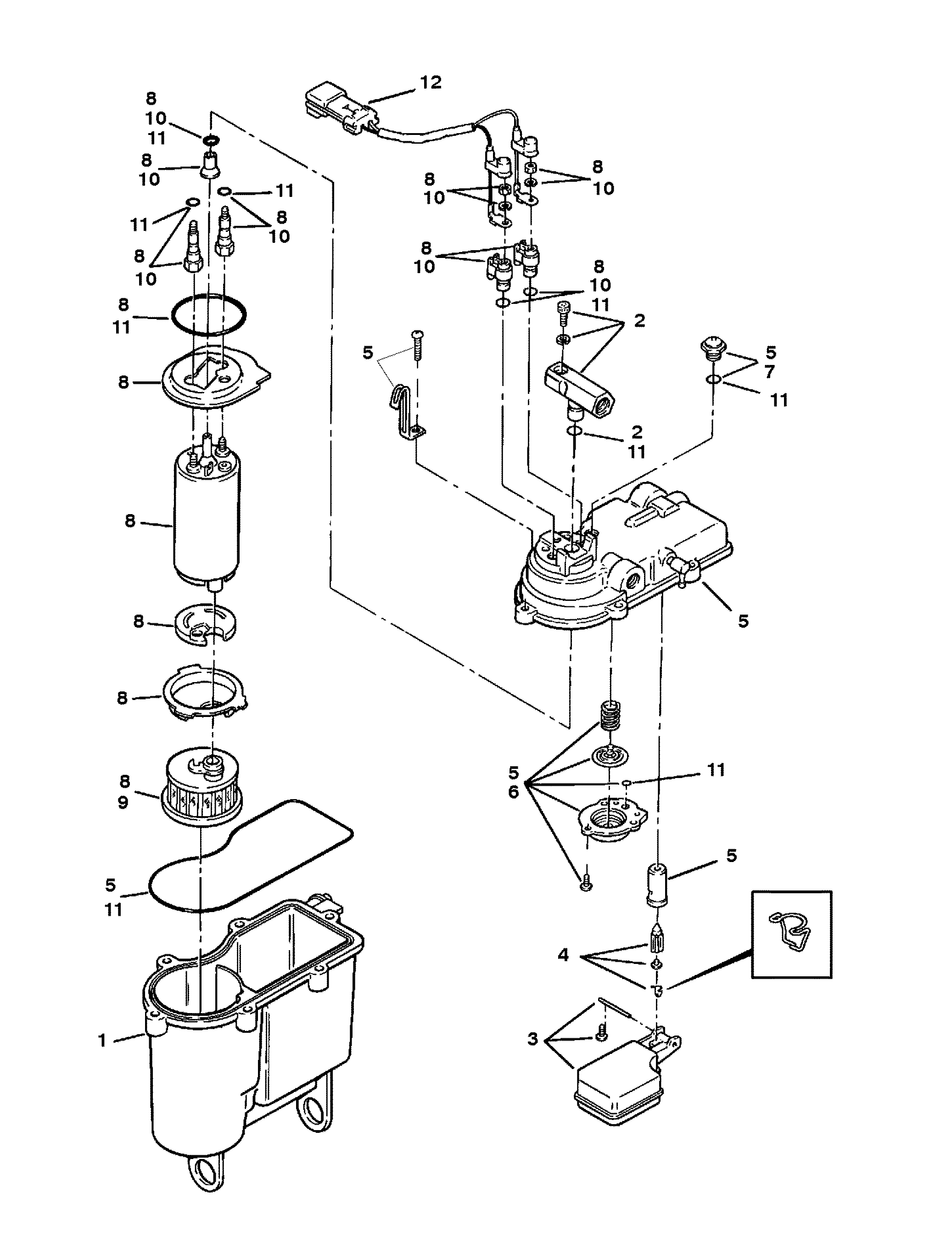

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Crankshaft And Flywheel
- Cylinder Block And Camshaft (5.7L Alpha
- Cylinder Block And Camshaft (5.7Lx Alpha
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exh. Manifold And Cast Iron Exhaust Elbow (Alpha)
- Exh. Manifold And Stainless Steel Exhaust Elbow (Bravo)
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Mercathode Components
- Miscellaneous Information
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Pistons And Connecting Rods
- Power Steering Components
- Sea Water Pump Assembly (Bravo Engines)
- Senders And Sensors
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System (Alpha Engines)
- Standard Cooling System (Bravo Engines)
- Starter Motor
- Starter Motor And Alternator
- Throttle Body
- Throttle Linkage (Alpha Engines)
- Throttle Linkage (Bravo Engines)
- Vapor Separator Tank
- Vapor Separator Tank And Fuel Lines
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 806643A5 | VAPOR SEPARATOR TANK ASSEMBLY | 1 | This Part is No Longer Available | |||||
| 2 | 808502 | L-JOINT KIT | 1 | This Part is No Longer Available | |||||
| 3 | 808506 | FLOAT KIT | 1 | ||||||
| 4 | 808507 | FLOAT VALVE KIT | 1 | ||||||
| 5 | 827681T | TOP COVER KIT | 1 | 827681 | |||||
| 6 | 808509 | DIAPHRAGM KIT | 1 | ||||||
| 7 | 808501 | PLUG KIT | 1 | This Part is No Longer Available | |||||
| 8 | 827682T | FUEL PUMP KIT | 1 | 827682 | |||||
| 9 | 808504T1 | FUEL STRAINER KIT | 1 | 8085041 | No longer made, limited availability | ||||
| 10 | 808503 | ELECTRICAL CONNECTOR KIT | 1 | ||||||
| 11 | 808500 | O-RING KIT | 1 | ||||||
| 12 | 827683 | WIRING HARNESS KIT | 1 | This Part is No Longer Available |
