Bravo Three - Serial 0W250000 and Up - Driveshaft Housing and Drive Gears

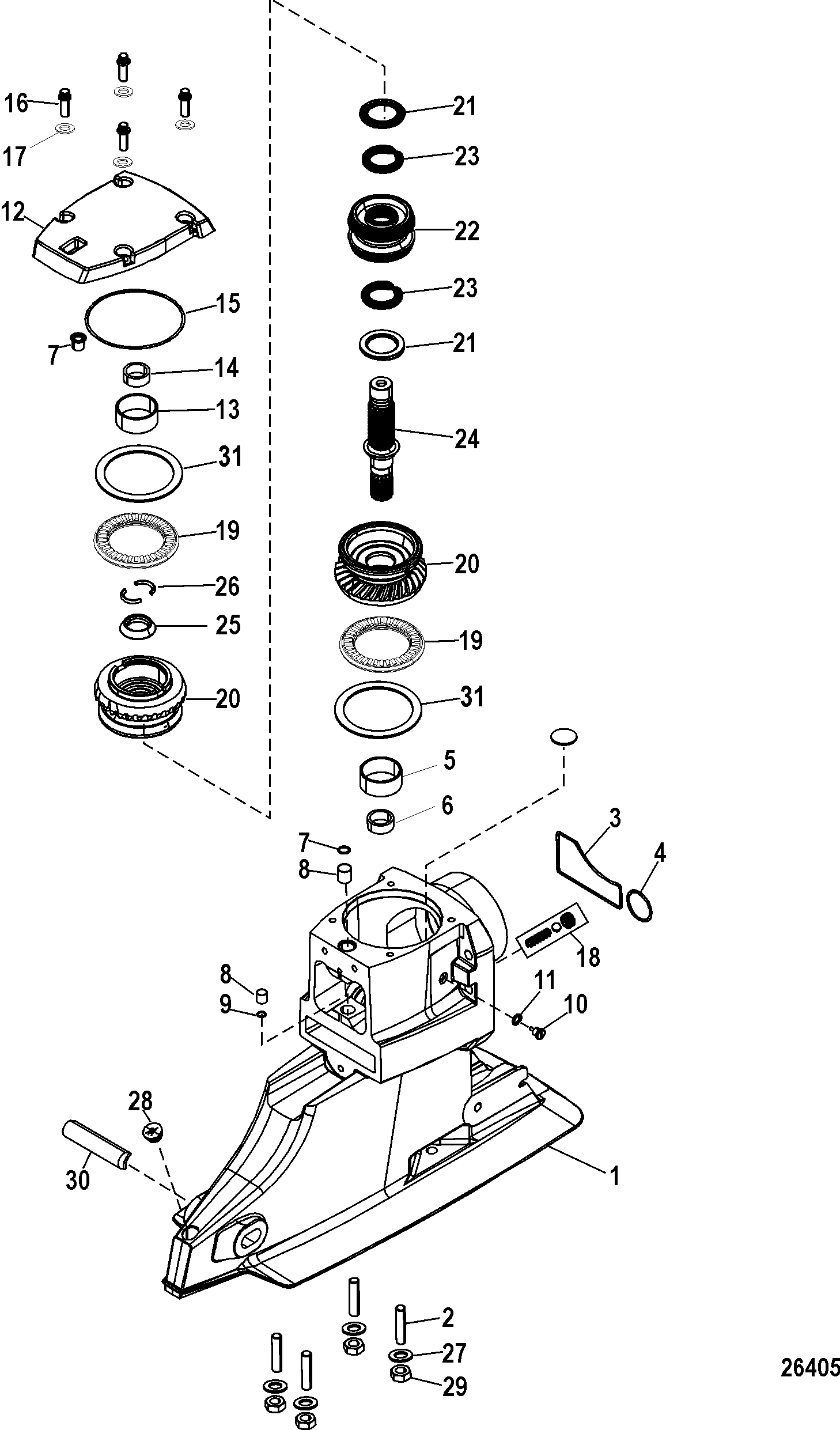

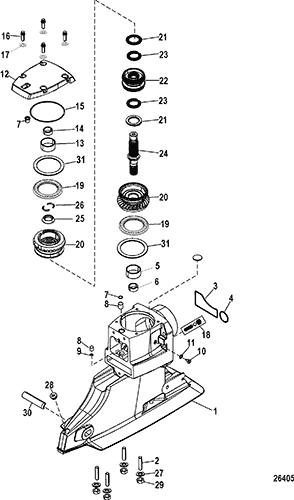

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bell Housing
- Compact Hydralic Steering Actuator
- Continuity Kit
- Driveshaft Housing and Drive Gears
- Gear Housing (Brave One)
- Gear Housing (Bravo Three)
- Gear Housing (Bravo Two)
- Gear Lube Monitor Components
- Gimbal Housing
- Gimbal Housing Cover
- Gimbal Ring and Steering Lever
- Gimbal Ring and Steering Lever, AXIUS Gen I
- Mercathode Kit
- Power Steering Actuator
- Special Tools-Driveshaft Housing
- Special Tools-Gear Housing (BRAVO ONE)
- Special Tools-Gear Housing (BRAVO THREE)
- Special Tools-Gear Housing (BRAVO TWO)
- Special Tools-Transom
- Steering Actuator, Axius (Gen I), Sensors Screw In
- Steering Actuator, Axius (Gen I), Sensors w- E-Clip-End Cap
- Steering Actuator, Axius (Gen II)
- Sterndrive Unit Chart, BRAVO I-II-III (Standard)
- Transom Assembly Chart
- Transom Plate and Shift Cable
- Trim Cylinder Components
- Trim Cylinders and Hydraulic Hoses (Standard Transoms)
- Trim Pump and Motor Components
- Trim Pump Assembly (Complete)
- Universal Joint and Shift Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 1589-865440H50 | HOUSING ASSEMBLY, Driveshaft - Complete | 1 | (Bravo-I 1.36:1 Ratio)(Bravo-II 1.50:1 Ratio)(Bravo-III 1.36:1 Ratio) | |||||
| - | 866458J01 | HOUSING ASSEMBLY, Driveshaft - Complete | 1 | (SEACORE)(Bravo-I 1.36:1 Ratio)(Bravo-II 1.50:1 Ratio)(Bravo-III 1.36:1 Ratio) | |||||
| - | 1589-865440H51 | HOUSING ASSEMBLY, Driveshaft - Complete | 1 | (Bravo-I 1.50:1 Ratio)(Bravo-II 1.65:1 Ratio and 2.00:1 Ratio)(Bravo-III 1.65:1 Ratio and 2.00:1 Ratio) | |||||
| - | 866458J02 | HOUSING ASSEMBLY, Driveshaft - Complete | 1 | (SEACORE)(Bravo-I 1.50:1 Ratio)(Bravo-II 1.65:1 Ratio and 2.00:1 Ratio)(Bravo-III 1.65:1 Ratio and 2.00:1 Ratio) | |||||
| - | 1589-865440H52 | HOUSING ASSEMBLY, Driveshaft - Complete | 1 | (Bravo-I 1.65:1 Ratio)(Bravo-II 2.20:1 Ratio)(Bravo-III 2.20:1 Ratio and 2.43:1 Ratio) | |||||
| - | 1500-866458J03 | HOUSING ASSEMBLY, Driveshaft - Complete | 1 | (SEACORE)(Bravo-I 1.65:1 Ratio)(Bravo-II 2.20:1 Ratio)(Bravo-III 2.20:1 Ratio and 2.43:1 Ratio) | |||||
| - | 1589-865440H01 | HOUSING ASSEMBLY, Driveshaft - Complete | 1 | (Bravo-II 1.81:1 Ratio)(Bravo-III 1.81:1 Ratio) | |||||
| - | 1500-866458J04 | HOUSING ASSEMBLY, Driveshaft - Complete | 1 | (SEACORE)(Bravo-II 1.81:1 Ratio)(Bravo-III 1.81:1 Ratio) | |||||
| - | 1589-865440H02 | HOUSING ASSEMBLY, Driveshaft - Complete | 1 | (Bravo-III 1.50:1 Ratio) | |||||
| 1 | 1589-865440H72 | HOUSING, Driveshaft - Basic | 1 | ||||||
| 1 | 1500-866458J00 | HOUSING, Driveshaft - Basic | 1 | (SEACORE) | |||||
| 2 | 16-579203 | STUD, (.437-14/.437-20 x 2.060) | 4 | ||||||
| 3 | 16755Q1 | SEAL | 1 | 17 | |||||
| 4 | 25-457101 | O-RING, (1.424 x .103) | 1 | 25-45710 | 17 | ||||
| 5 | 31-861791 | RACE | 1 | ||||||
| 6 | 31-843240 | BEARING ASSEMBLY, Roller | 1 | ||||||
| 7 | 19-865866 | PLUG, Shift Shaft Oil Seal | 1 | ||||||
| 8 | 23-861209A1 | BUSHING KIT | 1 | ||||||
| 9 | 26-127091 | SEAL, Oil | 1 | 17 | |||||
| 10 | 22-8M0058389 | PLUG KIT, Drain - Magnetic | 1 | 22-67892A06 | |||||
| 11 | 26-830749 | SEAL | 1 | 17 | |||||
| 12 | 865439A04 | COVER ASSEMBLY, Top | 1 | 865439A02 | |||||
| 12 | 866461A02 | COVER ASSEMBLY, Top | 1 | (SEACORE) | |||||
| 13 | 31-861791 | RACE | 1 | ||||||
| 14 | 31-843240 | BEARING ASSEMBLY, Roller | 1 | ||||||
| 15 | 25-97387 | O-RING | 1 | 17 | |||||
| 16 | 10-98794 | 676-9-78129 | 700-28300 | 525-10-98794 | SCREW, (.375-16 x 1.00) | 4 | |||
| 17 | 12-37828 | WASHER, (.390 x .625 x .062) Stainless Steel | 4 | (SEACORE) | |||||
| 18 | 24-17997A1 | SPRING KIT | 1 | 17 | |||||
| 19 | 31-861787 | BEARING ASSEMBLY, Thrust | 2 | ||||||
| 20 | 43-883473A2 | GEAR SET, (32/27), High Bump Sleeve | 1 | BIII 1.50, wear ring stamped H | |||||
| 20 | 43-883476A2 | GEAR SET, (29/27), High Bump Sleeve | 1 | BI 1.36, BII 1.50, BIII 1.36, wear ring stamped H | |||||
| 20 | 43-883479A2 | GEAR SET, (30/23), High Bump Sleeve | 1 | BI 1.65, BII 2.20, BIII 2.20 & 2.43, wear ring stamped H | |||||
| 20 | 43-8M0060003 | GEAR SET, (32/27), Low Bump Sleeve | 1 | BI 1.50, BII 1.65 & 2.00, BIII 1.65 & 2.00 | |||||
| 20 | 43-8M0060004 | GEAR SET, (29/27), Low Bump Sleeve | 1 | BII 1.81, BIII 1.81 | |||||
| 20 | 43-8M0060005 | GEAR SET, (30/23), Low Bump Sleeve | 1 | BI 1.65, BII 2.20, BIII 2.20 & 2.43 | |||||
| 21 | 31-861792 | BEARING ASSEMBLY, Thrust | 2 | ||||||
| 22 | 52-865344A01 | CLUTCH ASSEMBLY | 1 | ||||||
| 23 | 24-93505 | SPRING | 2 | ||||||
| 24 | 45-812773T | DRIVESHAFT, Upper | 1 | ||||||
| 25 | 23-86770 | COLLAR, Thrust | 1 | ||||||
| 26 | 97351 | KEEPER | 2 | 17 | |||||
| 27 | 12-861854 | WASHER, (.453 x .750 x .032) Stainless Steel | 4 | ||||||
| 28 | 19-824928001 | PLUG, Rubber | 1 | 19-824928 | |||||
| 29 | 11-35053 | NUT, (.437-20) | 4 | ||||||
| 30 | 808006 | INSERT, Trim Adjustment | 1 | ||||||
| 31 | 23-864596058 | SHIM/RACE, (.0575/.0584 Thick) Brown, Thrust Bearing | A/R | ||||||
| 31 | 23-864596059 | SHIM/RACE, (.0585/.0594 Thick) White, Thrust Bearing | A/R | ||||||
| 31 | 23-864596060 | SHIM/RACE, (.0595/.0604 Thick) Orange, Thrust Bearing | A/R | ||||||
| 31 | 23-864596061 | SHIM/RACE, (.0605/.0614 Thick) Green, Thrust Bearing | A/R | ||||||
| 31 | 23-864596062 | SHIM/RACE, (.0615/.0624 Thick) Yellow, Thrust Bearing | A/R | ||||||
| 31 | 23-864596063 | SHIM/RACE, (.0625/.0634 Thick) Red, Thrust Bearing | A/R | ||||||
| 31 | 23-864596064 | SHIM/RACE, (.0635/.0644 Thick) Light Blue, Thrust Bearing | A/R | ||||||
| 31 | 23-864596065 | SHIM/RACE, (.0645/.0654 Thick) Black, Thrust Bearing | A/R | ||||||
| 31 | 23-864596066 | SHIM/RACE, (.0655/.0664 Thick) Pink, Thrust Bearing | A/R | ||||||
| - | 26-16709A2 | SEAL KIT, Driveshaft Housing | 1 |
