Bravo Three - Serial 0W250000 and Up - Steering Actuator, Axius (Gen I), Sensors Screw In

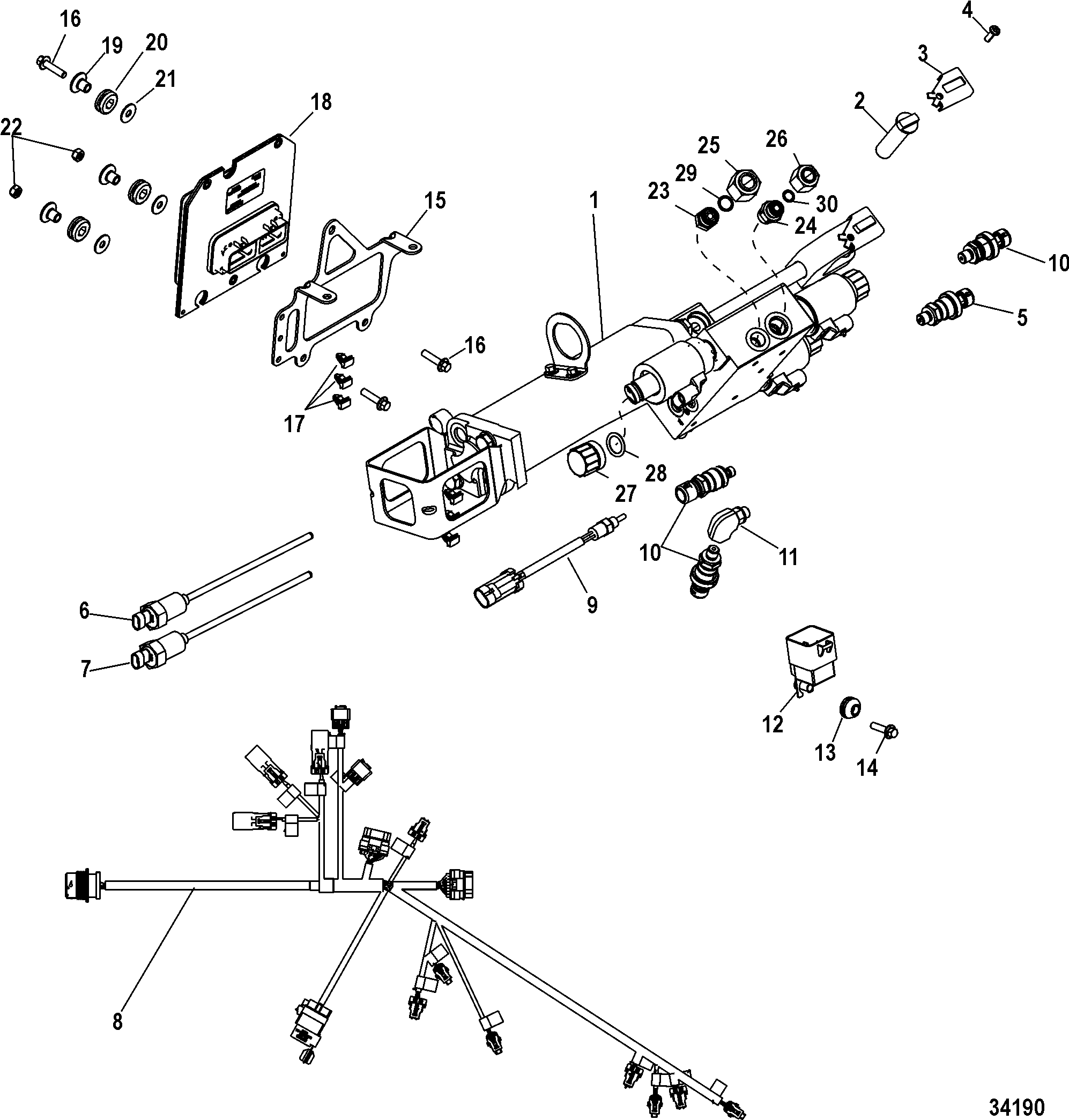

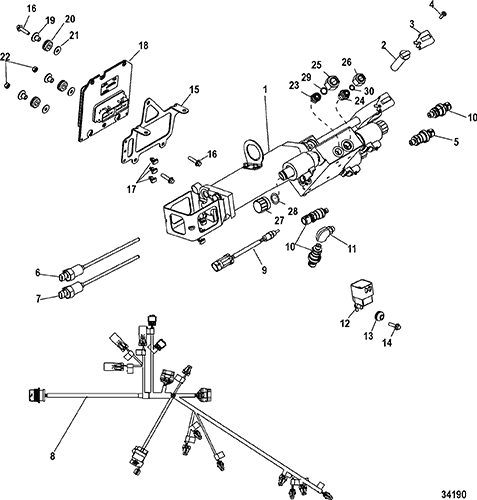

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bell Housing
- Compact Hydralic Steering Actuator
- Continuity Kit
- Driveshaft Housing and Drive Gears
- Gear Housing (Brave One)
- Gear Housing (Bravo Three)
- Gear Housing (Bravo Two)
- Gear Lube Monitor Components
- Gimbal Housing
- Gimbal Housing Cover
- Gimbal Ring and Steering Lever
- Gimbal Ring and Steering Lever, AXIUS Gen I
- Mercathode Kit
- Power Steering Actuator
- Special Tools-Driveshaft Housing
- Special Tools-Gear Housing (BRAVO ONE)
- Special Tools-Gear Housing (BRAVO THREE)
- Special Tools-Gear Housing (BRAVO TWO)
- Special Tools-Transom
- Steering Actuator, Axius (Gen I), Sensors Screw In
- Steering Actuator, Axius (Gen I), Sensors w- E-Clip-End Cap
- Steering Actuator, Axius (Gen II)
- Sterndrive Unit Chart, BRAVO I-II-III (Standard)
- Transom Assembly Chart
- Transom Plate and Shift Cable
- Trim Cylinder Components
- Trim Cylinders and Hydraulic Hoses (Standard Transoms)
- Trim Pump and Motor Components
- Trim Pump Assembly (Complete)
- Universal Joint and Shift Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 8M2016466 | STEERING ACTUATOR ASSEMBLY, Starboard | 1 | 8M2008525 | (Gas) (Refer to Service Bulletin SMC-09-06) | ||||
| 1 | 8M2008524 | STEERING ACTUATOR ASSEMBLY, Port | 1 | (Gas) (Refer to Service Bulletin SMC-09-06) | |||||
| 1 | 8M0048425 | STEERING ACTUATOR ASSEMBLY, Starboard | 1 | 8M2016016 | This Part is No Longer Available (Diesel) | ||||
| 1 | 8M0048426 | STEERING ACTUATOR ASSEMBLY, Port | 1 | 8M2016017 | This Part is No Longer Available (Diesel) | ||||
| 2 | NSS | NOT SOLD SEPARATE, CLEVIS PIN | 1 | This Part is not sold separately | |||||
| 3 | 8M2010043 | RETAINER | 1 | ||||||
| 4 | 10-4000328 | SCREW, (M6 x 16) | 1 | ||||||
| 5 | 8M0007568 | TRANSDUCER, 500 PSI | 1 | ||||||
| 6 | 897345T14 | SENSOR, Position, Secondary-Decreasing | 1 | ||||||
| 7 | 897345T15 | SENSOR, Position, Primary-Increasing | 1 | ||||||
| 8 | 84-897345T13 | HARNESS | 1 | ||||||
| 9 | 8M0010146 | SENSOR ASSEMBLY | 1 | ||||||
| 10 | 8M0007569 | TRANSDUCER | 3 | ||||||
| 11 | NSS | NOT SOLD SEPARATE, ELBOW | 1 | This Part is not sold separately | |||||
| 12 | NSS | NOT SOLD SEPARATE, RELAY | 1 | This Part is not sold separately | |||||
| 13 | NSS | NOT SOLD SEPARATE, GROMMET | 1 | This Part is not sold separately | |||||
| 14 | NSS | NOT SOLD SEPARATE, SCREW | 1 | This Part is not sold separately | |||||
| 15 | NSS | NOT SOLD SEPARATE, BRACKET | 1 | This Part is not sold separately | |||||
| 16 | NSS | NOT SOLD SEPARATE, SCREW | 3 | This Part is not sold separately | |||||
| 17 | 54-804352 | CLIP | 3 | ||||||
| 18 | NSS | NOT SOLD SEPARATE, THRUST VECTOR MODULE | 1 | This Part is not sold separately | |||||
| 19 | 23-856954 | BUSHING | 3 | ||||||
| 20 | 25-834985 | GROMMET | 3 | ||||||
| 21 | 12-65567 | WASHER, (.265 x .750 x .048) Stainless Steel | 3 | ||||||
| 22 | NSS | NOT SOLD SEPARATE, NUT | 3 | This Part is not sold separately | |||||
| 23 | 22-8M2007090 | FITTING, (-6ORF TO -8ORB) Straight | 1 | (Gas) | |||||
| 23 | 22-8M2008375 | FITTING, Adapter (-6ORF TO -8ORB), 90 Degree | 1 | (Diesel) | |||||
| 24 | 8M2015982 | FITTING, Adapter (-6ORF TO -8ORB) | 1 | ||||||
| 25 | 19-8M2013299 | CAP | 1 | ||||||
| 26 | 8M2013298 | CAP | 1 | ||||||
| 27 | 11-8M2013313 | NUT | 3 | ||||||
| 28 | 25-8M2013312 | O-RING | 3 | ||||||
| 29 | 8M2001117 | O-RING | 10 | ||||||
| 30 | 25-8M2004603 | O-RING | 10 | ||||||
| - | 879172A19 | DUST CAP KIT | 1 | (Refer to Service Bulletin SMC-09-06) |
