Bravo Three - Serial 0W250000 and Up - Universal Joint and Shift Components

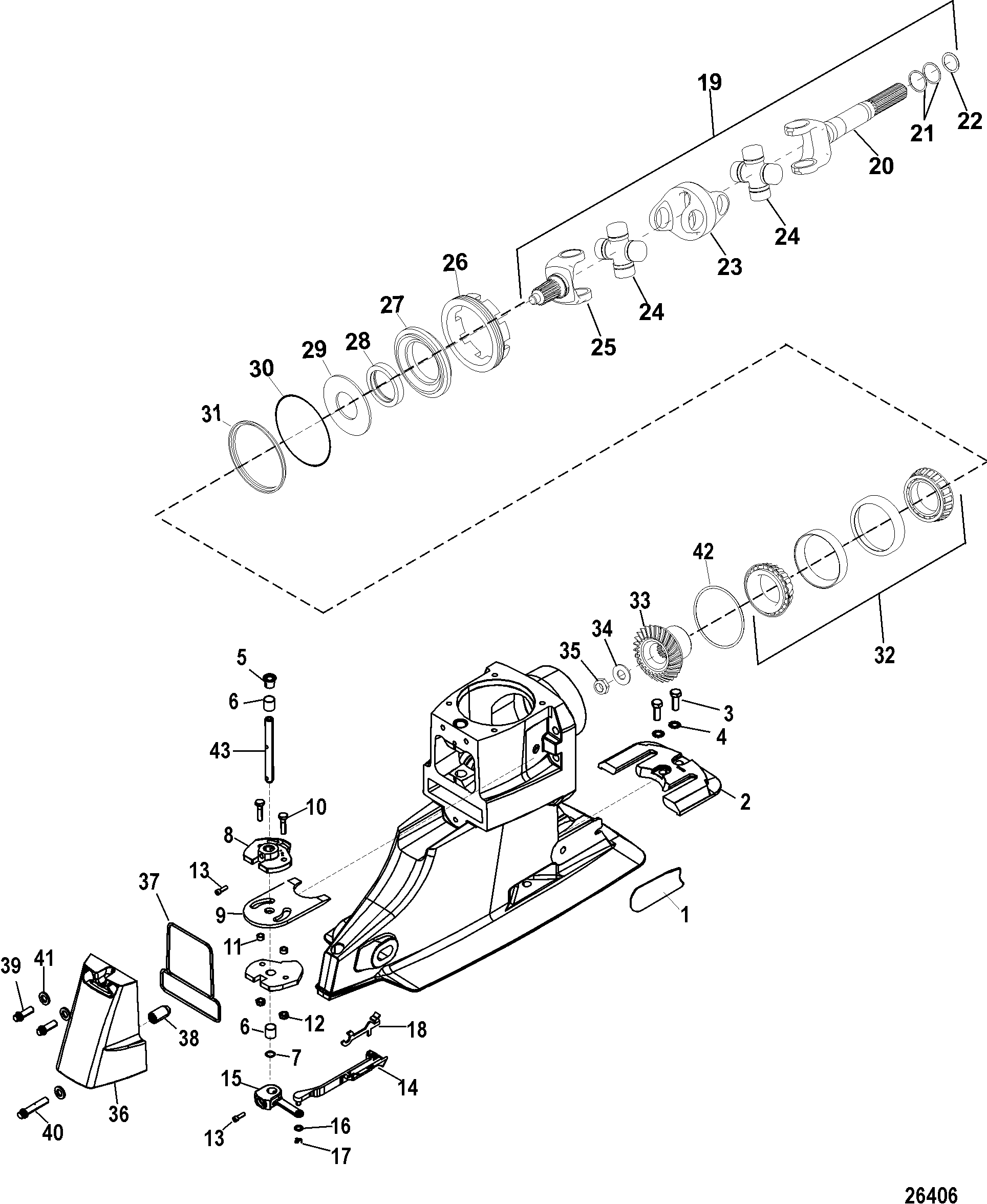

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bell Housing
- Compact Hydralic Steering Actuator
- Continuity Kit
- Driveshaft Housing and Drive Gears
- Gear Housing (Brave One)
- Gear Housing (Bravo Three)
- Gear Housing (Bravo Two)
- Gear Lube Monitor Components
- Gimbal Housing
- Gimbal Housing Cover
- Gimbal Ring and Steering Lever
- Gimbal Ring and Steering Lever, AXIUS Gen I
- Mercathode Kit
- Power Steering Actuator
- Special Tools-Driveshaft Housing
- Special Tools-Gear Housing (BRAVO ONE)
- Special Tools-Gear Housing (BRAVO THREE)
- Special Tools-Gear Housing (BRAVO TWO)
- Special Tools-Transom
- Steering Actuator, Axius (Gen I), Sensors Screw In
- Steering Actuator, Axius (Gen I), Sensors w- E-Clip-End Cap
- Steering Actuator, Axius (Gen II)
- Sterndrive Unit Chart, BRAVO I-II-III (Standard)
- Transom Assembly Chart
- Transom Plate and Shift Cable
- Trim Cylinder Components
- Trim Cylinders and Hydraulic Hoses (Standard Transoms)
- Trim Pump and Motor Components
- Trim Pump Assembly (Complete)
- Universal Joint and Shift Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 1589-865440H50 | HOUSING ASSEMBLY, Driveshaft - Complete | 1 | (Bravo-I 1.36:1 Ratio)(Bravo-II 1.50:1 Ratio)(Bravo-III 1.36:1 Ratio) | |||||
| - | 866458J01 | HOUSING ASSEMBLY, Driveshaft - Complete | 1 | (SEACORE)(Bravo-I 1.36:1 Ratio)(Bravo-II 1.50:1 Ratio)(Bravo-III 1.36:1 Ratio) | |||||
| - | 1589-865440H51 | HOUSING ASSEMBLY, Driveshaft - Complete | 1 | (Bravo-I 1.50:1 Ratio)(Bravo-II 1.65:1 Ratio and 2.00:1 Ratio)(Bravo-III 1.65:1 Ratio and 2.00:1 Ratio) | |||||
| - | 866458J02 | HOUSING ASSEMBLY, Driveshaft - Complete | 1 | (SEACORE)(Bravo-I 1.50:1 Ratio)(Bravo-II 1.65:1 Ratio and 2.00:1 Ratio)(Bravo-III 1.65:1 Ratio and 2.00:1 Ratio) | |||||
| - | 1589-865440H52 | HOUSING ASSEMBLY, Driveshaft - Complete | 1 | (Bravo-I 1.65:1 Ratio)(Bravo-II 2.20:1 Ratio)(Bravo-III 2.20:1 Ratio and 2.43:1 Ratio) | |||||
| - | 1500-866458J03 | HOUSING ASSEMBLY, Driveshaft - Complete | 1 | (SEACORE)(Bravo-I 1.65:1 Ratio)(Bravo-II 2.20:1 Ratio)(Bravo-III 2.20:1 Ratio and 2.43:1 Ratio) | |||||
| - | 1589-865440H01 | HOUSING ASSEMBLY, Driveshaft - Complete | 1 | (Bravo-II 1.81:1 Ratio)(Bravo-III 1.81:1 Ratio) | |||||
| - | 1500-866458J04 | HOUSING ASSEMBLY, Driveshaft - Complete | 1 | (SEACORE)(Bravo-II 1.81:1 Ratio)(Bravo-III 1.81:1 Ratio) | |||||
| - | 1589-865440H02 | HOUSING ASSEMBLY, Driveshaft - Complete | 1 | (Bravo-III 1.50:1 Ratio) | |||||
| - | 1589-865440H72 | HOUSING, Driveshaft - Basic | 1 | ||||||
| - | 1500-866458J00 | HOUSING, Driveshaft - Basic | 1 | (SEACORE) | |||||
| 1 | 805261A1 | WEAR PAD KIT | 1 | ||||||
| 2 | 821630Q1 | ANODE ASSEMBLY | 1 | ||||||
| 3 | 10-65210 | SCREW, (.375-16 x 1.00) | 2 | ||||||
| 4 | 13-35479 | LOCKWASHER, (.375) | 2 | ||||||
| 5 | 19-865866 | PLUG, Shift Shaft Oil Seal | 1 | ||||||
| 6 | 23-861209A1 | BUSHING KIT | 1 | ||||||
| 7 | 26-127091 | SEAL | 1 | ||||||
| 8 | 806552A1 | YOKE AND CAM ASSEMBLY | 1 | ||||||
| 9 | 806552 | YOKE, Shifter | 1 | ||||||
| 10 | 10-805733 | SCREW, (.250-28 x 1.00) | 2 | ||||||
| 11 | 23-12706 | SPACER, (.194 x .375) | 2 | ||||||
| 12 | 11-8267139 | NUT, (.250-28) | 2 | ||||||
| 13 | 10-865900 | SCREW, (.250-28 x .930) | 2 | 10-865712 | |||||
| 14 | 861175A2 | SHIFT LINKAGE ASSEMBLY, High Bump Shift Lever | 1 | BI 1.36, BII 1.50, BIII 1.36 & 1.50 | |||||
| 14 | 861175A03 | SHIFT LINKAGE ASSEMBLY, Low Bump Shift Lever | 1 | BI 1.50 & 1.65, BII 1.65, 1.81, 2.00 & 2.20, BIII 1.65, 1.81, 2.00, 2.20, 2.43 | |||||
| 15 | NSS | NOT SOLD SEPARATE, SHIFT LEVER | 1 | This Part is not sold separately | |||||
| 16 | 12-20583 | WASHER | 1 | ||||||
| 17 | 18-26953 | COTTER PIN | 1 | ||||||
| 18 | 86776 | LATCH | 1 | ||||||
| 19 | 864244A2 | UNIVERSAL JOINT ASSEMBLY | 1 | ||||||
| 20 | 864244A01 | YOKE ASSEMBLY, Coupler End | 1 | 865494A01 | |||||
| 21 | 25-29845 | O-RING, (.924 x .103) | 2 | 17 | |||||
| 22 | 25-35027 | 700-81180 | 525-25-35027 | O-RING, (1.046) | 1 | 17 | |||
| 23 | 865503T | SOCKET, Center | 1 | 865509T | |||||
| 24 | 865496A02 | CROSS AND BEARING | 2 | 865496A01 | |||||
| 25 | 864245T | YOKE, Gear End | 1 | 865495T | |||||
| 26 | 11-92004 | RING NUT | 1 | ||||||
| 27 | 86779A1 | CARRIER ASSEMBLY | 1 | ||||||
| 28 | 26-807006 | SEAL, Oil | 1 | ||||||
| 29 | 12-41613 | WASHER | 1 | ||||||
| 30 | 25-861844 | O-RING | 1 | ||||||
| 31 | 86780 | RING | 1 | ||||||
| 32 | 31-86763A04 | BEARING ASSEMBLY, Tapered Roller | 1 | ||||||
| 33 | 43-883473A2 | GEAR SET, (32/27), High Bump Sleeve | 1 | BIII 1.50, wear ring stamped H | |||||
| 33 | 43-883476A2 | GEAR SET, (29/27), High Bump Sleeve | 1 | BI 1.36, BII 1.50, BIII 1.36, wear ring stamped H | |||||
| 33 | 43-883479A2 | GEAR SET, (30/23), High Bump Sleeve | 1 | BI 1.65, BII 2.20, BIII 2.20 & 2.43, wear ring stamped H | |||||
| 33 | 43-8M0060003 | GEAR SET, (32/27), Low Bump Sleeve | 1 | BI 1.50, BII 1.65 & 2.00, BIII 1.65 & 2.00 | |||||
| 33 | 43-8M0060004 | GEAR SET, (29/27), Low Bump Sleeve | 1 | BII 1.81, BIII 1.81 | |||||
| 33 | 43-8M0060005 | GEAR SET, (30/23), Low Bump Sleeve | 1 | BI 1.65, BII 2.20, BIII 2.20 & 2.43 | |||||
| 34 | 12-44539 | WASHER | 1 | ||||||
| 35 | 11-22339 | 700-28360 | 525-11-22339 | NUT, (.625-18) | 1 | 11-97522 | |||
| 36 | 865441A02 | COVER ASSEMBLY, Back | 1 | ||||||
| 36 | 866463A02 | COVER ASSEMBLY, Back | 1 | (SEACORE) | |||||
| 37 | 12708 | SEAL | 1 | 17 | |||||
| 38 | 865711A02 | DETENT ASSEMBLY | 1 | 14497A2 | |||||
| 39 | 10-98794 | 676-9-78129 | 700-28300 | 525-10-98794 | >SCREW, (.375-16 x 1.00) | 2 | |||
| 40 | 10-87158 | SCREW, (.375-16 x 1.875) | 1 | ||||||
| 41 | 12-37828 | WASHER, (.390 x .625 x .062) Stainless Steel | 3 | (SEACORE) | |||||
| 42 | 15-888927028 | SHIM, (.028) | AR | ||||||
| 42 | 15-888927029 | SHIM, (.029) | AR | ||||||
| 42 | 15-888927030 | SHIM, (.030) | AR | ||||||
| 42 | 15-888927031 | SHIM, (.031) | AR | ||||||
| 42 | 15-888927032 | SHIM, (.032) | AR | ||||||
| 42 | 15-888927033 | SHIM, (.033) | AR | ||||||
| 42 | 15-888927034 | SHIM, (.034) | AR | ||||||
| 42 | 15-888927035 | SHIM, (.035) | AR | ||||||
| 42 | 15-888927036 | SHIM, (.036) | AR | ||||||
| 42 | 15-888927037 | SHIM, (.037) | AR | ||||||
| 42 | 15-888927038 | SHIM, (.038) | AR | ||||||
| 42 | 15-888927039 | SHIM, (.039) | AR | ||||||
| 42 | 15-888927040 | SHIM, (.040) | AR | ||||||
| 43 | 12711 | SHAFT | 1 | ||||||
| - | 26-16709A2 | SEAL KIT, Driveshaft Housing | 1 |
