525 EFI - Serial 0M962886 and Up - Fuel Rails And Injectors

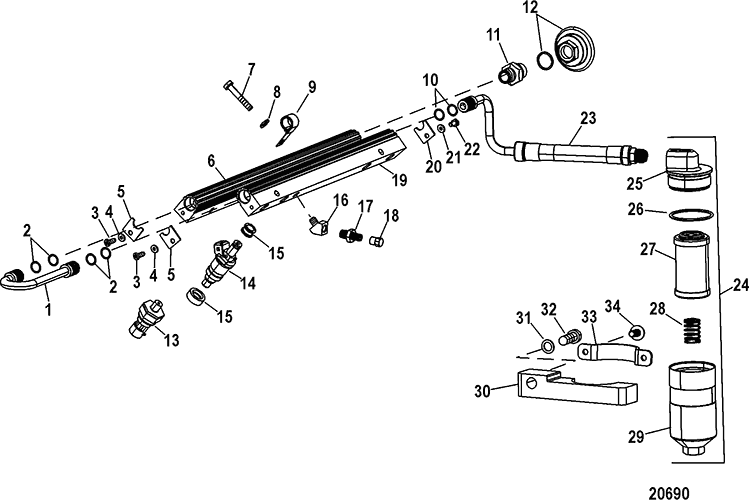

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Closed Cooling System Components
- Driveshaft Extension Components (Bravo)
- Electrical Components (Ignition)
- Electrical Components (Starter And Alternator)
- Electrical Components (Wiring)
- Engine Components (Crankshaft - Piston - Connecting Rods)
- Engine Components (Cylinder Block And Camshaft)
- Engine Components (Cylinder Head)
- Engine Components (Water Pump And Front Cover)
- Exhaust Header - Tailpipe Assembly
- Flywheel Housing (Bravo)
- Flywheel Housing (Driveline)(Bravo)
- Flywheel Housing (Driveline)(NXT1)
- Fuel Pump And Fuel Cooler
- Fuel Rails And Injectors
- Gasket-Seal Set - Engine Overhaul (27-843073A06)
- Intake Manifold And Components
- Intake Plenum And Components
- Mount Plates (Engine)
- Oil Cooler (Transmission)(NXT1)
- Oil Cooler And Oil Filter(Engine)
- Oil Pan And Oil Pump
- Paint Color Chart
- Power-Assisted Steering Components
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket Components(Bravo)
- Shift Plate Components(NXT1)
- Tool List (NXT1 Transmission)
- Tool List (Special - Engine)
- Transmission (Reservoir-Pump)(NXT1)
- Transmission (Shaft And Gears)(NXT1)
- Transmission (Shift Cover)(NXT1)
- Transmission (Tailstock)(NXT1)
- Trim Pump Assembly
- Trim Pump-Motor Assembly (865380A13)
- Water Hoses (Closed Cooling)
- Water Hoses (Sea Water)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 32-849971A03 | LINE KIT, Fuel - Black, Rail To Rail | 1 | ||||||
| 2 | 25-849922 | O-RING, Special | 4 | 2 | |||||
| 3 | 10-847401 | SCREW, (#10-24 x .380) | 2 | ||||||
| 4 | 12-30164 | WASHER, (.192 x .375 x .0312) Stainless Steel | 2 | ||||||
| 5 | 849923 | RETAINER, Fuel Lines | 2 | ||||||
| 6 | 842052T01 | FUEL RAIL, Starboard - Black | 1 | ||||||
| 7 | 10-86885 | SCREW, (.250-20 x 1.500) Stainless Steel | 4 | ||||||
| 8 | 12-846673 | WASHER, (.265 x .500 x .060) Stainless Steel | 4 | ||||||
| 9 | 54-858951 | J CLIP | 4 | ||||||
| 10 | 25-849922 | O-RING, Special | 2 | 2 | |||||
| 11 | 22-845177 | FITTING, Damper Adapter | 1 | ||||||
| 12 | 841062T01 | DAMPER ASSEMBLY, Fuel Pressure - Black | 1 | ||||||
| 13 | 881879T11 | SENSOR, Pressure (0 - 100 PSI), Fuel | 1 | 881879011 | |||||
| 14 | 805225A1 | INJECTOR ASSEMBLY, Fuel | 8 | ||||||
| 15 | 25-805511A1 | SEALING KIT, Fuel Injector | 8 | 2,5 | |||||
| 16 | 22-29085 | FITTING, Elbow (45 Degree) | 1 | ||||||
| 17 | 22-840971A1 | VALVE ASSEMBLY, Shrader | 1 | ||||||
| 18 | 22-805515 | CAP, Shrader Valve - Brass | 1 | ||||||
| 19 | 842051T01 | FUEL RAIL, Port - Black | 1 | ||||||
| 20 | 849923 | RETAINER, Fuel Line | 1 | ||||||
| 21 | 12-30164 | WASHER, (.192 x .375 x .0312) Stainless Steel | 1 | ||||||
| 22 | 10-847401 | SCREW, (#10-24 x .380) | 1 | ||||||
| 23 | 32-842069 | LINE ASSEMBLY, Fuel | 1 | This Part is No Longer Available | |||||
| 24 | 8M0052634 | FILTER ASSEMBLY, Fuel - Blue | 1 | 35-848355A03 | |||||
| 25 | 8M0027532 | CAP, Fuel Filter - Blue | 1 | 842053 | |||||
| 26 | 25-849087 | O-RING, (1.862 x .103) | 1 | 2 | |||||
| 27 | 8M0050994 | FILTER, Fuel | 1 | 35-848355 | |||||
| 28 | 24-812708 | SPRING | 1 | ||||||
| 29 | 842043 | BODY, Fuel Filter - Black | 1 | ||||||
| 30 | 844370 | BRACKET, Fuel Filter Mount | 1 | ||||||
| 31 | 12-45176 | WASHER, (.453 x .812 x .105) Stainless Steel | 1 | ||||||
| 32 | 10-844365 | SCREW, (.437-14 x 2.00) | 1 | ||||||
| 33 | 844371 | BRACKET, Fuel Filter Mount | 1 | ||||||
| 34 | 10-817505 | SCREW, (.250-20 x .620) Stainless Steel | 2 | ||||||
| - | 27-843073A06 | GASKET/SEAL SET, Engine Overhaul | 1 | NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing | |||||
| - | 841178A05 | PARTIAL ENGINE ASSEMBLY | 1 |
