525 EFI - Serial 0M962886 and Up - Transmission (Reservoir-Pump)(NXT1)

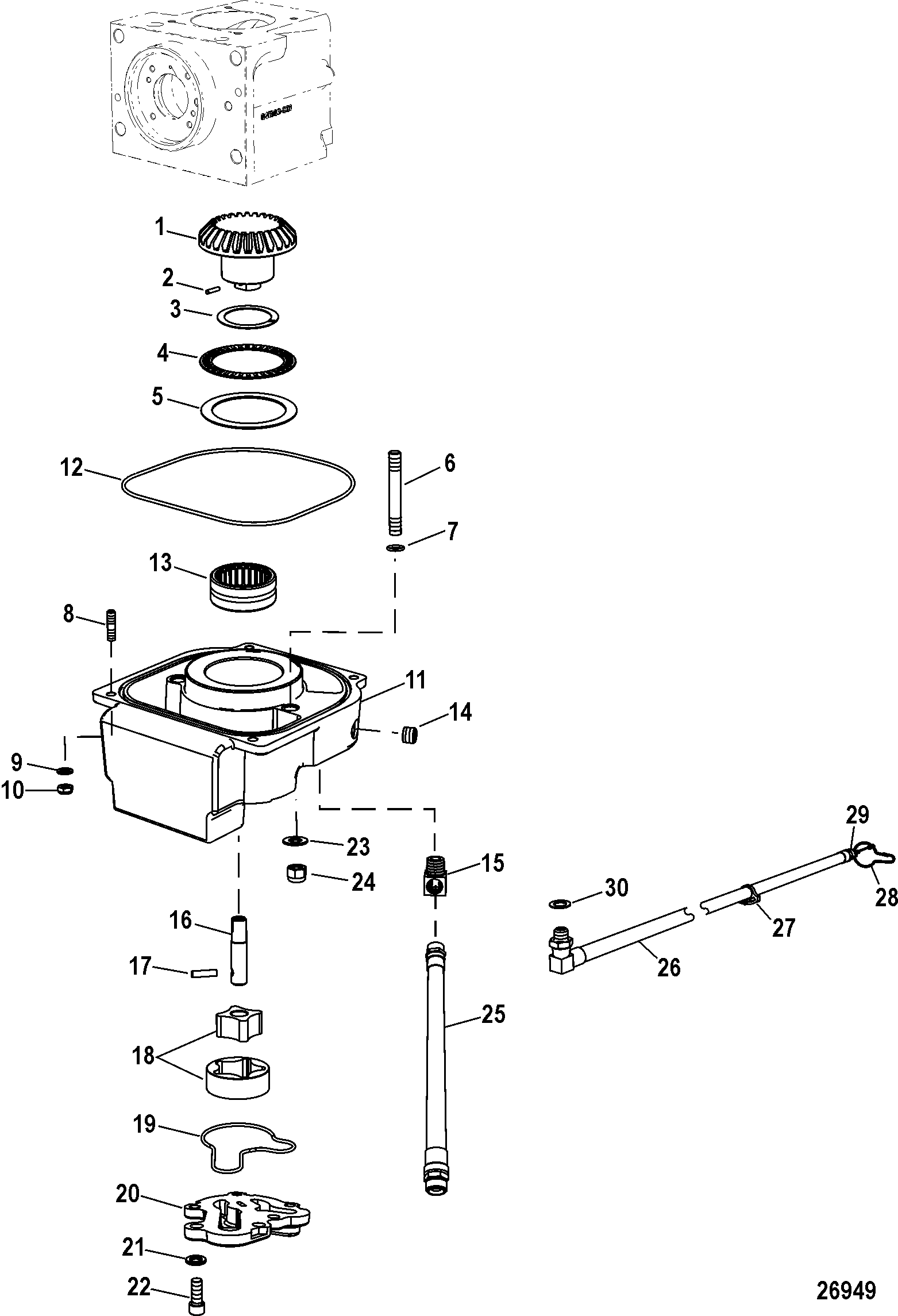

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Closed Cooling System Components
- Driveshaft Extension Components (Bravo)
- Electrical Components (Ignition)
- Electrical Components (Starter And Alternator)
- Electrical Components (Wiring)
- Engine Components (Crankshaft - Piston - Connecting Rods)
- Engine Components (Cylinder Block And Camshaft)
- Engine Components (Cylinder Head)
- Engine Components (Water Pump And Front Cover)
- Exhaust Header - Tailpipe Assembly
- Flywheel Housing (Bravo)
- Flywheel Housing (Driveline)(Bravo)
- Flywheel Housing (Driveline)(NXT1)
- Fuel Pump And Fuel Cooler
- Fuel Rails And Injectors
- Gasket-Seal Set - Engine Overhaul (27-843073A06)
- Intake Manifold And Components
- Intake Plenum And Components
- Mount Plates (Engine)
- Oil Cooler (Transmission)(NXT1)
- Oil Cooler And Oil Filter(Engine)
- Oil Pan And Oil Pump
- Paint Color Chart
- Power-Assisted Steering Components
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket Components(Bravo)
- Shift Plate Components(NXT1)
- Tool List (NXT1 Transmission)
- Tool List (Special - Engine)
- Transmission (Reservoir-Pump)(NXT1)
- Transmission (Shaft And Gears)(NXT1)
- Transmission (Shift Cover)(NXT1)
- Transmission (Tailstock)(NXT1)
- Trim Pump Assembly
- Trim Pump-Motor Assembly (865380A13)
- Water Hoses (Closed Cooling)
- Water Hoses (Sea Water)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 842017A02 | GEAR ASSEMBLY, Idler | 1 | 43-842017A01 | 4 | ||||
| 2 | 17-826149 | PIN, Dowel | 1 | 17-893566 | 4 | ||||
| 3 | 53-8M0022039 | RING, Retaining | 1 | 4 | |||||
| 4 | 31-861787 | BEARING ASSEMBLY | 1 | 4 | |||||
| 5 | 23-861782054 | SHIM/RACE, (.0530/.0550 Thick) Green | AR | 4 | |||||
| 5 | 23-861782057 | SHIM/RACE, (.0560/.0580 Thick) Yellow | AR | 4 | |||||
| 5 | 23-864596058 | SHIM/RACE, (.0575/.0584 Thick) Brown | AR | 4 | |||||
| 5 | 23-864596059 | SHIM/RACE, (.0585/.0594 Thick) White | AR | 4 | |||||
| 5 | 23-864596060 | SHIM/RACE, (.0595/.0604 Thick) Orange | AR | 4 | |||||
| 5 | 23-864596061 | SHIM/RACE, (.0605/.0614 Thick) Green | AR | 4 | |||||
| 5 | 23-864596062 | SHIM/RACE, (.0615/.0624 Thick) Yellow | AR | 4 | |||||
| 5 | 23-864596063 | SHIM/RACE, (.0625/.0634 Thick) Red | AR | 4 | |||||
| 5 | 23-864596064 | SHIM/RACE, (.0635/.0644 Thick) Light Blue | AR | 4 | |||||
| 5 | 23-864596065 | SHIM/RACE, (.0645/.0654 Thick) Black | AR | 4 | |||||
| 5 | 23-864596066 | SHIM/RACE, (.0655/.0664 Thick) Pink | AR | 4 | |||||
| 5 | 23-864596067 | SHIM/RACE, (.0665/.0674 Thick) Purple | AR | 4 | |||||
| 6 | 16-844356 | STUD, (.375-24 x 2.75) | 3 | 3,4 | |||||
| 7 | 25-62706 | O-RING, (.426 x .070) | 3 | 4 | |||||
| 8 | 16-8M0034450 | STUD, (.250-20/.250-28 x 1.01) | 4 | 16-12097 | 3,4 | ||||
| 9 | 12-846673 | WASHER, (.265 x .500 x .060) Stainless Steel | 4 | 4 | |||||
| 10 | 11-826709109 | NUT, (.250-28) Stainless Steel | 4 | 4 | |||||
| 11 | 841992A02 | HOUSING ASSEMBLY, Pump Reservoir | 1 | 4 | |||||
| 12 | 25-843920 | O-RING, (7.052 x .103) | 1 | 4 | |||||
| 13 | 31-814653T | BEARING ASSEMBLY, Needle Rollers | 1 | 4 | |||||
| 14 | 22-35052 | PLUG, Pipe (.250-18 x .375) | 1 | 4 | |||||
| 15 | 22-19697 | ELBOW | 1 | 4 | |||||
| 16 | NSS | NOT SOLD SEPARATE, Shaft | 1 | This Part is not sold separately 4 | |||||
| 17 | 17-8M0000421 | PIN, Dowel | 1 | 4 | |||||
| 18 | NSS | NOT SOLD SEPARATE, Inner And Outer Rotor Assembly | 1 | This Part is not sold separately 4 | |||||
| 19 | 25-857095 | O-RING, Special | 1 | 4 | |||||
| 20 | 844404 | COVER, Pump Reservoir | 1 | 4 | |||||
| 21 | 12-846673 | WASHER, (.265 x .500 x .060) Stainless Steel | 6 | 4 | |||||
| 22 | 10-8M0000422 | SCREW, (.250-28 x .630) Stainless Steel | 6 | 4 | |||||
| 23 | 12-842504 | WASHER, (.410 x .720 x .093) Stainless Steel | 3 | 4 | |||||
| 24 | 11-82671013 | NUT, (.375-24) Stainless Steel | 3 | 4 | |||||
| 25 | 32-8M0001648 | HOSE ASSEMBLY, (14.50 Inches) | 1 | ||||||
| 26 | 32-865281A02 | HOSE KIT, Oil Drain (38.00 Inches) | 1 | 4 | |||||
| 27 | 54-863481 | CLAMP | 1 | 4 | |||||
| 28 | 54-805524 | CLIP | 1 | 4 | |||||
| 29 | 862827 | TETHER ASSEMBLY | 1 | 4 | |||||
| 30 | 27-8M0077608 | GASKET | 1 | 27-49955 | 4 | ||||
| - | 841986A04 | TRANSMISSION ASSEMBLY, Complete | 1 |
