525 EFI - Serial 0M962886 and Up - Water Hoses (Sea Water)

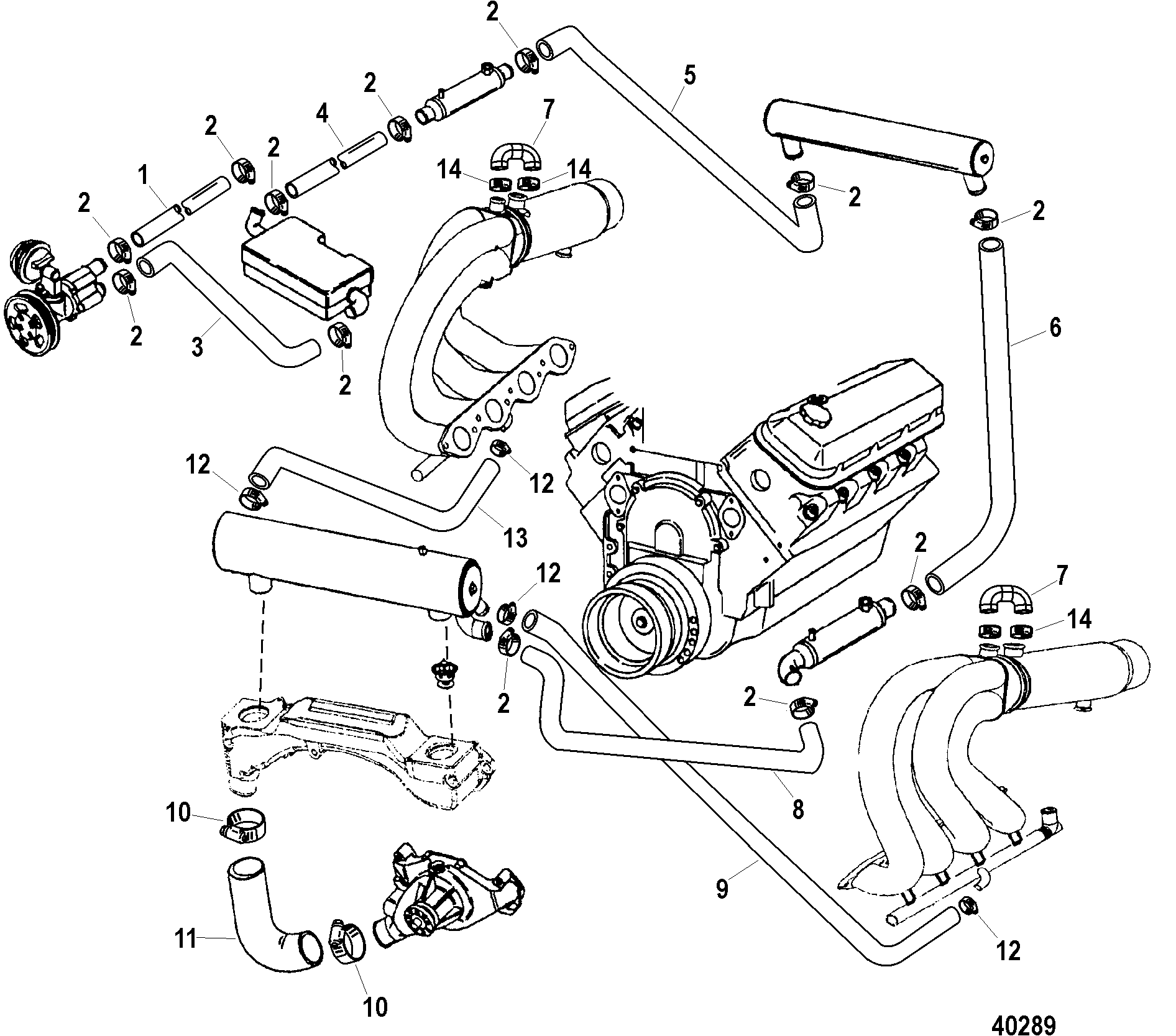

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Closed Cooling System Components
- Driveshaft Extension Components (Bravo)
- Electrical Components (Ignition)
- Electrical Components (Starter And Alternator)
- Electrical Components (Wiring)
- Engine Components (Crankshaft - Piston - Connecting Rods)
- Engine Components (Cylinder Block And Camshaft)
- Engine Components (Cylinder Head)
- Engine Components (Water Pump And Front Cover)
- Exhaust Header - Tailpipe Assembly
- Flywheel Housing (Bravo)
- Flywheel Housing (Driveline)(Bravo)
- Flywheel Housing (Driveline)(NXT1)
- Fuel Pump And Fuel Cooler
- Fuel Rails And Injectors
- Gasket-Seal Set - Engine Overhaul (27-843073A06)
- Intake Manifold And Components
- Intake Plenum And Components
- Mount Plates (Engine)
- Oil Cooler (Transmission)(NXT1)
- Oil Cooler And Oil Filter(Engine)
- Oil Pan And Oil Pump
- Paint Color Chart
- Power-Assisted Steering Components
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket Components(Bravo)
- Shift Plate Components(NXT1)
- Tool List (NXT1 Transmission)
- Tool List (Special - Engine)
- Transmission (Reservoir-Pump)(NXT1)
- Transmission (Shaft And Gears)(NXT1)
- Transmission (Shift Cover)(NXT1)
- Transmission (Tailstock)(NXT1)
- Trim Pump Assembly
- Trim Pump-Motor Assembly (865380A13)
- Water Hoses (Closed Cooling)
- Water Hoses (Sea Water)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 32-865672079 | HOSE, (96.00 Inches Bulk), Cut 48.00 Inches - Drive To Sea Water Pump | 1 | ||||||
| 1 | 32-13556A1 | HOSE KIT, (10.00 Feet), Drive To Sea Water Pump | 1 | Bravo Driveline Models | |||||
| 2 | 54-180766 | CLAMP, Worm Gear | 2 | Bravo Driveline Models | |||||
| 2 | 54-180766 | CLAMP, Worm Gear | 12 | ||||||
| 3 | 32-849935 | HOSE, Molded, Circulating Pump To Fuel Cooler | 1 | ||||||
| 4 | 32-8M0062665 | HOSE, (48.00 Inches Bulk), Cut As Required | 1 | 32-865672070 | |||||
| 5 | 32-844881 | HOSE, Molded, Cooler To Cooler | 1 | NOTE: This Hose Is Cut To Fit For Engines With Transmission Cooler | |||||
| 6 | 32-848956 | HOSE, Molded, Cooler To Tube | 1 | ||||||
| 7 | 32-8424181 | HOSE, Molded, Exhaust Header To Tailpipe | 2 | ||||||
| 8 | 32-8M0008251 | HOSE, Molded, Heat Exchanger To Cooler | 1 | ||||||
| 9 | 32-8M0008162 | HOSE, Molded, Heat Exchanger To Port Exhaust Header | 1 | ||||||
| 10 | 54-180768 | CLAMP, Worm Gear | 2 | ||||||
| 11 | 32-840927 | HOSE, Molded, Crossover To Circulating Pump | 1 | ||||||
| 12 | 54-180765 | CLAMP, Worm Gear | 4 | ||||||
| 13 | 32-840925 | HOSE, Molded, Heat Exchanger To Starboard Exhaust Header | 1 | ||||||
| 14 | 54-180763 | CLAMP, Worm Gear | 4 |
