525 SC (Gen 6) - Serial 0K000012 Thru 0L415623 - Cylinder Block And Camshaft

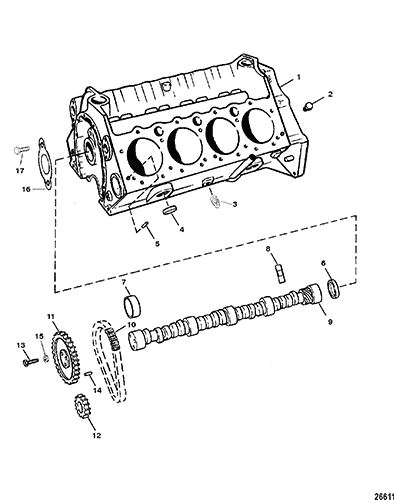

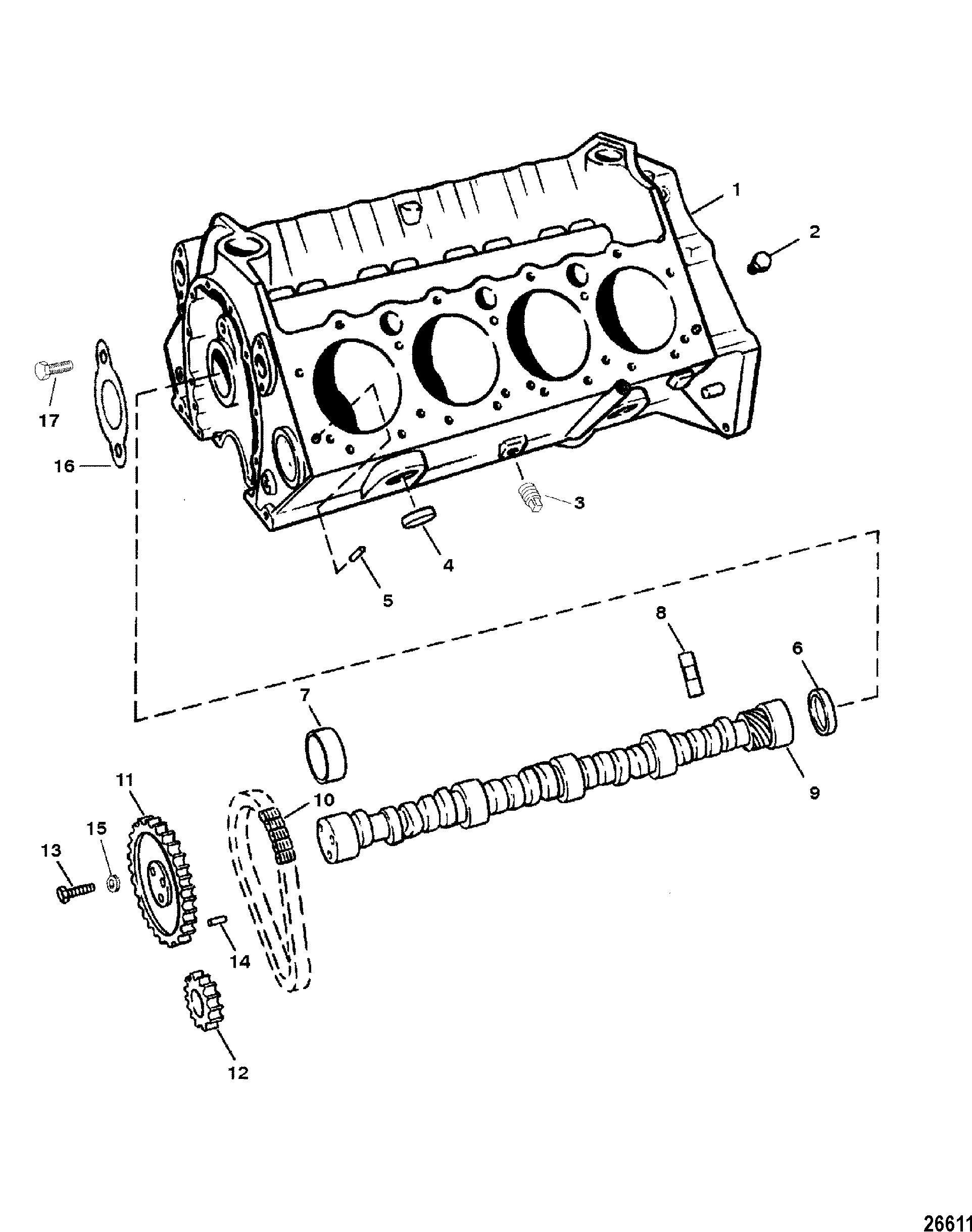

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator Assembly (Mando #AC-155603)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft - Pistons - Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components(Bravo Models)
- Electrical Components (0F745260 Thru 0F877734)
- Electrical Components (0K000012 Thru 0L415623)
- Exhaust Block Off Plate
- Exhaust Header-Tailpipe (0K000012 Thru 0L415623)
- Exhaust Manifold-Elbow (0F745260 Thru 0F877734)
- Flywheel Housing (Bravo Driveshaft Models)
- Flywheel Housing (Bravo Plug In Models)
- Fuel Pump And Fuel Filter
- Intake Manifold And Supercharger
- Mount Plates
- Oil Cooler And Oil Filter
- Oil Pan And Oil Pump
- Oil Reservoir Bottle
- Power Steering Components
- Sea Water Pump Assembly
- Shift Bracket
- Starter And Alternator Mounting
- Starter Assembly (50-808011A1) (Driveline)
- Starter Assembly (50-8M8021116) (Bravo Plug In)
- Thermostat Housing
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 805541A1 | PARTIAL ENGINE ASSEMBLY | 1 | This Part is No Longer Available - NOTE: Bravo Models With Driveline Also Require Flywheel 230-811563 And Pilot Bushing 23-49126 | |||||
| 2 | 22-48340 | PLUG, (.250-18 x .41) | 4 | ||||||
| 2 | 22-48358T | PLUG, (.375) | 2 | 22-48358 | |||||
| 3 | 22-36382 | 700-21887 | FITTING, (.250-18) Brass | 2 | |||||
| 4 | 22-69300 | EXPANSION PLUG, (1.750 Diameter) | 8 | ||||||
| 5 | 17-52190 | PIN, Dowel | 4 | ||||||
| 6 | 19-94140 | EXPANSION PLUG | 1 | ||||||
| 7 | 23-85684 | BEARING SET | 1 | ||||||
| 8 | 93722T | LIFTER | 16 | 93722 | |||||
| 9 | 451-7892 | CAMSHAFT | 1 | ||||||
| 10 | 845796T | CHAIN, Timing | 1 | 811580 | |||||
| 11 | 8115781 | SPROCKET, Camshaft | 1 | ||||||
| 12 | 43-845794T | SPROCKET, Crankshaft | 1 | 43-811579 | |||||
| 13 | 10-845942 | SCREW, (.312-18 x .750) | 3 | 10-35339 | |||||
| 14 | 17-843378 | PIN, Dowel (.250 Diameter) | 1 | 17-35312 | |||||
| 15 | 12-848136 | WASHER, (.328 x .680 x .190) | 3 | ||||||
| 16 | 23-491241 | PLATE, Gear Thrust | 1 | This Part is No Longer Available | |||||
| 17 | 10-848155 | SCREW (.250-20 x .500) | 2 | This Part is No Longer Available | |||||
| - | 92-809825 | RTV SILICONE, Metallic Blue, Where Applicable | AR | ||||||
| - | 34227Q02 | SEALING COMPOUND, (16 Ounce), Where Applicable | AR | 92-342271 | |||||
| - | 27-827014A98 | GASKET SET, Engine Overhaul | 1 | 27-827014A97 |
