525 SC (Gen 6) - Serial 0K000012 Thru 0L415623 - Intake Manifold And Supercharger

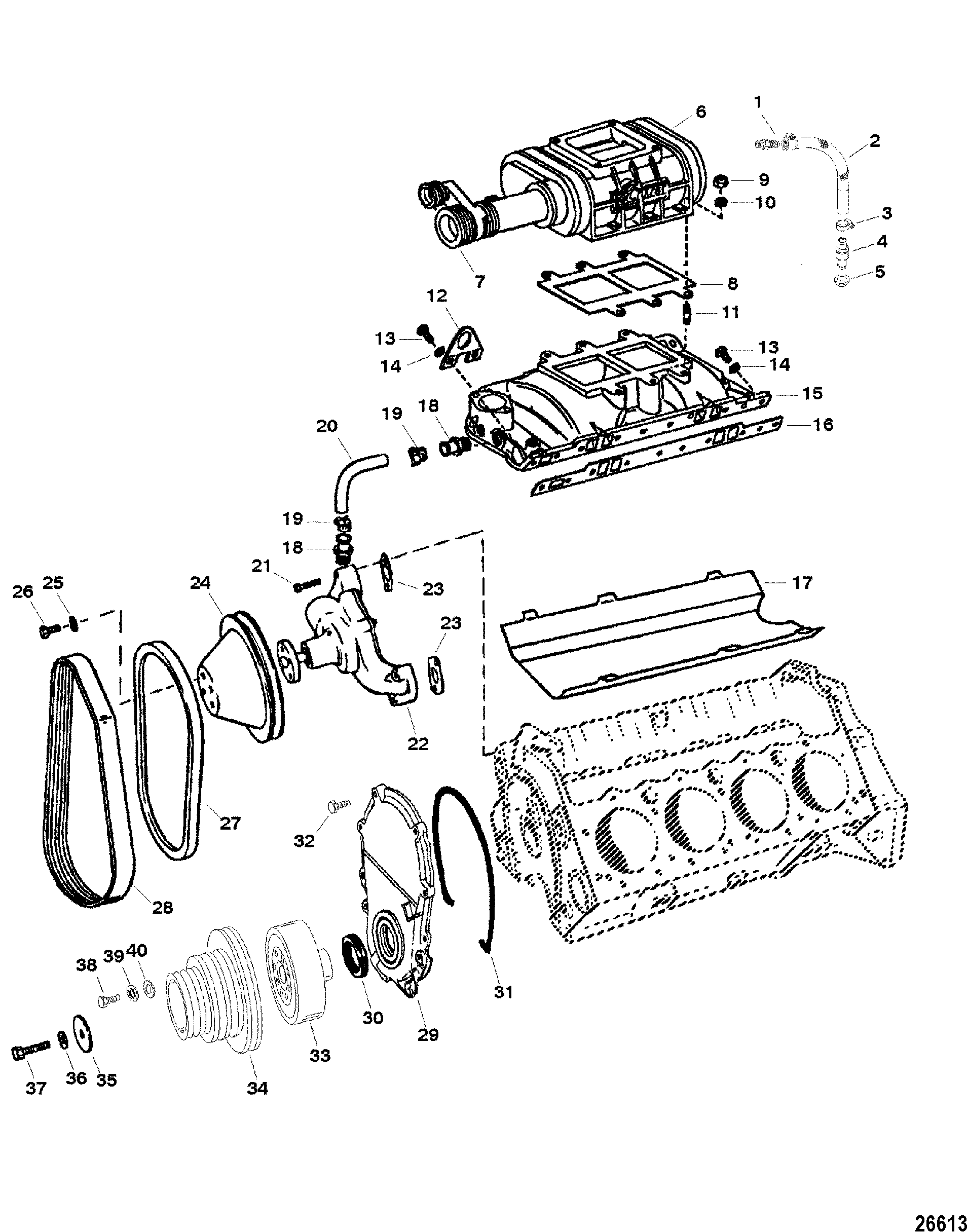

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator Assembly (Mando #AC-155603)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft - Pistons - Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components(Bravo Models)
- Electrical Components (0F745260 Thru 0F877734)
- Electrical Components (0K000012 Thru 0L415623)
- Exhaust Block Off Plate
- Exhaust Header-Tailpipe (0K000012 Thru 0L415623)
- Exhaust Manifold-Elbow (0F745260 Thru 0F877734)
- Flywheel Housing (Bravo Driveshaft Models)
- Flywheel Housing (Bravo Plug In Models)
- Fuel Pump And Fuel Filter
- Intake Manifold And Supercharger
- Mount Plates
- Oil Cooler And Oil Filter
- Oil Pan And Oil Pump
- Oil Reservoir Bottle
- Power Steering Components
- Sea Water Pump Assembly
- Shift Bracket
- Starter And Alternator Mounting
- Starter Assembly (50-808011A1) (Driveline)
- Starter Assembly (50-8M8021116) (Bravo Plug In)
- Thermostat Housing
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 22-34982 | CONNECTOR | 1 | 22-32820 | |||||
| 2 | 32-823229A3 | HOSE ASSEMBLY (13.50 Inches) | 1 | ||||||
| 3 | 54-815504104 | CLAMP, Worm Gear | 1 | ||||||
| 4 | 848578 | VALVE ASSEMBLY, Crankcase Vent | 1 | ||||||
| 5 | 25-811553 | GROMMET | 1 | 2 | |||||
| 6 | 817116A3 | SUPERCHARGER ASSEMBLY | 1 | ||||||
| 7 | 8477111 | PULLEY, Upper Driven | 1 | This Part is No Longer Available | |||||
| 8 | 27-8171181 | GASKET, Intake To Supercharger | 1 | 2 | |||||
| NS | 22-328022 | PLUG, Pipe (.125-27), Brass | 1 | 22-328021 | |||||
| NS | 22-36382 | 700-21887 | FITTING, (.250-18) Brass | 1 | |||||
| 9 | 11-82670911 | NUT, (.312-24) | 6 | 11-35814 | |||||
| 10 | 12-70132 | WASHER, (.323 x .563 x .063) Stainless Steel | 6 | ||||||
| 11 | 16-848562 | STUD (.375 x 1.650) | 6 | ||||||
| 12 | 54-64628 | LIFTING EYE | 2 | 54-646281 | |||||
| 13 | 10-812567 | SCREW, (.375-16 x 1.625) | 8 | ||||||
| 13 | 10-815687 | SCREW, (.375-16 x 1.250) | 7 | ||||||
| 13 | 10-842787 | SCREW, (.375-16 x 2.00) | 1 | 10-47432 | |||||
| 14 | 12-37828 | WASHER, (.390 x .625 x .062) | 16 | ||||||
| 15 | 848582T02 | MANIFOLD, Intake | 1 | 8485821 | |||||
| 16 | 27-8181881 | GASKET, Intake Manifold | 2 | 2 | |||||
| 17 | <845756T | SHIELD, Intake | 1 | 816073 | |||||
| 18 | 22-806242 | CONNECTOR, By Pass | 2 | ||||||
| 19 | 54-815504412 | CLAMP, Worm Gear | 2 | ||||||
| 20 | 32-805987 | HOSE, By Pass | 1 | ||||||
| 21 | 10-805611 | SCREW, (.375-16 x 1.750) | 4 | 10-811574 | |||||
| 22 | 811573A04 | PUMP ASSEMBLY, Circulating Water | 1 | 811573A03 | |||||
| 23 | 27-49110 | GASKET, Circulating Water Pump Mount | 2 | 2 | |||||
| 24 | 523491 | PULLEY, Circulating Pump | 1 | This Part is No Longer Available | |||||
| 25 | 13-39107 | 700-21496 | LOCKWASHER, (.312) | 4 | |||||
| 26 | 10-47277 | SCREW, (.312-24 x .750) | 4 | ||||||
| 27 | 57-816034Q | V BELT, Alternator Drive | 1 | 57-816034 | |||||
| 28 | 57-817113 | BELT, Serpentine | 1 | ||||||
| 29 | 845610T | COVER ASSEMBLY, Timing Chain | 1 | 850459 | |||||
| 30 | 26-8219471 | SEAL, Oil | 1 | 2 | |||||
| 31 | 27-850456 | GASKET, Front Cover Mount | 1 | 2 | |||||
| 32 | 10-850455 | SCREW | 10 | ||||||
| 33 | 845625T2 | BALANCER | 1 | 850460 | |||||
| 34 | 8219811 | PULLEY, Crankshaft | 1 | This Part is No Longer Available | |||||
| 35 | 12-49103 | WASHER | 1 | ||||||
| 36 | 13-14759 | LOCKWASHER | 1 | This Part is No Longer Available | |||||
| 37 | SCREW, (.500-20 x 2.500) | 1 | 10-811559 | ||||||
| 38 | 10-357851 | SCREW, (.375-16 x 3.250) | 3 | ||||||
| 39 | 13-35048 | LOCKWASHER, (.375) | 3 | ||||||
| 40 | 12-20553 | WASHER, (.406 x .734 x .063) | 3 | ||||||
| - | 27-827014A98 | GASKET SET, Engine Overhaul | 1 | 27-827014A97 |
