525 SC (Gen 6) - Serial 0K000012 Thru 0L415623 - Electrical Components (0F745260 Thru 0F877734)

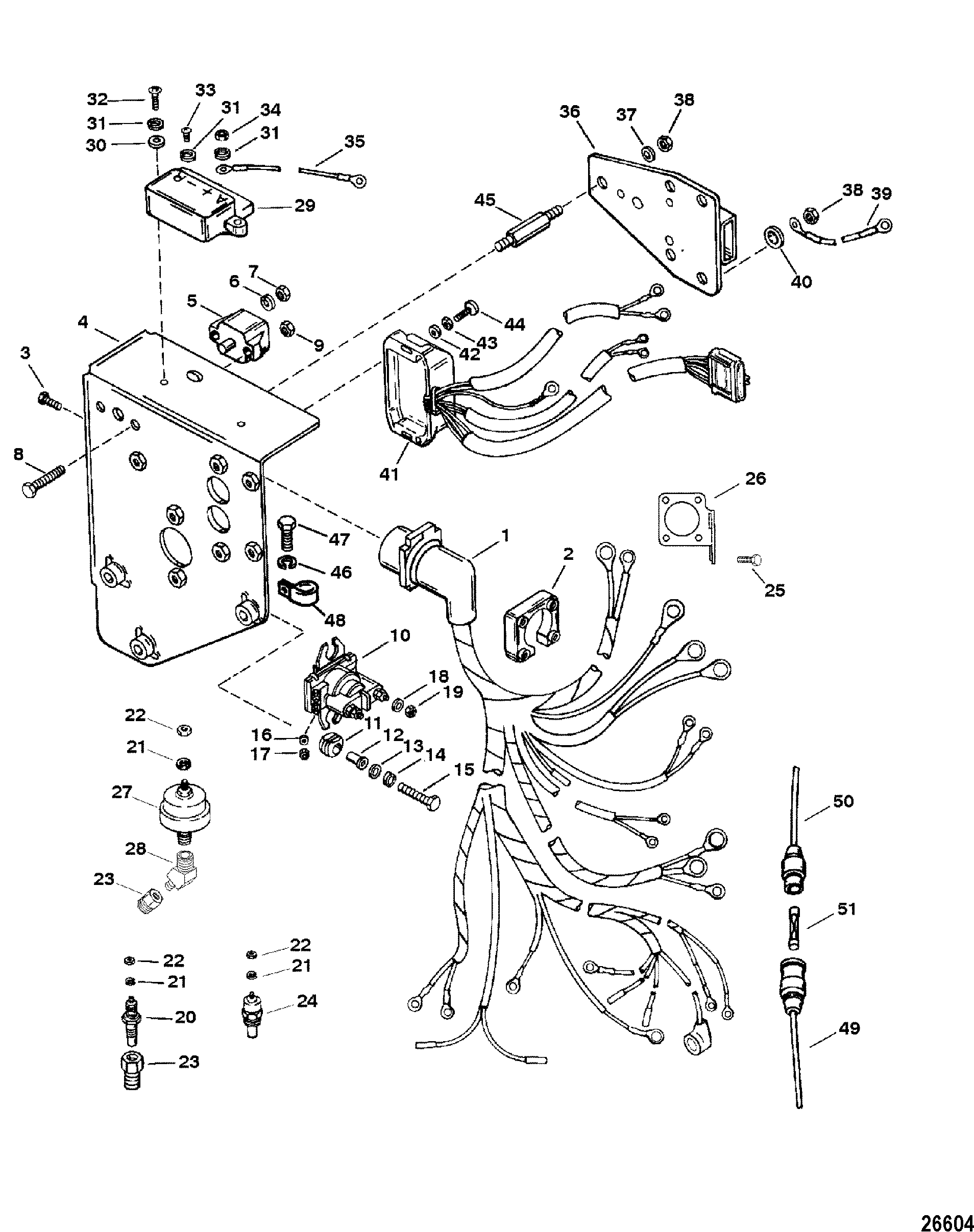

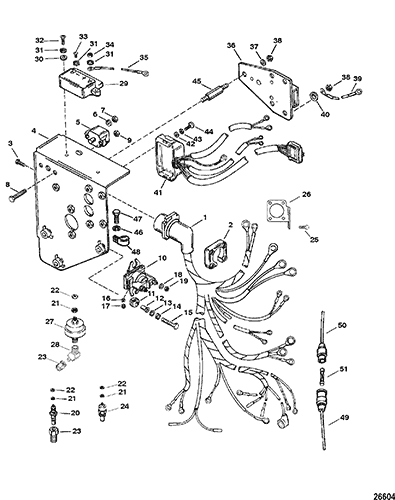

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator Assembly (Mando #AC-155603)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft - Pistons - Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components(Bravo Models)
- Electrical Components (0F745260 Thru 0F877734)
- Electrical Components (0K000012 Thru 0L415623)
- Exhaust Block Off Plate
- Exhaust Header-Tailpipe (0K000012 Thru 0L415623)
- Exhaust Manifold-Elbow (0F745260 Thru 0F877734)
- Flywheel Housing (Bravo Driveshaft Models)
- Flywheel Housing (Bravo Plug In Models)
- Fuel Pump And Fuel Filter
- Intake Manifold And Supercharger
- Mount Plates
- Oil Cooler And Oil Filter
- Oil Pan And Oil Pump
- Oil Reservoir Bottle
- Power Steering Components
- Sea Water Pump Assembly
- Shift Bracket
- Starter And Alternator Mounting
- Starter Assembly (50-808011A1) (Driveline)
- Starter Assembly (50-8M8021116) (Bravo Plug In)
- Thermostat Housing
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 84-847722A2 | HARNESS ASSEMBLY, Wiring | 1 | ||||||
| 2 | 26079A2 | PLATE KIT, Wire Harness Mount | 1 | ||||||
| 3 | 10-15001 | SCREW, (#8-16 x .875) | 4 | ||||||
| 4 | 8481311 | BRACKET, Electrical Components | 1 | This Part is No Longer Available | |||||
| 5 | 88-11178A01 | BREAKER, Circuit - 50 Ampere | 1 | 88-11178 | This part is the replacement for 11178A01 however the mounting hole will need to be enlarged to make it work. | ||||
| 6 | 13-26996 | LOCKWASHER, (#10) | 2 | ||||||
| 7 | 11-68219 | NUT, (#10-32) | 2 | ||||||
| 8 | 10-45862 | SCREW, (#10-32 x .875) | 2 | ||||||
| 9 | 11-61356 | NUT, (#10-32) | 2 | ||||||
| 10 | 89-818999A2 | SOLENOID ASSEMBLY, Starter | 1 | ||||||
| 11 | 25-818967 | GROMMET | 2 | ||||||
| 12 | 23-818968 | BUSHING | 2 | ||||||
| 13 | 12-29245 | WASHER, (.281 x .500 x .060) | 2 | ||||||
| 14 | 13-26992 | LOCKWASHER, (.250) | 2 | ||||||
| 15 | 10-76630 | SCREW, (.250-20 x 1.00) | 2 | ||||||
| 16 | 13-26995 | LOCKWASHER, (#8) | 2 | ||||||
| 17 | 11-26419 | NUT, (#8-32) | 2 | ||||||
| 18 | 13-26992 | LOCKWASHER, (.250) | 2 | ||||||
| 19 | 11-94330 | NUT, (.250-20) | 2 | ||||||
| 20 | 13611 | SENDER ASSEMBLY, Oil Temperature | 1 | ||||||
| 21 | 13-26996 | LOCKWASHER, (#10) | 3 | ||||||
| 22 | 11-45076 | NUT, (#10-32) | 3 | ||||||
| 23 | 22-64013 | FITTING, (.375 Male To .125 Female), Engine Block | 2 | ||||||
| 24 | 806490T | SENDER ASSEMBLY, Water Temperature - Thermostat Housing | 1 | 97257A1 | |||||
| 24 | 49734 | SENDER ASSEMBLY, Water Temperature - Thermostat Housing | OPT | 49734A1 | Dual Engine Models | ||||
| 25 | 10-88829 | SCREW, (#10-24 x .500) | 4 | ||||||
| 26 | 8481911 | BRACKET, Wire Harness | 1 | ||||||
| 27 | 8M0068784 | SENDER ASSEMBLY, Oil Pressure | 1 | 815425 | |||||
| 27 | 37293T | SENDER ASSEMBLY, Oil Pressure | OPT | 37293 | Dual Engine Models | ||||
| 28 | 22-29085 | FITTING, Elbow (45 Degree) | 1 | ||||||
| 29 | 42600A09 | CONTROLLER ASSEMBLY | 1 | 56-42600A3 | |||||
| 30 | 12-30164 | WASHER, (.192 x .375 x .0312) | 2 | ||||||
| 31 | 13-26996 | LOCKWASHER, (#10) | 7 | ||||||
| 32 | 10-41771 | SCREW, (#10-24 x .875) | 2 | Non Driveline Models | |||||
| 32 | 10-35401 | SCREW, (#10 x 1.00) | 2 | Driveline Models | |||||
| 33 | 10-62568 | SCREW, (#10-16 x .375) | 1 | ||||||
| 34 | 11-68219 | NUT, (#10-32) | 4 | ||||||
| 35 | 84-86322A17 | CABLE ASSEMBLY, Black | 1 | This Part is No Longer Available - Non Driveline Models | |||||
| 36 | 15899A1 | IGNITION MODULE ASSEMBLY | 1 | 814295A1 | This Part is No Longer Available order 15899T01 | ||||
| 37 | 12-29245 | WASHER, (.281 x .500 x .060) | 2 | ||||||
| 38 | 11-8267098 | NUT, (.250-20) | 3 | 11-56374 | |||||
| 39 | 84-62826A6 | CABLE ASSEMBLY, Ground - Black (13.00 Inches) | 1 | ||||||
| 40 | 13-21272 | LOCKWASHER, (.250), Internal | 1 | ||||||
| 41 | 823755T1 | OVERSPEED ASSEMBLY | 1 | 823755A1 | |||||
| 42 | 12-30164 | WASHER, (.192 x .375 x .0312) | 2 | ||||||
| 43 | 13-26996 | LOCKWASHER, (#10) | 2 | ||||||
| 44 | 10-41771 | SCREW, (#10-24 x .875) | 2 | ||||||
| 45 | 16-847738 | STUD, Electrical Bracket Mount | 3 | ||||||
| 46 | 12-45176 | WASHER, (.453 x .812 x .105) | 3 | ||||||
| 47 | 10-825427 | SCREW, (.437-14 x 1.250), Bracket Mount | 3 | ||||||
| 48 | 54-848183 | J CLIP, Electrical Harness | 1 | ||||||
| 49 | 84-95084A9 | CABLE ASSEMBLY, (91.00 Inches), Fuse | 1 | Driveline Models | |||||
| 50 | 84-95084A10 | CABLE ASSEMBLY, (5.00 Inches), Fuse | 1 | Driveline Models | |||||
| 51 | 88-79091 | FUSE, 20 Ampere | 1 | Driveline Models |
