450 (Gen 5) GM 454 V8 1995-1996 - Serial 0F347100 Thru 0F347277 - Audio Warning System

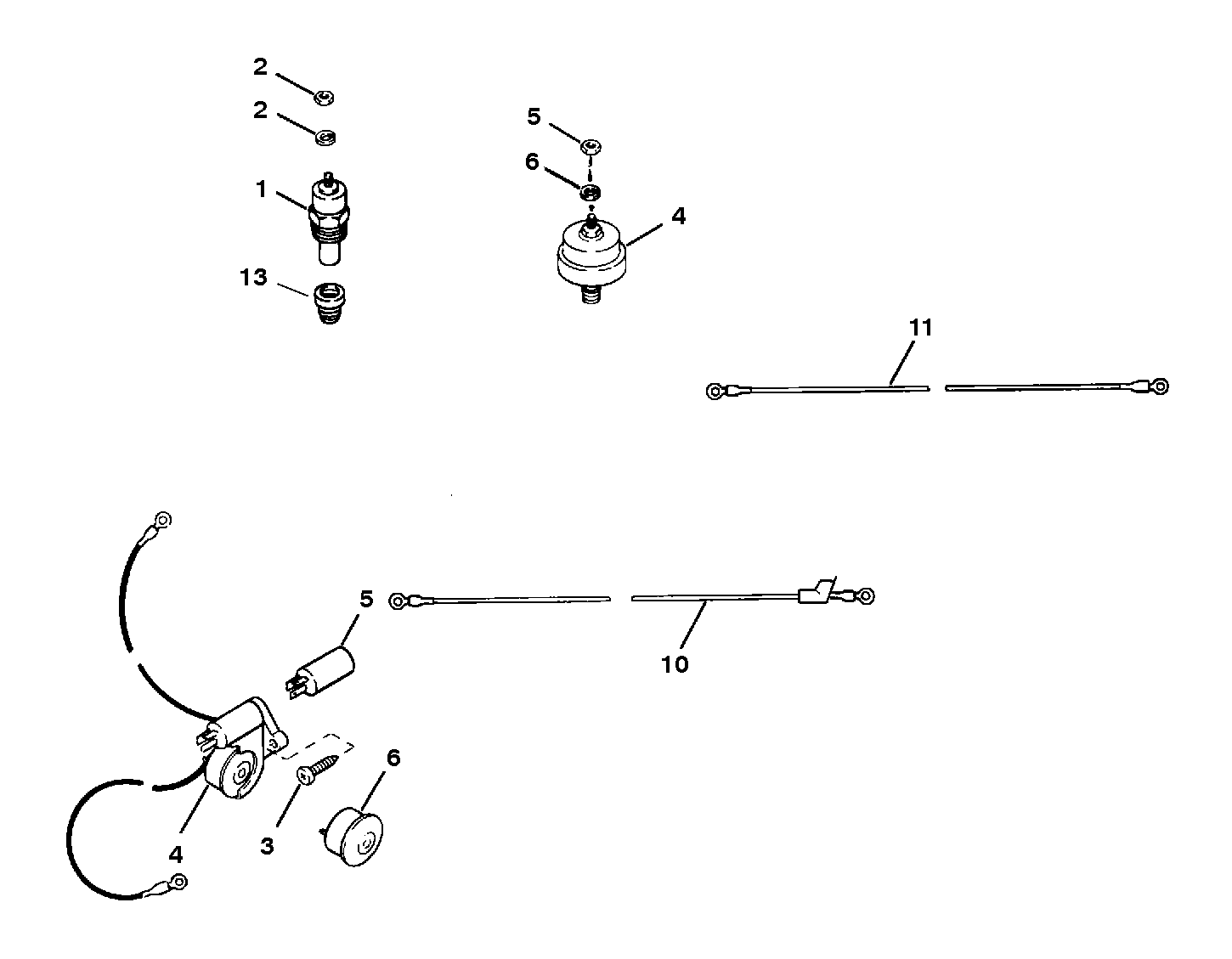

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superseded From Special Notes
1 48952         SWITCH ASSEMBLY-Water Temperature 1

2 13-26996         LOCKWASHER (#10)-Tempersture Switch 1

3 11-45076         NUT (#10-32)-Temperature Switch 1

4 87-805605A1         SWITCH ASSEMBLY-Pressure 1

5 11-68219         NUT (#10-32)-Pressure Switch Terminal 1

6 13-26996         LOCKWASHER (#10) 1

7 816492A14         HOUSING KIT-Buzzer 1 86047A11 (WITH TWO RING CONNECTORS) Please note - this is the new style buzzer, not horn & timer
8 816492A14         TIMER-Temperature Buzzer 1 86045 Please note - this is the new style buzzer, not horn & timer
9 68878A6         HORN ASSEMBLY 1
No longer made, limited availability
10 10-69013         SCREW (#10-16 x .875) 2

11 84-86044A6         CABLE ASSEMBLY (20.00 Ft.) (Tan/Blue) (2 Rings) 1   This Part is No Longer Available
7 816492A14         HOUSING KIT-Buzzer 1 86047A16 (WITH 1 RING - 1 SPADE CONNECTOR) Please note - this is the new style buzzer, not horn & timer
8 816492A14         TIMER-Temperature Buzzer 1 86045 Please note - this is the new style buzzer, not horn & timer
9 68878A6         HORN ASSEMBLY 1
No longer made, limited availability
11 84-86044A11         CABLE ASSY (20.00 Ft.) (Tan/Blue) (1 Ring - 1 Spade) 1   This Part is No Longer Available
12 84-86044A4         CABLE ASSEMBLY (36.00 In.) (Tan/Blue) 1   This Part is No Longer Available
12 84-88032A6         CABLE ASSEMBLY (Tan/Blue) (Harness to Sender) 1   This Part is No Longer Available
13 22-92949         BUSHING-Reducer 1   This Part is No Longer Available
