450 (Gen 5) GM 454 V8 1995-1996 - Serial 0F347100 Thru 0F347277 - Thermostat Housing

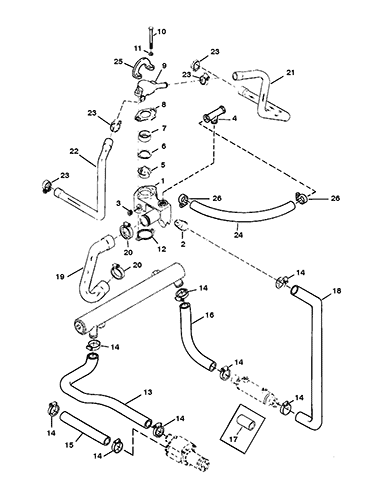

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superseded From Special Notes
1 87290A4         HOUSING ASSEMBLY-Thermostat 1

2 23-47511         SLEEVE 1

3 22-32803         PLUG (.375)-Pipe 2

4 22-98477A2         VALVE ASSEMBLY 1

5 807252T1         THERMOSTAT (140 DEGREES) 1 8072521
6 27-47510         GASKET-Thermostat 1
1
7 23-47508T         SLEEVE-Thermostat 1 23-47508
8 27-418122         GASKET-Thermostat Cover 1
1
9 47441A1         COVER-Thermostat 1

10 10-14164         SCREW (.375-16 x 4.375) 2

11 12-20553         WASHER 2

12 27-530451         GASKET-Thermostat Housing 1
1
13 32-848178         HOSE- Pump to Cooler 1

13 32-821736         HOSE-Water Pump to Oil Cooler 1

14 54-180766         CLAMP 8

15 32-1743565         HOSE-Sea Pump to Drive Unit 1

16 32-848956         HOSE-Oil Cooler to Oil Cooler 1 32-12818
17 22-13177         TUBE-Water Hose 1
(NON POWER STEERING)
18 32-896998         HOSE-Oil Cooler to Thermostat Housing 1 32-64346
19 32-897181         HOSE-Thermostat Housing to Water Pump 1

20 54-180768         CLAMP 2

21 32-897491         HOSE-Thermostat Cover 1
(PORT)
22 32-897301         HOSE-Thermostat Cover 1
(STARBOARD)
23 54-180764         CLAMP 8

24 32-8M0062614         HOSE (48.00 In. Bulk) (Cut 17.00 In.) 2 32-3322070
24 32-847764A2         HOSE ASSEMBLY (17.00 In.) 2   This Part is No Longer Available
25 12552         LIFTING EYE 1

26 54-84775218         CLAMP-Hose 4

- 27-818572A98         Gasket Set - 27-818572A94
