450 (Gen 5) GM 454 V8 1995-1996 - Serial 0F347100 Thru 0F347277 - Cylinder Head And Rocker Cover

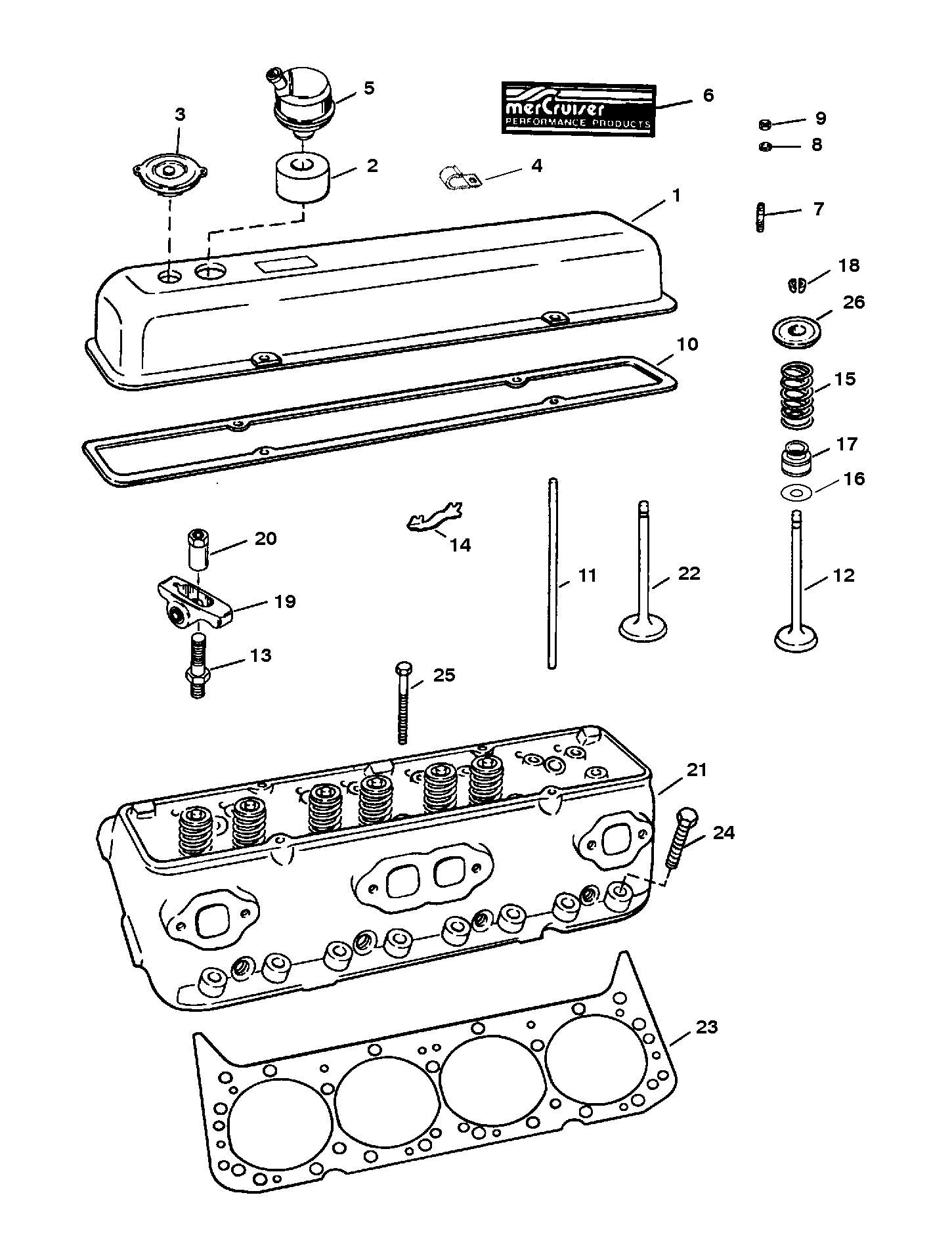

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando AC-155603)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft, Pistons And Conn Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components (Bravo)
- Exhaust Manifold – Elbow
- Exhaust Plate
- Flywheel Housing (Bravo Driveshaft Models)
- Flywheel Housing (Bravo Plug-In Models)
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Mount Plates
- Oil Cooler - Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump Assembly
- Shift Bracket
- Starter And Alternator
- Starter Assembly (50-17251A3)
- Starter Assembly (50-806964A3) (2.875 In. Dia. End Cap)
- Starter Assembly (50-808011A1)
- Starter Assembly (50-99418A2) (3.500 In. Dia. End Cap)
- Thermostat Housing
- Wiring Harness And Electrical Components
| Note: WHEN INSTALLING SEAL ON VALVE, REMOVE SPRING CLIP FROM TOP OF SEAL AND DISCARD. | |||||||||
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superseded From | Special Notes |
| 1 | 821948T4 | COVER ASSEMBLY-Rocker | 2 | 821948A4 | This Part is No Longer Available | ||||
| 2 | 25-49767 | GROMMET-Rocker Cover | 2 | This Part is No Longer Available No longer made, limited availability | |||||
| 3 | 36-811569 | CAP-Oil Filler | 2 | ||||||
| 4 | 54-642352 | J CLIP-Choke Wire | 2 | ||||||
| 5 | 41598T | BREATHER-Rocker Cover | 2 | 14902 | This Part is No Longer Available | ||||
| 6 | 37-818991 | DECAL | 2 | ||||||
| 7 | 16-56766 | STUD-Rocker Cover | 14 | ||||||
| 8 | 12-35462 | WASHER | 14 | ||||||
| 9 | 11-35888 | 676-9-72001 | 700-21180 | NUT (.250-28) | 14 | ||||
| 10 | 27-14765 | 676-9-61311 | GASKET-Rocker Cover | 2 | 1 | ||||
| 11 | 848262 | ROD-Valve Push | 8 | (INLET) | |||||
| 11 | 848264 | ROD-Valve Push | 8 | (EXHAUST) | |||||
| 12 | 843080 | VALVE-Exhaust | 8 | 13024 | |||||
| 13 | 16-821836 | STUD-Valve Rocker Arm | 16 | ||||||
| 14 | 881686 | GUIDE-Push Rod | 8 | 811586 | |||||
| 15 | 24-845617A2 | SPRING-Valve | 16 | 24-848159 | |||||
| 16 | 15-845669 | SHIM-Valve Spring (.015) | AR | 15-54531 | 5 | ||||
| 16 | 15-77624 | SHIM-Valve Spring (.030) | AR | 5 | |||||
| 17 | 26-69285 | SEAL-Valve | 16 | (SEE NOTE BELOW) 1 | |||||
| 18 | 8M0042989 | KEY-Valve Stem | 32 | 960281 | |||||
| 19 | 69304T | ARM-Valve Rocker | 16 | 69304 | This Part is No Longer Available | ||||
| 20 | 11-848610 | NUT-Valve Rocker Arm | 16 | 11-44481 | |||||
| 21 | 938-826363T1 | HEAD-Cylinder (.437) | 2 | 938-8263631 | This Part is No Longer Available | ||||
| 22 | 821024T | VALVE-Inlet (2.250 Dia.) | 8 | 821024 | (STANDARD) | ||||
| 23 | 879150139 | GASKET-Cylinder Head | 2 | 27-811546 | 1 | ||||
| 24 | 10-8M0000463 | BOLT (2.00)-Cylinder Head | 8 | 10-491061 | |||||
| 25 | 10-8M0000482 | BOLT (4.125)-Cylinder Head | 24 | 10-49105 | |||||
| 26 | 42303 | RETAINER | 16 | This Part is No Longer Available | |||||
| - | 27-818572A98 | Gasket Set | - | 27-818572A94 | |||||
