MX 6.2L MPI HORIZON MIE - Serial 0M317000 Thru 0M398394 - Closed Cooling System

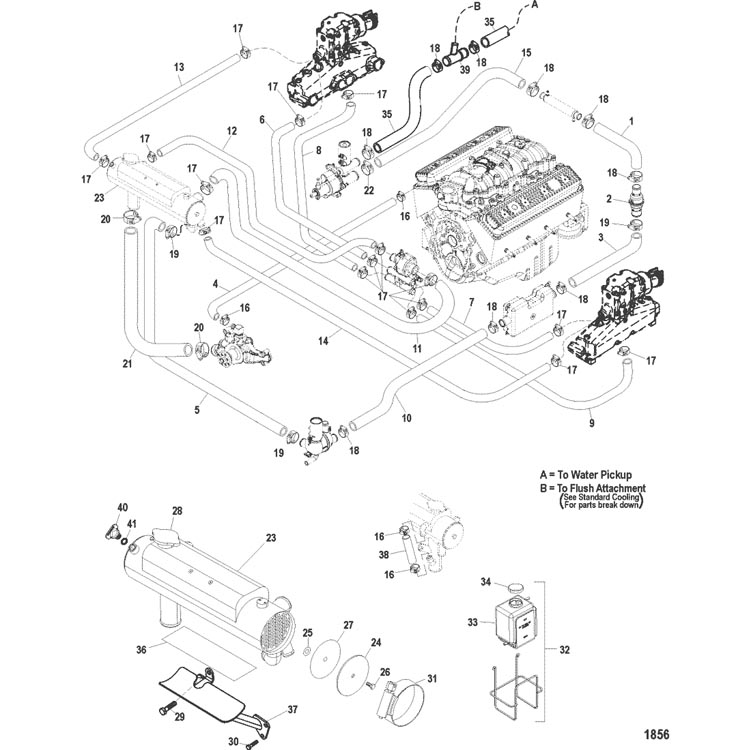

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator and Brackets
- Closed Cooling System
- Cylinder Block, Camshaft And Crankshaft
- Cylinder Block-Flywheel Housing
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Components
- Exhaust Manifold And Elbow
- Front Cover And Circulating Pump
- Fuel Filter And Boost Pump
- Fuel Pump And Fuel Cooler
- Intake Manifold And Fuel Rail
- Oil Pan And Oil Pump
- Pistons And Connecting Rods
- Remote Oil Filter
- Sea Water Pump Assembly
- Standard Cooling System
- Starter Motor
- Thermostat And Housing
- Throttle Body
- Transmission And Engine Mounting(Borg-Warner 5000)
- Transmission And Engine Mounting(Borg-Warner 71C and 72C)
- Transmission And Engine Mounting(Hurth 630)
- Transmission And Related Parts(Borg-Warner 5000)
- Transmission And Related Parts(Borg-Warner 71C and72C)
- Transmission And Related Parts(Hurth 630)
- Transmission(Walter V-Drive)
- Water Distribution Housing
- Water Drain-Air Manifold And Air Pump
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 32-863489 | HOSE, Tansmission Cooler to Check Valve | 1 | ||||||
| 2 | 21-864206A1 | CHECK VALVE ASSEMBLY | 1 | ||||||
| 3 | 32-863623 | HOSE, Check Valve to Fuel Cooler | 1 | ||||||
| 4 | 32-864551 | HOSE, Intake Bypass to Circulating Pump | 1 | ||||||
| 5 | 32-864431 | HOSE, Distribution Fitting to Heat Exchanger | 1 | ||||||
| 6 | 32-864539 | HOSE, Thermostat Housing to Upper Manifold | 1 | ||||||
| 6 | 32-864539 | HOSE, Thermostat Housing to Upper Manifold | 1 | ||||||
| 6 | 32-864956 | HOSE, Thermostat Housing to Upper Manifold | 1 | ||||||
| 7 | 32-864552 | HOSE, Thermostat Housing to Upper Manifold | 1 | ||||||
| 7 | 32-864552 | HOSE, Thermostat Housing to Upper Manifold | 1 | ||||||
| 7 | 32-864954 | HOSE, Thermostat Housing to Upper Manifold | 1 | ||||||
| 8 | 32-864509 | HOSE | 1 | ||||||
| 9 | 32-864508 | HOSE, Port Manifold Drain | 1 | ||||||
| 10 | 32-863670 | HOSE, Fuel Cooler to Accumulator Housing | 1 | ||||||
| 11 | 32-864506 | HOSE, Heat Exchanger to Thermostat Housing | 1 | ||||||
| 12 | 32-864507 | HOSE, Heat Exchanger to Thermostat Housing | 1 | ||||||
| 13 | 32-864955 | HOSE, Heat Exchanger to Starboard Elbow | 1 | ||||||
| 13 | 32-864544 | HOSE, Heat Exchanger to Starboard Elbow | 1 | ||||||
| 13 | 32-864544 | HOSE, Heat Exchanger to Starboard Elbow | 1 | ||||||
| 13 | 32-864544 | HOSE, Heat Exchanger to Starboard Elbow | 1 | ||||||
| 13 | 32-864974 | HOSE, Heat Exchanger to Starboard Elbow | 1 | ||||||
| 14 | 32-864726 | HOSE, Heat Exchanger to Port Elbow | 1 | ||||||
| 14 | 32-864726 | HOSE, Heat Exchanger to Port Elbow | 1 | ||||||
| 14 | 32-864953 | HOSE, Heat Exchanger to Port Elbow | 1 | ||||||
| 14 | 32-864543 | HOSE, Heat Exchanger to Port Elbow | 1 | ||||||
| 14 | 32-864726 | HOSE, Heat Exchanger to Port Elbow | 1 | ||||||
| 14 | 32-864543 | HOSE, Heat Exchanger to Port Elbow | 1 | ||||||
| 14 | 32-864543 | HOSE, Heat Exchanger to Port Elbow | 1 | ||||||
| 14 | 32-864973 | HOSE, Heat Exchanger to Port Elbow | 1 | ||||||
| 15 | 32-863611 | HOSE, Sea Pump to Trans Cooler | 1 | ||||||
| 16 | 54-815504212 | CLAMP, Worm Gear, Hose | 1 | ||||||
| 17 | 54-815504216 | CLAMP, Worm Gear (1.56 Diameter), Hose | 1 | ||||||
| 18 | 54-815504222 | CLAMP, Worm Gear (1.98 DIameter), Hose | 1 | ||||||
| 19 | 54-815504228 | CLAMP, Worm Gear, Hose | 1 | 54-32781 54-853232 54-853432 |
|||||
| 20 | 54-815504232 | CLAMP, Worm Gear (2.50 Diameter), Hose | 1 | ||||||
| 21 | 32-864886 | HOSE, Heat Exchanger to Circulating Pump | 1 | 864432 | |||||
| 22 | 54-815504220 | CLAMP, Worm Gear, Hose | 1 | 54-32880 54-32780 54-803620 54-882355 |
|||||
| 23 | 864395T01 | HEAT EXCHANGER, Closed Cooling | 1 | 864395T | |||||
| 24 | 864708 | COVER, End, Heat Exchanger | 2 | ||||||
| 25 | 25-818679 | O-RING | 4 | ||||||
| 26 | 10-94247 | SCREW, (.375-16 x .750) Stainless Steel | 2 | ||||||
| 27 | 25-8M0084884 | SEAL, End Cover | 2 | 864707 | |||||
| 28 | 36-8148791 | CAP, Pressure | 1 | ||||||
| 29 | 10-805559 | SCREW, (.375-16 x .875) Stainless Steel | 1 | ||||||
| 30 | 10-34353 | SCREW, (.375-16 x 1.00) | 3 | ||||||
| 31 | 54-815504396 | CLAMP, Worm Gear, Heat Exchanger | 1 | ||||||
| 32 | 71587A10 | RECOVERY KIT, Coolant | 1 | ||||||
| NS | 32-774572 | HOSE, (48.00 Inches Bulk) | 1 | ||||||
| 33 | 71587A11 | BOTTLE, Plastic, Coolant Recovery Kit | 1 | ||||||
| 34 | 72508 | CAP, Coolant Recovery Bottle | 1 | ||||||
| 35 | 32-8M0062666 | HOSE, (96.00 Inches Bulk), Sea Water Pump to Water Pick UP | 1 | 1743579 | |||||
| 36 | 18431 | PAD, Heat Exchanger | 1 | ||||||
| 37 | 864429T | BRACKET, Cooler | 1 | ||||||
| 38 | 32-864533 | HOSE | 1 | ||||||
| 39 | 22-862993 | FITTING, Y, (2) 1-1/4 In. Hose Barbs / (1) 3/4 In. Hose Barb, Drain | 1 | ||||||
| 40 | 22-806608A02 | PLUG KIT, (.500-13) Royal Blue | 1 | 806608A1 | |||||
| 41 | 25-32509 | O-RING, (.489 x .070) | 1 | ||||||
| NS | 19-8M0074364 | COVER, Hose Clamp End | AR | 8079923 |
