Your shopping cart is currently empty.
MX 6.2L MPI HORIZON MIE - Serial 0M317000 Thru 0M398394 - Alternator and Brackets

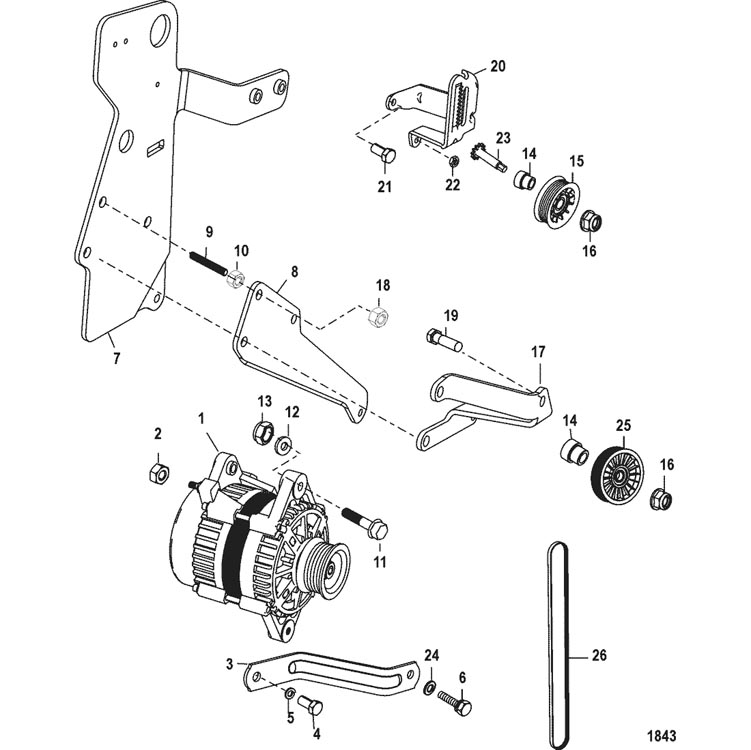

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator and Brackets
- Closed Cooling System
- Cylinder Block, Camshaft And Crankshaft
- Cylinder Block-Flywheel Housing
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Components
- Exhaust Manifold And Elbow
- Front Cover And Circulating Pump
- Fuel Filter And Boost Pump
- Fuel Pump And Fuel Cooler
- Intake Manifold And Fuel Rail
- Oil Pan And Oil Pump
- Pistons And Connecting Rods
- Remote Oil Filter
- Sea Water Pump Assembly
- Standard Cooling System
- Starter Motor
- Thermostat And Housing
- Throttle Body
- Transmission And Engine Mounting(Borg-Warner 5000)
- Transmission And Engine Mounting(Borg-Warner 71C and 72C)
- Transmission And Engine Mounting(Hurth 630)
- Transmission And Related Parts(Borg-Warner 5000)
- Transmission And Related Parts(Borg-Warner 71C and72C)
- Transmission And Related Parts(Hurth 630)
- Transmission(Walter V-Drive)
- Water Distribution Housing
- Water Drain-Air Manifold And Air Pump
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 863077T | 676-9-19111 | 602-20119 | ALTERNATOR ASSEMBLY, Black (65 Amp)(50mm Pulley) | 1 | ||||
| 2 | 11-400212 | NUT, (M6) Stainless Steel | 2 | 11-16825 11-400202 11-95377 11-95367 |
|||||
| 3 | 807750T | BRACE | 1 | ||||||
| 4 | 10-98261 | SCREW, (.375-16 x .750) | 1 | ||||||
| 5 | 13-35048 | 700-21495 | LOCKWASHER, (.375) | 1 | |||||
| 6 | 10-40001134 | SCREW, (M8 x 25) | 1 | ||||||
| 7 | 8645581 | BRACKET, Alternator and lifting Eye | 1 | ||||||
| 7 | 864558 | BRACKET, Alternator and lifting Eye | 1 | ||||||
| 7 | 863646 | BRACKET, Alternator and lifting Eye | 1 | ||||||
| 7 | 8636461 | BRACKET, Alternator and lifting Eye | 1 | ||||||
| 8 | 862058T | BRACE, Alternator | 1 | ||||||
| 9 | 16-862615 | STUD, (.375-16 x 2.25) | 3 | ||||||
| 10 | 11-32219 | NUT, (.375-16) | 3 | ||||||
| 11 | 10-828213 | SCREW, (.312-18 x 1.500) Hex Flange | 2 | ||||||
| 12 | 12-57792 | WASHER | 2 | ||||||
| 13 | 11-26484 | NUT, (.312-18) | 2 | 859119 | |||||
| 14 | 865193 | BUSHING | 2 | ||||||
| 15 | 865444T | PULLEY, (3.50 Inch Diameter) | 2 | ||||||
| 15 | 807757T | PULLEY ASSEMBLY, Idler - Black (3 Inch Diameter) | 2 | ||||||
| 16 | 11-859135 | NUT, (.437-20) Brass/Nickel Plated | 2 | ||||||
| 17 | 807753T1 | BRACKET, Idler | 1 | ||||||
| 19 | 10-816601 | SCREW, (.437-20 x 1.500) | 1 | ||||||
| 20 | 807767T | BRACKET, Idler Adjustment | 1 | ||||||
| 22 | 11-29250 | NUT, (.312-24) | 1 | ||||||
| 23 | 43-8183812 | PINION STUD, (.437-20) Stainless Steel | 1 | ||||||
| 24 | 12-20084 | WASHER, (.328 x .562 x .062) | 1 | ||||||
| 25 | 864625T | PULLEY (4-1/4 In. Diameter) | 1 | ||||||
| 26 | 57-865615Q05 | BELT, Serpentine | 1 | 865615005 |
|||||
| 26 | 57-865615Q10 | BELT, Serpentine | 1 | 865615010 |
