MX 6.2L MPI HORIZON MIE - Serial 0M317000 Thru 0M398394 - Transmission And Related Parts(Hurth 630)

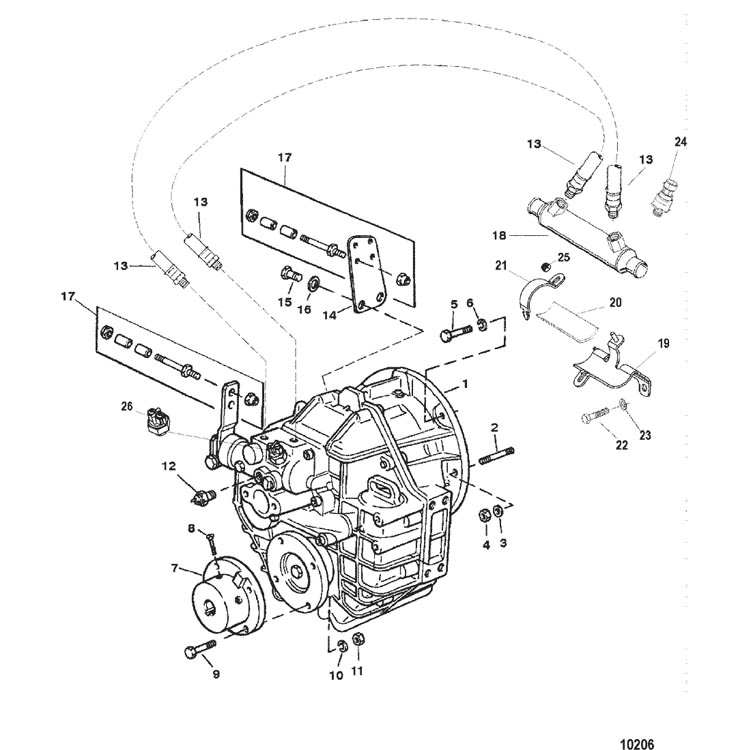

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator and Brackets
- Closed Cooling System
- Cylinder Block, Camshaft And Crankshaft
- Cylinder Block-Flywheel Housing
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Components
- Exhaust Manifold And Elbow
- Front Cover And Circulating Pump
- Fuel Filter And Boost Pump
- Fuel Pump And Fuel Cooler
- Intake Manifold And Fuel Rail
- Oil Pan And Oil Pump
- Pistons And Connecting Rods
- Remote Oil Filter
- Sea Water Pump Assembly
- Standard Cooling System
- Starter Motor
- Thermostat And Housing
- Throttle Body
- Transmission And Engine Mounting(Borg-Warner 5000)
- Transmission And Engine Mounting(Borg-Warner 71C and 72C)
- Transmission And Engine Mounting(Hurth 630)
- Transmission And Related Parts(Borg-Warner 5000)
- Transmission And Related Parts(Borg-Warner 71C and72C)
- Transmission And Related Parts(Hurth 630)
- Transmission(Walter V-Drive)
- Water Distribution Housing
- Water Drain-Air Manifold And Air Pump
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 863744T2 | TRANSMISSION, (1.5:1 Ratio) | 1 | ||||||
| 1 | 863744T3 | TRANSMISSION, (2.0:1 Ratio) | 1 | ||||||
| 1 | 863744T4 | TRANSMISSION, (2.50:1 Ratio) | 1 | ||||||
| 1 | 863744T5 | TRANSMISSION, (2.70:1 Ratio) | 1 | ||||||
| 1 | 863745T2 | TRANSMISSION, (1.5:1 Ratio) | 1 | ||||||
| 1 | 863745T3 | TRANSMISSION, (2.0:1 Ratio) | 1 | ||||||
| 1 | 863745T4 | TRANSMISSION, (2.5:1 Ratio) | 1 | ||||||
| 2 | 16-805259 | STUD | 4 | ||||||
| 3 | 12-22248 | WASHER, (.453 x .875 x .060) | 4 | ||||||
| 4 | 11-82670815 | NUT, (.437-20) | 4 | ||||||
| 5 | 10-47462 | SCREW, (.437-14 x 1.250) | 2 | ||||||
| 6 | 13-32993 | LOCKWASHER, (.437) | 2 | ||||||
| 7 | 87917A1 | FLANGE ASSEMBLY, (4.00 x 1.00) | OPT | No Longer Available | |||||
| 7 | 79476A1 | FLANGE ASSEMBLY, (5.00 x 1.00) | OPT | ||||||
| 7 | 79476A2 | FLANGE ASSEMBLY, (5.00 x 1.125) | OPT | No Longer Available | |||||
| 7 | 79476A3 | FLANGE ASSEMBLY, (5.00 x 1.25) | OPT | ||||||
| 7 | 79476A4 | FLANGE ASSEMBLY, (5.00 x 1.375) | OPT | ||||||
| 7 | 79476A5 | FLANGE ASSEMBLY, (5.00 x 1.50) | OPT | ||||||
| 7 | 79476A6 | FLANGE ASSEMBLY, (5.00 x 1.75) | OPT | ||||||
| 7 | 79476A7 | FLANGE ASSEMBLY, (5.00 x 2.00) | OPT | No Longer Available | |||||
| 8 | 10-60171 | SCREW, (.375-16 x 1.250), Flange | 2 | ||||||
| 8 | 10-60169 | SCREW, (.375-16 x .750), Flange | 2 | ||||||
| 9 | 10-68101 | SCREW, (.375-16 x 1.375) | 4 | ||||||
| 9 | 10-805159 | SCREW, (.437-20 x 1.500) | 4 | ||||||
| 10 | 13-35048 | LOCKWASHER, (.375) | 4 | ||||||
| 10 | 13-32993 | LOCKWASHER, (.437) | 4 | ||||||
| 11 | 11-32219 | NUT, (.375-16) | 4 | ||||||
| 11 | 11-22024 | NUT, (.437-14) | 4 | ||||||
| 12 | 87-88031 | SWITCH ASSEMBLY, Temperature | 1 | ||||||
| 13 | 32-8054781 | HOSE, (19.50), Oil | 2 | ||||||
| 14 | 806238 | BRACKET, Shift Linkage | 1 | ||||||
| 15 | 10-40001124 | SCREW, (M8 x 14) | 2 | ||||||
| 16 | 13-400247 | LOCKWASHER, (M8) | 2 | ||||||
| 17 | 16-97477A3 | STUD KIT | 2 | ||||||
| 18 | 863832T01 | COOLER, Oil | 1 | 863832T | |||||
| 19 | 863850 | BRACKET, Transmission Oil Cooler | 1 | ||||||
| 20 | 772233 | PAD | 1 | ||||||
| 21 | 807445T | CLAMP | 1 | ||||||
| 22 | 10-37612 | SCREW, (.375-16 x 1.250) | 1 | ||||||
| 23 | 13-35048 | LOCKWASHER, (.375) | 1 | ||||||
| 24 | 8M6000623 | SENSOR, Pressure | 1 | 8818793 | |||||
| 25 | 11-8267088 | NUT, (.250-20) | 1 | ||||||
| 26 | 87-813300 | SWITCH, Neutral Safety | 1 |
