496 Mag Base Model - Serial 0M025000 Thru 0M687082 - Exhaust Manifold (With Water Rail), Elbow, And Riser

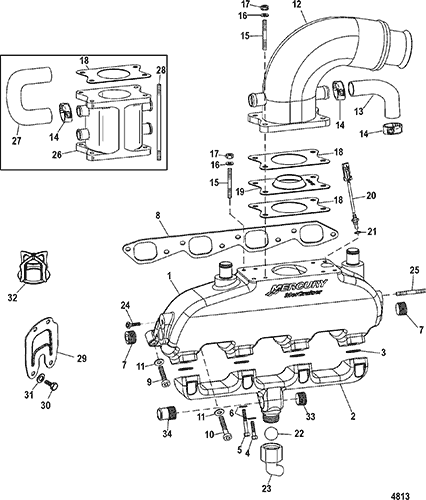

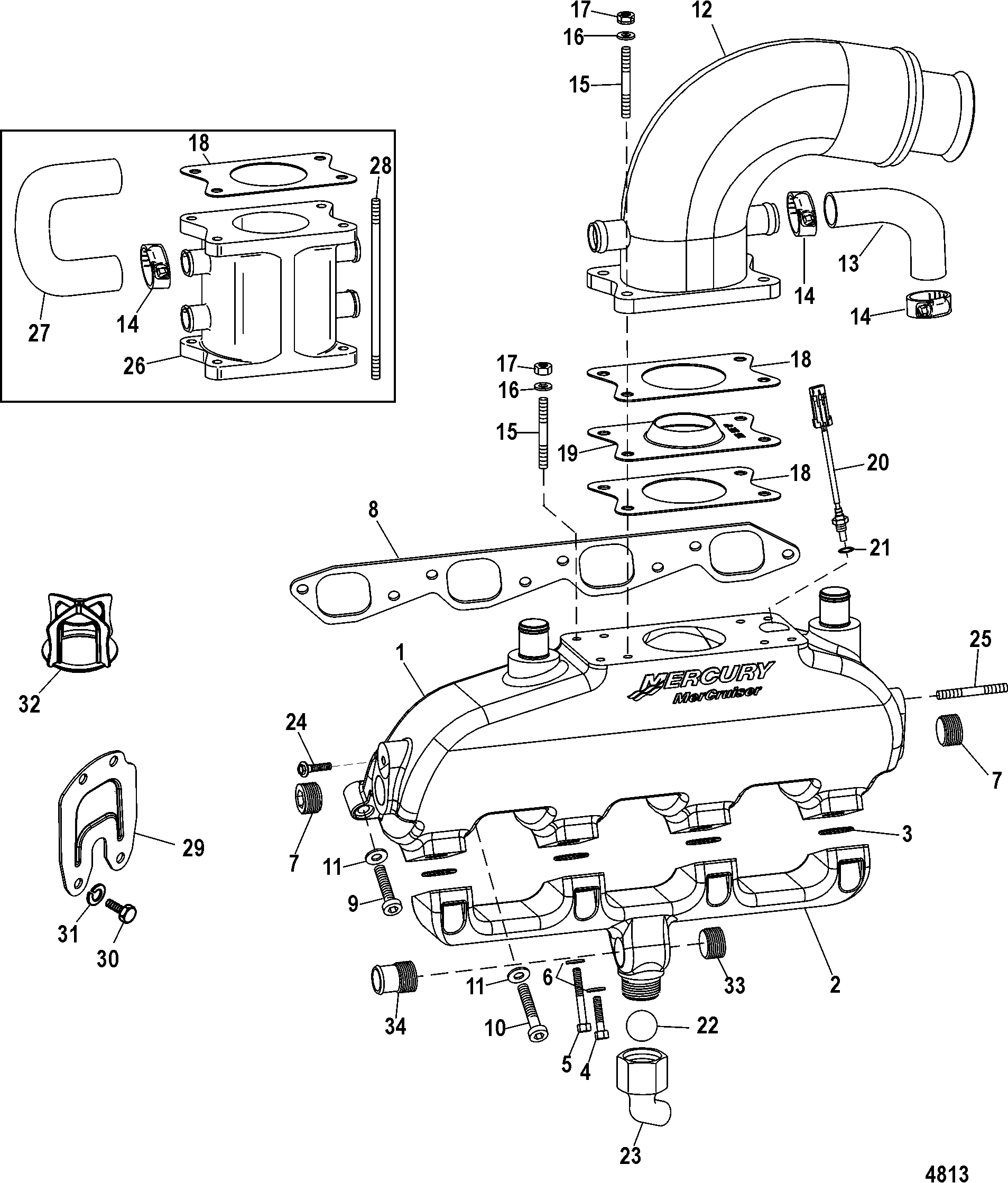

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Block-Camshaft And Pistons
- Block-Crankshaft, Oil Pump, And Front Cover
- Closed Cooling System
- Cylinder Head
- Drive Reservoir And Bracket
- Engine Cover
- Engine Mounts
- Exhaust Manifold (With Water Rail), Elbow, And Riser
- Exhaust Manifold (W-O Water Rail), Elbow, And Riser
- Flywheel Housing
- Fuel Filter And Boost Pump
- Fuel Pump And Fuel Cooler
- Gasket Set Components (27-883231A1), Engine
- Gasket Set Components (27-889924A01), Overhaul
- Intake Manifold
- Lifting Brackets And Wiring Harness
- Mercathode
- Oil Pan And Drain System
- Pcm And Bracket
- Power Steering
- Raw Water Cooling System 1 (0M095324 And Below)
- Raw Water Cooling System 2 (0M095325 And Up)
- Remote Oil System
- Seawater Pump
- Shift Bracket (Digital Throttle-Shift)
- Shift Bracket (Mechanical Shift)(0M659999 And Below)
- Shift Bracket (Mechanical Shift)(0M660000 And Up)
- Smartcraft Sensors And Harnesses
- Starter And Alternator
- Throttle Body (Digital Throttle-Shift)
- Throttle Body (Mechanical Throttle-Shift)
| Ref. | OEM Part # | SEI # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 866178A02 | MANIFOLD ASSEMBLY, Exhaust | 2 | 863120T2 | New, style, no water rail | ||||
| 2 | 862992T1 | RAIL, Water | 1 | ||||||
| 3 | 25-863090 | O-RING | 4 | ||||||
| 4 | 10-4008825 | SCREW, (M6 x 25) | 4 | ||||||
| 5 | 10-4008845 | SCREW, (M6 x 45) | 2 | ||||||
| 6 | 12-22937 | WASHER | 6 | ||||||
| 7 | 22-428611 | 602-98-102-57 | FITTING, Pipe - Brass (.750-14) | 2 | |||||
| 8 | 27-46820 | 676-9-61400 | 700-33760 | GASKET, Exhaust Manifold to Cylinder Head | 2 | 2,3 | |||
| 9 | 10-4008935 | SCREW, (M8 x 35) Stainless Steel | 8 | ||||||
| 10 | 10-4008970 | SCREW, (M8 x 70) Stainless Steel | 8 | ||||||
| 11 | 12-12038 | WASHER | 16 | ||||||
| 12 | 865331A02 | ELBOW, Exhaust | 2 | 865331A01 | (Standard Rise) | ||||
| 12 | 865332A02 | ELBOW, Exhaust | 2 | 865332A01 | (2 Inch Rise) | ||||
| 13 | 32-863095 | HOSE, Elbow to Manifold | 4 | ||||||
| 14 | 54-815504216 | CLAMP, Worm Gear (1.56 Diameter), Hose | 8 | ||||||
| 15 | 16-8204511 | STUD, (M8 x 55) | 3 | ||||||
| 15 | 16-424632 | STUD, (M8 x 37.1) | 9 | ||||||
| 16 | 12-12038 | WASHER | 8 | ||||||
| 17 | 11-4002030 | NUT, (M8) | 8 | ||||||
| 18 | 27-862356 | GASKET, Elbow to Manifold | 4 | ||||||
| 19 | 8M2000433 | TURBULATOR, Exhaust | 2 | 863122 | |||||
| 20 | 889575 | SENSOR ASSEMBLY, Temperature | 2 | 858535 | |||||
| 21 | 25-627021 | O-RING, (.301 x .070) | 1 | ||||||
| 22 | 30-863129 | BALL, Check | 2 | ||||||
| 23 | 863116A1 | CONNECTOR, Water Rail | 2 | ||||||
| 24 | 10-4010716 | SCREW, (M8 x 16) | 1 | ||||||
| 25 | 16-424632 | STUD, (M8 x 37.1) | 1 | ||||||
| 26 | 866768T | RISER, (6 Inch) | 2 | 863124T | |||||
| 27 | 32-863102 | HOSE | 4 | ||||||
| 28 | 16-863121 | STUD, (M8 x 194) | 8 | ||||||
| NS | 19-8079923 | COVER, Hose Clamp End | 8 | ||||||
| 29 | 861776A2 | PLATE KIT, Exhaust Block Off | 1 | ||||||
| 30 | 10-98794 | 602-98-102-35 | 676-9-78129 | 700-28300 | 525-10-98794 | SCREW, (.375-16 x 1.00) | 4 | ||
| 31 | 13-41471 | LOCKWASHER, (.375) | 4 | ||||||
| 32 | 860222A1 | RESONATOR, Exhaust | 1 | ||||||
| 33 | 22-865096 | PLUG, Composite | 2 | ||||||
| 34 | 22-864930 | FITTING, Straight | 2 |
