496 Mag Base Model - Serial 0M025000 Thru 0M687082 - Flywheel Housing

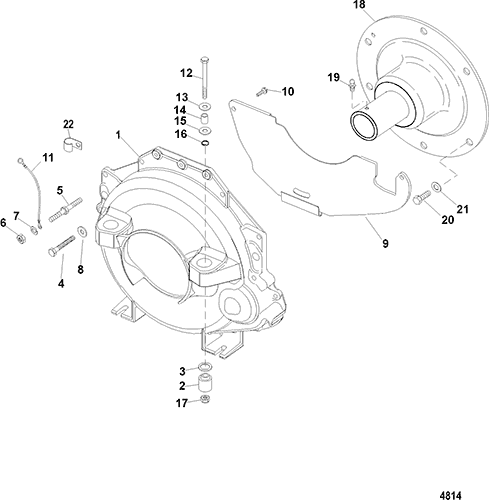

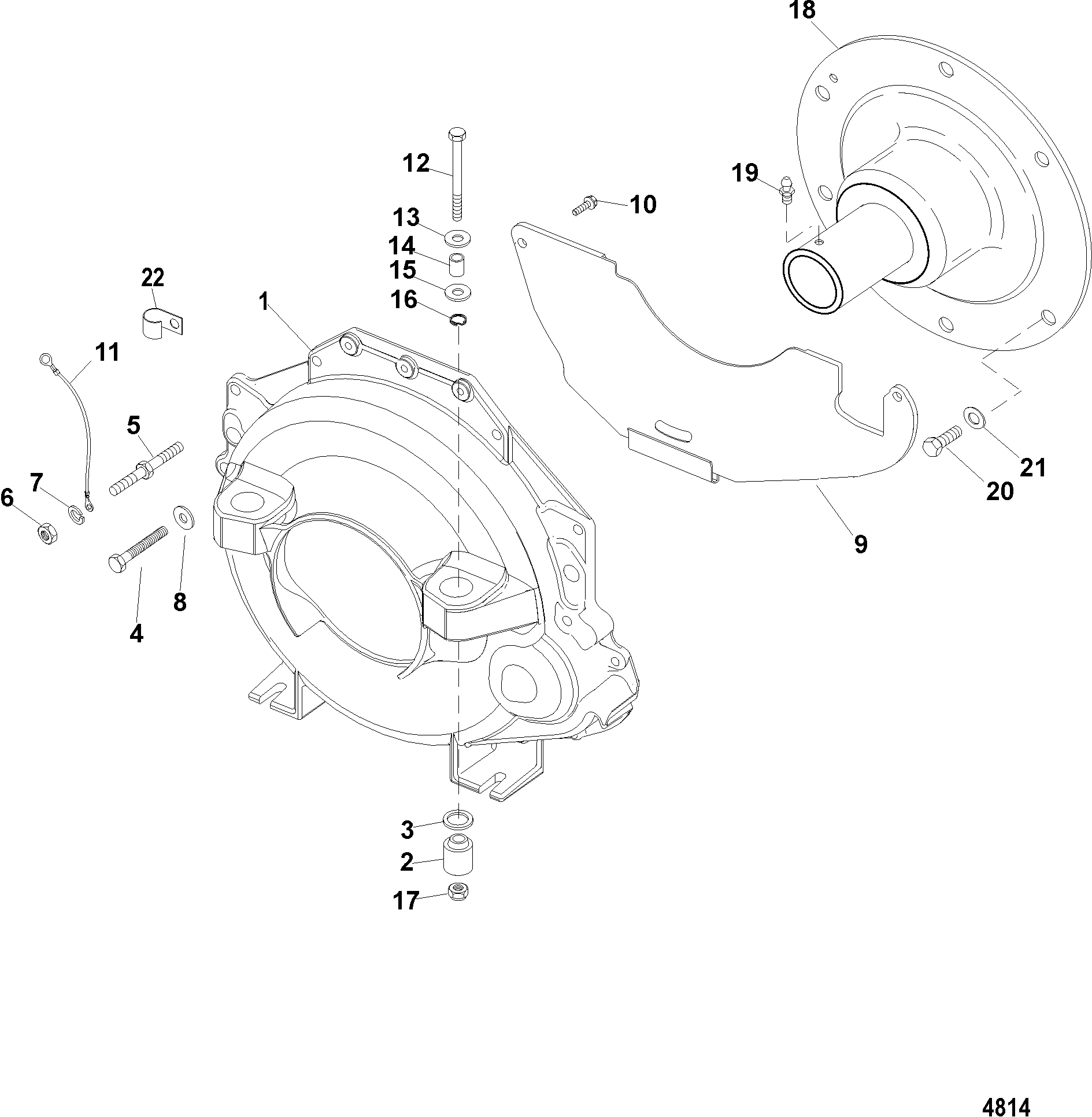

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Block-Camshaft And Pistons
- Block-Crankshaft, Oil Pump, And Front Cover
- Closed Cooling System
- Cylinder Head
- Drive Reservoir And Bracket
- Engine Cover
- Engine Mounts
- Exhaust Manifold (With Water Rail), Elbow, And Riser
- Exhaust Manifold (W-O Water Rail), Elbow, And Riser
- Flywheel Housing
- Fuel Filter And Boost Pump
- Fuel Pump And Fuel Cooler
- Gasket Set Components (27-883231A1), Engine
- Gasket Set Components (27-889924A01), Overhaul
- Intake Manifold
- Lifting Brackets And Wiring Harness
- Mercathode
- Oil Pan And Drain System
- Pcm And Bracket
- Power Steering
- Raw Water Cooling System 1 (0M095324 And Below)
- Raw Water Cooling System 2 (0M095325 And Up)
- Remote Oil System
- Seawater Pump
- Shift Bracket (Digital Throttle-Shift)
- Shift Bracket (Mechanical Shift)(0M659999 And Below)
- Shift Bracket (Mechanical Shift)(0M660000 And Up)
- Smartcraft Sensors And Harnesses
- Starter And Alternator
- Throttle Body (Digital Throttle-Shift)
- Throttle Body (Mechanical Throttle-Shift)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | SEI # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 865657A04 | 620-91200 | HOUSING ASSEMBLY, Flywheel, Flywheel | 1 | 12675A7 | ||||
| 2 | 865330A02 | MOUNT, Rubber | 2 | 88791T | SN# 0M659999 & Below | ||||
| 2 | 865330A02 | MOUNT, Rubber | 1 | 865330A01 | SN# 0M660000 & Up | ||||
| 3 | 23-99322 | 700-21050 | SPACER | 2 | |||||
| 4 | 10-40001197 | SCREW, (M10 x 35) | 3 | ||||||
| 4 | 10-40001203 | SCREW, (M10 x 45) | 1 | ||||||
| 5 | 16-861577 | STUD, Double Ended Metric (M10), Grounding | 2 | ||||||
| 6 | 11-40125100 | NUT, (M10) | 2 | ||||||
| 7 | 13-400248 | LOCKWASHER, (M10) | 2 | ||||||
| 8 | 12-34567 | WASHER | 1 | ||||||
| 9 | 807260A2 | COVER KIT, Flywheel | 1 | ||||||
| NS | 11-807296 | NUT, (.250-20) | 2 | ||||||
| 10 | 10-76596 | SCREW, (.250-20 x 1.250) | 2 | ||||||
| 11 | 84-62826A6 | CABLE ASSEMBLY, Ground (13.00 Inches) Black | 1 | ||||||
| 12 | 10-97934 | 700-19310 | 602-9G-116-04 | SCREW, (.500-20 x 5.370) Special | 2 | ||||
| 13 | 12-35777 | 700-19320 | 602-9G-116-05 | WASHER, (.5156 x 1.375 x .125) Aluminium | 2 | ||||
| 14 | 23-99299 | 700-19340 | 602-9G-116-06 | SPACER, (.520 x .870 x .630) | 2 | ||||
| 15 | 12-32834 | 602-9G-116-10 | 12-32834 | WASHER, (.9375 x 1.750 x .172) | 2 | SN# 0M659999 & Below | |||
| 16 | 13-33734 | 700-19330 | 602-9G-116-07 | LOCKWASHER, (.500) | 2 | SN# 0M659999 & Below | |||
| 17 | 11-863332 | 700-19350 | NUT, (.500-20) Aluminium | 2 | |||||
| 18 | 861523A7 | COUPLER ASSEMBLY, Engine - Long Steel Hub | 1 | ||||||
| 19 | 22-74036 | FITTING, Grease | 1 | ||||||
| 20 | 10-4010830 | SCREW, (M10 x 15) Hex Flange - Stainless Steel | 6 | ||||||
| 21 | 12-25909 | WASHER, (.406 x .812 x .065) | 6 | ||||||
| 22 | 54-78945 | J CLAMP, Harness Support | 1 |
