496 Mag Base Model - Serial 0M025000 Thru 0M687082 - Oil Pan And Drain System

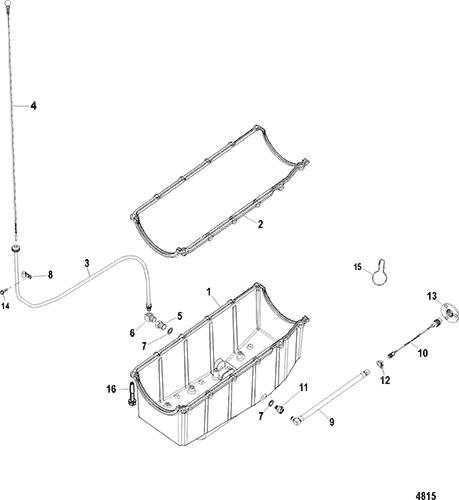

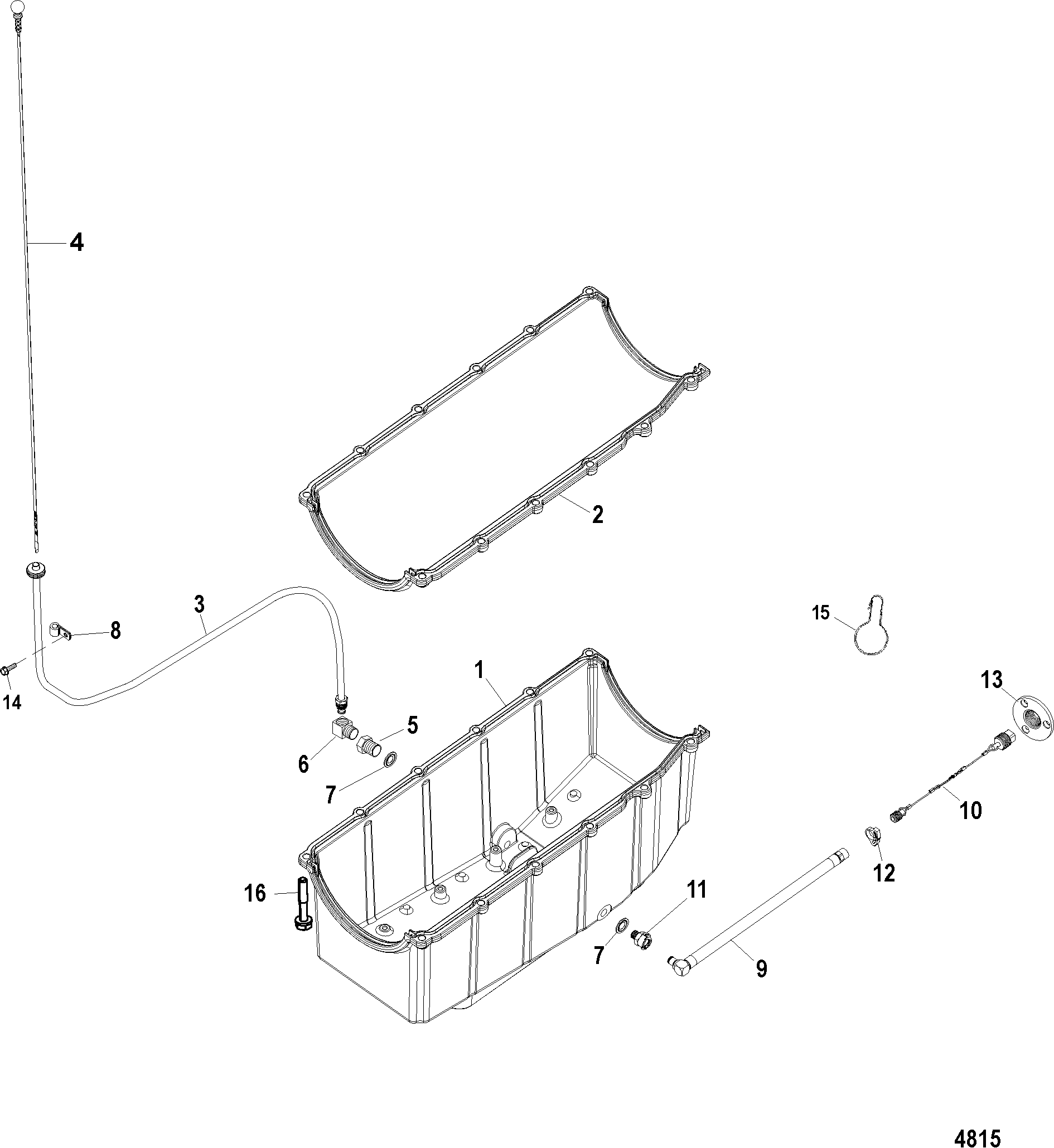

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Block-Camshaft And Pistons
- Block-Crankshaft, Oil Pump, And Front Cover
- Closed Cooling System
- Cylinder Head
- Drive Reservoir And Bracket
- Engine Cover
- Engine Mounts
- Exhaust Manifold (With Water Rail), Elbow, And Riser
- Exhaust Manifold (W-O Water Rail), Elbow, And Riser
- Flywheel Housing
- Fuel Filter And Boost Pump
- Fuel Pump And Fuel Cooler
- Gasket Set Components (27-883231A1), Engine
- Gasket Set Components (27-889924A01), Overhaul
- Intake Manifold
- Lifting Brackets And Wiring Harness
- Mercathode
- Oil Pan And Drain System
- Pcm And Bracket
- Power Steering
- Raw Water Cooling System 1 (0M095324 And Below)
- Raw Water Cooling System 2 (0M095325 And Up)
- Remote Oil System
- Seawater Pump
- Shift Bracket (Digital Throttle-Shift)
- Shift Bracket (Mechanical Shift)(0M659999 And Below)
- Shift Bracket (Mechanical Shift)(0M660000 And Up)
- Smartcraft Sensors And Harnesses
- Starter And Alternator
- Throttle Body (Digital Throttle-Shift)
- Throttle Body (Mechanical Throttle-Shift)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 881653001 | PAN, Oil | 1 | 881653 | 4,5,22,23 | ||||
| NS | 883922 | BAFFLE, Oil Pan | 1 | 22,4,5,23 | |||||
| NS | 10-883923 | SCREW, (M6 x 20 | AR | 4,5,22,23 | |||||
| 2 | 27-881612 | 676-9-61510 | GASKET, Oil Pan | 1 | 3,4,5,22 | ||||
| 3 | 863408 | TUBE, Engine Oil Gauge | 1 | (MCM) | |||||
| 4 | 86194210 | GAUGE, Oil Level | 1 | ||||||
| 5 | 863389A01 | FITTING, Oil Guage Tube | 1 | 22-863389 | |||||
| 6 | 22-19697 | ELBOW | 1 | ||||||
| 7 | 27-49955 | 676-9-60104 | 700-30370 | GASKET, Drain | 2 | 2,3 | |||
| 8 | 54-65653 | CLIP | 1 | ||||||
| 9 | 32-805505A4 | HOSE, Oil Drain | 1 | This Part is NLA from Mercruiser. (DESIGN I- With Quick Connect Hose Assembly) SN# 0M628485 & Below | |||||
| 9 | 32-865281 | HOSE, Oil Drain | 1 | (DESIGN II-Without Quick Connect Hose Assembly) SN# 0M628486 & Up | |||||
| 9 | 32-865280 | HOSE, Oil Drain (Jackshaft Models) | 1 | (DESIGN II-Without Quick Connect Hose Assembly) SN# 0M628486 & Up | |||||
| NS | 25-805063 | O-RING, (.301 x .070) | 2 | ||||||
| 10 | 862827 | TETHER ASSEMBLY | 1 | ||||||
| 11 | 22-862811 | FITTING, Female Quick Disconnect | 1 | (DESIGN I - With Quick Connect Hose Assembly) SN# 0M628485 & Below no longer made, limited availability | |||||
| 12 | 54-863481 | CLAMP | 1 | ||||||
| 13 | 862777 | FLANGE, Drain | 1 | ||||||
| 14 | 10-4000328 | SCREW, (M6 x 16) | 1 | ||||||
| 15 | 54-805524 | CLIP | 1 | ||||||
| 16 | 10-898101392 | BOLT, (M8 x 30) | 13 |
