175 VERADO 4-STROKE 4 CYL - Serial 1B227000 Thru 1B381711 - Oil Pump/Adaptor Plate-Upper

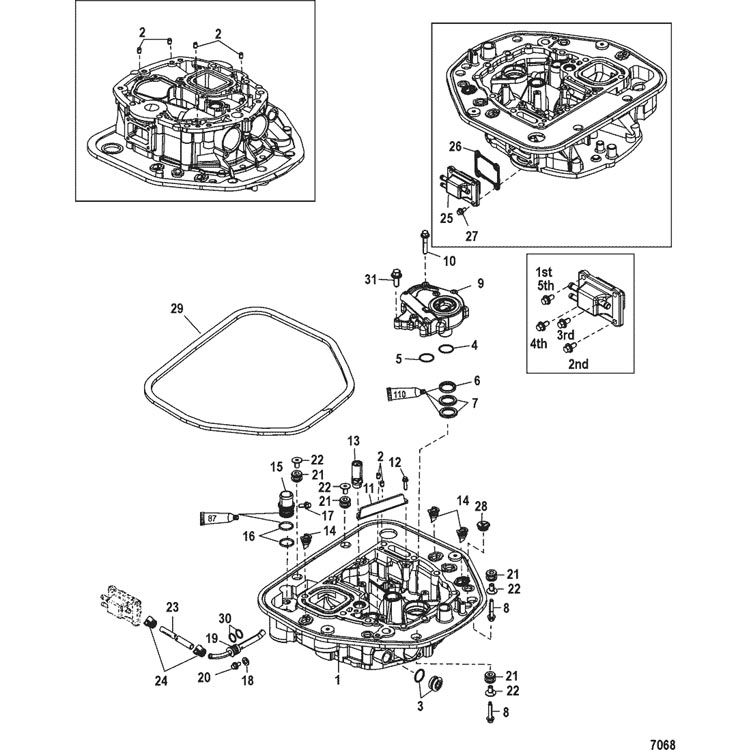

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Adaptor Plate Hose Routings
- Adaptor Plate-Lower
- Alternator/Belt Tensioner Mounting
- Charge Cooler/Intake Manifold
- Charge Cooler/Intake Manifold Hose Routings
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block
- Cylinder Head and Camshaft
- Driveshaft Housing
- Electrical Box Components
- Fuel Supply Module
- Gear Housing(Driveshaft)(Standard/Counter Rotation)
- Gear Housing, Propeller Shaft - Counter Rotation
- Gear Housing, Propeller Shaft - Standard Rotation
- Induction Components
- Oil Pump/Adaptor Plate-Upper
- Port Cylinder Block Components
- Power Trim Components
- Powerhead Gasket Set Components
- Rear Cowl
- Shift Components(Serial Number 1B290522 and Below)
- Shift Components(Serial Number 1B290523 and Up)
- Starboard Cylinder Block/Oil Cooler
- Starter Motor
- Steering Cylinder Assembly
- SuperCharger
- Swivel Bracket and Steering Arm
- Tools
- Tools
- Top Cowl
- Transom Brackets
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 896689A02 | ADAPTOR PLATE ASSEMBLY | 1 | 896689A01 | |||||
| 2 | 17-892228 | PIN, Dowel | 6 | ||||||
| 3 | 19-896951 | PLUG, (24 mm) | 1 | ||||||
| 4 | 25-897134 | O-RING, (1.051 x 1.070) (Inlet) | 1 | ||||||
| 5 | 25-897135 | O-RING, (.864 x .070) (Outlet) | 1 | ||||||
| 6 | 26-8M0033928 | SEAL, Oil | 1 | 884461 | |||||
| 7 | 26-884462 | SEAL, Water | 2 | ||||||
| 8 | 10-897964 | SCREW, (M6) | 4 | ||||||
| 9 | PUMP ASSEMBLY, Oil | 1 | |||||||
| 10 | 10-88552545 | SCREW, (M6 x 45) Stainless Steel | 4 | ||||||
| 11 | 892335001 | DEFLECTOR, Oil | Opt | ||||||
| 12 | 10-88552516 | SCREW, (M6 x 16) Stainless Steel | Opt | ||||||
| 13 | 21-8M0062064 | CHECK VALVE ASSEMBLY | 1 | No Longer Available | |||||
| 14 | 888819002 | DRAIN, Cowl | 3 | ||||||
| 15 | 22-896934A02 | FITTING ASSEMBLY, Dump | 1 | ||||||
| 16 | 25-26317 | O-RING | 2 | ||||||
| 17 | 10-88552516 | SCREW, (M6 x 16) Stainless Steel | 1 | ||||||
| 18 | 12-4002316 | WASHER | 1 | ||||||
| 19 | 22-896547001 | FITTING | 1 | ||||||
| 20 | 10-88552512 | SCREW, (M6 x 12) Stainless Steel | 1 | ||||||
| 21 | 25-896671 | GROMMET | 4 | ||||||
| 22 | 23-8M8023048 | BUSHING | 4 | 896670001 | |||||
| 23 | 32-8M0108349 | TUBING, (.312) (70.00 Inches Bulk) (Cut to 21 Inches) | 1 | 830757130 | |||||
| 24 | 54-815504104 | CLAMP, Worm Gear | 2 | ||||||
| 25 | 892562T01 | HOUSING, Manifold | 1 | ||||||
| 26 | 892117 | SEAL | 1 | ||||||
| 27 | 10-88552516 | SCREW, (M6 x 16) Stainless Steel | 4 | ||||||
| 28 | 25-897433001 | GROMMET | 1 | 897433 | |||||
| 29 | 896864001 | SEAL, Adaptor Plate | 1 | ||||||
| 30 | 25-892446 | O-RING | 2 | ||||||
| 31 | 10-88552535 | SCREW, (M6 x 35) Stainless Steel | 1 | ||||||
| - | 27-896142A07 | GASKET SET, Powerhead | 1 | 896142A06 | |||||
| - | 61-896499A07 | POWERHEAD ASSEMBLY | 1 | 896499A06 |
