175 VERADO 4-STROKE 4 CYL - Serial 1B227000 Thru 1B381711 - Top Cowl

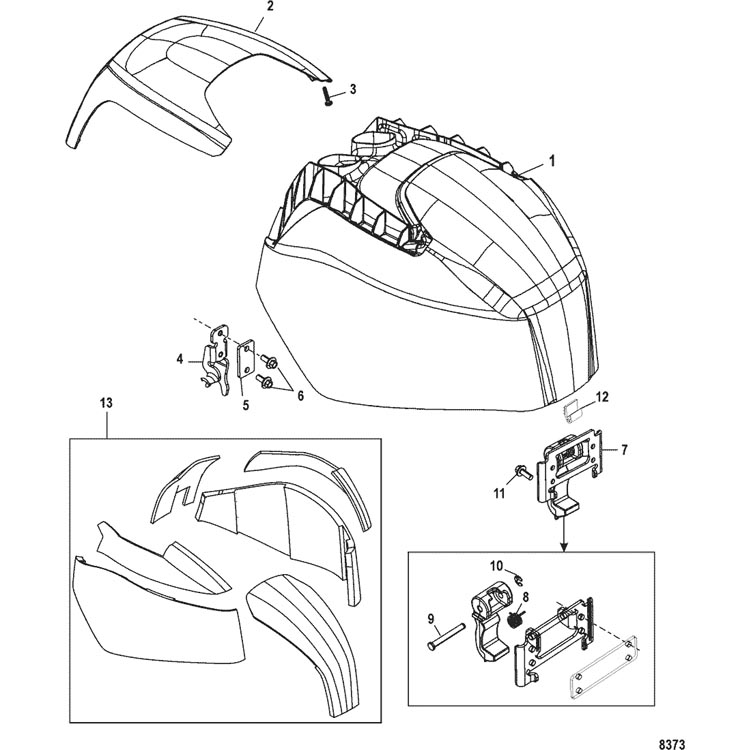

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Adaptor Plate Hose Routings
- Adaptor Plate-Lower
- Alternator/Belt Tensioner Mounting
- Charge Cooler/Intake Manifold
- Charge Cooler/Intake Manifold Hose Routings
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block
- Cylinder Head and Camshaft
- Driveshaft Housing
- Electrical Box Components
- Fuel Supply Module
- Gear Housing(Driveshaft)(Standard/Counter Rotation)
- Gear Housing, Propeller Shaft - Counter Rotation
- Gear Housing, Propeller Shaft - Standard Rotation
- Induction Components
- Oil Pump/Adaptor Plate-Upper
- Port Cylinder Block Components
- Power Trim Components
- Powerhead Gasket Set Components
- Rear Cowl
- Shift Components(Serial Number 1B290522 and Below)
- Shift Components(Serial Number 1B290523 and Up)
- Starboard Cylinder Block/Oil Cooler
- Starter Motor
- Steering Cylinder Assembly
- SuperCharger
- Swivel Bracket and Steering Arm
- Tools
- Tools
- Top Cowl
- Transom Brackets
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 100-8M0063714 | TOP COWL ASSEMBLY | 1 | 895844T01 | |||||
| 1 | 100-8M0050002 | TOP COWL ASSEMBLY | 1 | 895844T02 | |||||
| 2 | 895845T | CAP, Air Dam | 1 | ||||||
| 2 | 895845T01 | CAP, Air Dam | 1 | ||||||
| 3 | 10-888950020 | SCREW, (M4 x 20 mm) | 4 | ||||||
| 4 | 896959 | HOOK | 1 | ||||||
| 5 | 897444002 | BRACKET, Support | 1 | 897444001 | |||||
| 6 | 10-82130014 | SCREW, (M6 x 14) | 2 | ||||||
| 7 | 897437T02 | LATCH ASSEMBLY, Front | 1 | 897437T01 | |||||
| 8 | 24-897440 | SPRING | 1 | ||||||
| 9 | 17-897441 | PIN, Clevis | 1 | ||||||
| 10 | 53-27290 | RING, Retaining | 1 | ||||||
| 11 | 10-82130014 | SCREW, (M6 x 14) | 4 | ||||||
| 12 | 896997001 | SEAL | 1 | 896997 | |||||
| 13 | 8M4501659 | SOUND BLANKET KIT | 1 | 897431A01 | |||||
| - | 37-892565A06 | DECAL SET, (Generic) | 1 | ||||||
| - | 37-892870A06 | DECAL SET, (Generic) | 1 | ||||||
| - | 37-8M0024863 | DECAL SET, Port And Starboard | 1 | No Longer Available | |||||
| - | 37-892870A01 | DECAL SET, Port And Starboard | 1 | ||||||
| - | 37-8M0061182 | DECAL, Horsepower (135), Rear | 1 | 892565002 | |||||
| - | 37-892870003 | DECAL, Rear | 1 | ||||||
| - | 37-8M0061183 | DECAL, Horsepower (150), Rear | 1 | 892565003 | |||||
| - | 37-892870004 | DECAL, Rear | 1 | ||||||
| - | 37-8M0061184 | DECAL, Horsepower (175), Rear | 1 | 892565004 | |||||
| - | 37-892870005 | DECAL, Rear | 1 |
