175 VERADO 4-STROKE 4 CYL - Serial 1B227000 Thru 1B381711 - Tools

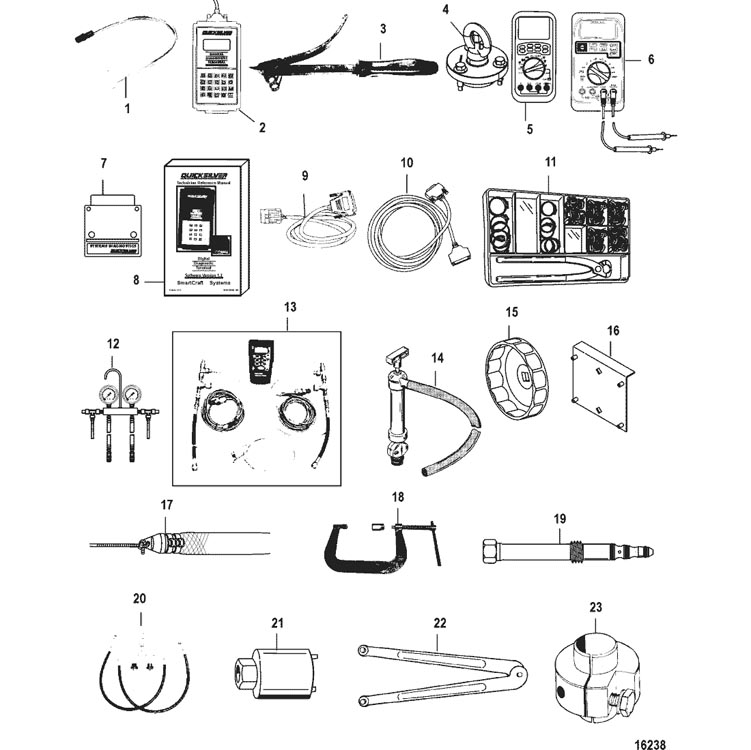

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Adaptor Plate Hose Routings
- Adaptor Plate-Lower
- Alternator/Belt Tensioner Mounting
- Charge Cooler/Intake Manifold
- Charge Cooler/Intake Manifold Hose Routings
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block
- Cylinder Head and Camshaft
- Driveshaft Housing
- Electrical Box Components
- Fuel Supply Module
- Gear Housing(Driveshaft)(Standard/Counter Rotation)
- Gear Housing, Propeller Shaft - Counter Rotation
- Gear Housing, Propeller Shaft - Standard Rotation
- Induction Components
- Oil Pump/Adaptor Plate-Upper
- Port Cylinder Block Components
- Power Trim Components
- Powerhead Gasket Set Components
- Rear Cowl
- Shift Components(Serial Number 1B290522 and Below)
- Shift Components(Serial Number 1B290523 and Up)
- Starboard Cylinder Block/Oil Cooler
- Starter Motor
- Steering Cylinder Assembly
- SuperCharger
- Swivel Bracket and Steering Arm
- Tools
- Tools
- Top Cowl
- Transom Brackets
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 64-826525A1 | FILLER KIT, Steering Helm | 1 | ||||||
| 3 | 91-52344 | HOLDER TOOL | 1 | ||||||
| 4 | 91-895343T02 | TOOL, Flywheel Puller | 1 | ||||||
| - | 10-895346 | BOLT | 1 | ||||||
| 5 | 91-892647A01 | MULTI-METER KIT, DMT 2004 | 1 | ||||||
| 6 | 91-892647A01 | MULTI-METER KIT, DMT 2004 | 1 | ||||||
| 7 | 91-880118A04 | DDT CARTRIDGE | 1 | No Longer Available | |||||
| 8 | 90-881204003 | TECHNICAL MANUAL, Digital Terminal Reference | 1 | ||||||
| 9 | 84-822560A13 | HARNESS ASSEMBLY, Diagnostic Tester | 1 | ||||||
| 10 | 84-825003A1 | CABLE ASSEMBLY, DDT | 1 | ||||||
| 11 | 91-803146A04 | CLAMP TOOL KIT | 1 | ||||||
| 12 | 91-881834A1 | GAUGE | 1 | ||||||
| 13 | 91-8M0105244 | PRESSURE METER, Digital | 1 | No Longer Available | |||||
| 14 | 90265A5 | PUMP ASSEMBLY, Crankcase Oil | 1 | No Longer Available | |||||
| 16 | 91-98234A2 | DRILL FIXTURE KIT, Transom | 1 | ||||||
| 17 | 888462A1 | PULLER ASSEMBLY, Cable | 1 | ||||||
| 18 | 91-809494A1 | COMPRESSOR TOOL, Valve Spring | 1 | ||||||
| 19 | 91-822778A2 | UP PRESSURE KIT | 1 | ||||||
| 19 | 91-822778A3 | DOWN PRESSURE KIT | 1 | ||||||
| 20 | 91-52915A6 | TEST GAUGE KIT | 1 | ||||||
| 21 | 91-44487T1 | REMOVER TOOL, Trim Rod Guide | 1 | ||||||
| 22 | 91-74951 | SPANNER WRENCH | 1 | ||||||
| 23 | 91-44486A1 | REMOVAL TOOL, Trim Rod | 1 | ||||||
| - | 91-881833A03 | GAUGE KIT, Air/Fuel Pressure | 1 |
