300 PRO VERADO 4-STROKE 6 CYL - Serial 1B830170 Thru 2B144122 - Gear Housing(Driveshaft)

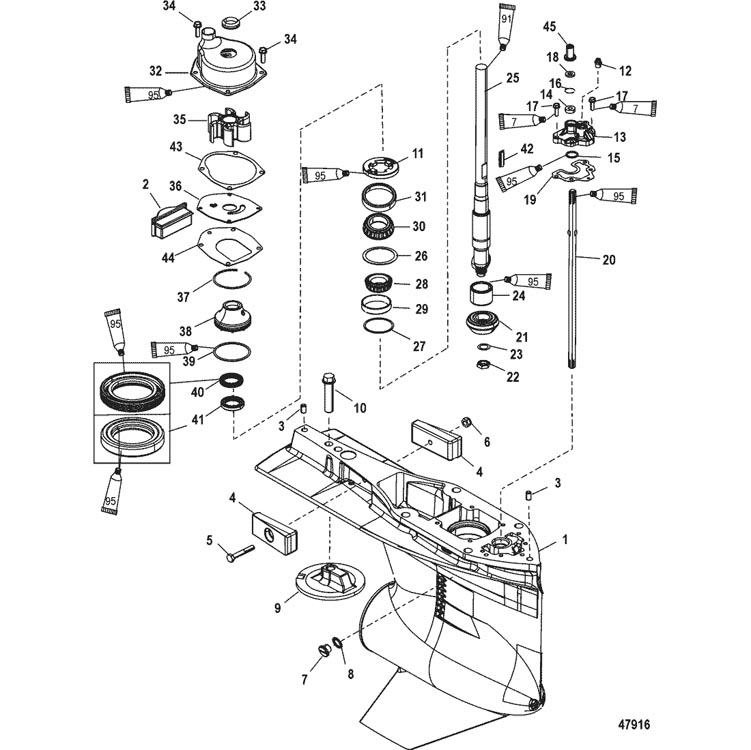

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
- 1600-880686T13         GEAR HOUSING ASSEMBLY, Complete 1
- 1600-880686T14         GEAR HOUSING ASSEMBLY, Complete 1
- 1600-880686T54         GEAR HOUSING ASSEMBLY, Complete 1
- 1600-880686T55         GEAR HOUSING ASSEMBLY, Complete 1
1 1600-8M0056631         GEAR HOUSING ASSEMBLY, Basic 1   No Longer Available
1 1600-8M0056631         GEAR HOUSING ASSEMBLY, Basic 1
2 8M0010459         FILLER BLOCK 1
3 17-43044         PIN, Dowel - Without Hole (.375 x .625) 2
4 97-826134Q         ANODE 2
5 10-4000333         SCREW, (M6 x 40) 1
6 11-401386         NUT, (M6) Stainless Steel 1
7 10-79953A04         PLUG ASSEMBLY, (.375-16 x .250) 1
8 26-830749         SEAL 1
9 97-76214T5         ANODE KIT 1
9 97-76214Q5         ANODE KIT 1
10 10-806327         SCREW, (.437-14 x 1.750) 1
11 8245191         RETAINER 1
12 22-881866         FITTING 1
13 8M0047129         COVER ASSEMBLY 1
14 26-8164641         SEAL, Oil 1
15 25-896522         O-RING, (799 x .103) 1
16 53-8M0046563         RETAINING RING 1
17 10-40011128         SCREW, (M6 x 20) Stainless Steel 4
18 12-77674         WASHER 1
19 27-880729     700-37860   GASKET 1
20 824145         SHIFT SHAFT 1
21 NSS         Pinion Gear 13 Teeth 1   Not Sold Separate
22 11-35921         NUT, (.625-18) 1
23 12-92721         WASHER 1
24 31-42647A1         BEARING ASSEMBLY, Roller 1
25 45-888572         DRIVESHAFT 1
25 45-888573         DRIVESHAFT 1
26 15-8M0063267         SHIM SET 1   No Longer Available
27 15-8M0063268         SHIM ASSEMBLY AR   No Longer Available
28 31-48939A2         BEARING, Tapered Roller 1
29 NSS         Cup 1   Not Sold Separate
30 31-36387A1         BEARING ASSEMBLY, Roller/Cup 1
31 NSS         Cup 1   Not Sold Separate
32 817275A09         HOUSING, Water Pump-Complete 1
33 26-861415A1         SEAL KIT 1
34 10-40011128         SCREW, (M6 x 20) Stainless Steel 4
35 47-43026T2   676-9-43507 700-89630   IMPELLER 1
36 8172761         FACEPLATE 1
37 53-880719         RING, Retaining 1
38 8M0007131         CARRIER ASSEMBLY, Oil Seal 1
39 25-896523         O-RING, (2.175 x .103) 1
40 NSS         Oil Seal 1   Not Sold Separate
41 NSS         Oil Seal 1   Not Sold Separate
42 28-8M0032833         KEY 1
43 27-8172771         GASKET 1
44 27-430331         GASKET 1
45 43585         COUPLING 1
- 26-830749A01         SEAL KIT, Gear Housing 1
- 47-8M0100526         REPAIR KIT, Water Pump Impeller 1 43026Q06
- 817275A08         REPAIR KIT, Water Pump-Upper 1
