300 PRO VERADO 4-STROKE 6 CYL - Serial 1B830170 Thru 2B144122 - Steering Helm Kit-Standard(892557A02, 892380A02, 892558A02)

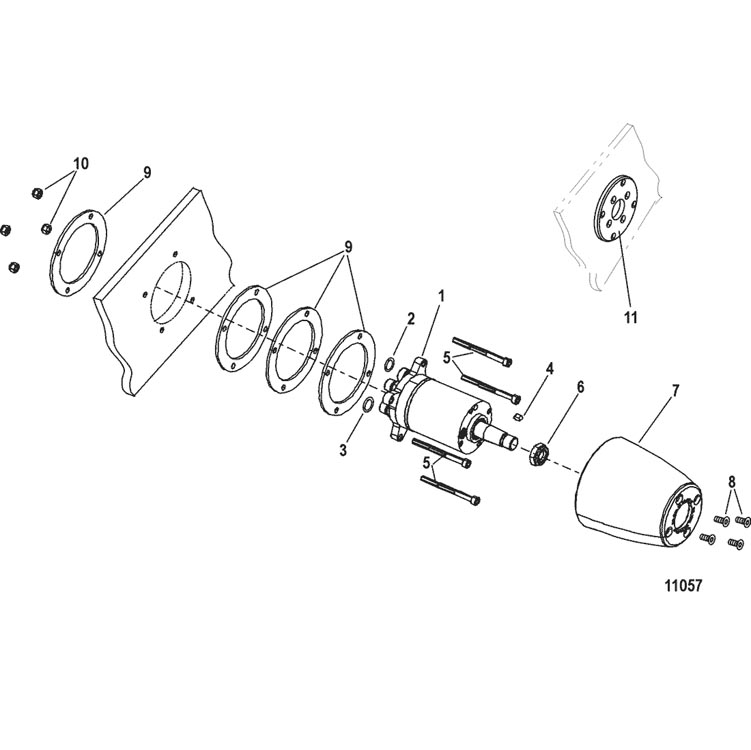

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Adaptor Plate Hose Routings
- Adaptor Plate-Lower
- Alternator/Belt Tensioner Mounting
- Charge Cooler/Intake Manifold Hose Routings
- Charge Cooler/Intake Manifold(Gen I) End Cap Not Serviced
- Charge Cooler/Intake Manifold(Gen II) End Cap Serviced
- Cowl Latching
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block
- Cylinder Head and Camshaft
- Driveshaft Housing
- Electrical Box Components
- Fuel Supply Module
- Gear Housing(Driveshaft)
- Gear Housing, Propeller Shaft 2B026816 and below
- Gear Housing, Propeller Shaft 2B026817 and up
- Ground Cable Kit(899712A01)
- Induction Components
- Mercathode Kit
- Mount Cradle
- Oil Pump/Adaptor Plate-Upper
- Port Cylinder Block Components
- Power Trim Components
- Power Trim/Steering Cylinder
- Powerhead Gasket Set Components
- Pump Kit-Power Steering(4 thru 24 Feet)
- Rear Cowl
- Starboard Cylinder Block/Oil Cooler(1B830815 and Below)
- Starboard Cylinder Block/Oil Cooler(1B830816 and Above)
- Starter Motor
- Steering Helm Kit-Standard(892557A02, 892380A02, 892558A02)
- SuperCharger
- Tools
- Top Cowl
- Upper Shift Components
- Water Separator Filter Kit, 886638A01
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 892557A02 | STEERING HELM KIT, Standard (32 cc) | 1 | ||||||
| - | 892380A02 | STEERING HELM KIT, Standard (40 cc) | 1 | ||||||
| - | 892558A02 | STEERING HELM KIT, Standard (50 cc) | 1 | ||||||
| 1 | 892557T01 | HELM, Standard (32 cc) | 1 | ||||||
| 1 | 892380T01 | HELM, Standard (40 cc) | 1 | ||||||
| 1 | 892558T01 | HELM, Standard (50 cc) | 1 | ||||||
| 2 | 25-627021 | O-RING, (.301 x .070) | 2 | ||||||
| 3 | 25-48171 | O-RING, (.364. x .070) | 2 | ||||||
| 4 | 28-893394 | KEY, With Lock Tab (6.35 mm) | 1 | ||||||
| 5 | 10-4008875 | SCREW, (M6 x 75) | 4 | ||||||
| 5 | 10-4008850 | SCREW, (M6 x 50) | 4 | ||||||
| 6 | 11-826709121 | NUT, (.625-18) Stainless Steel | 1 | ||||||
| 7 | 892328T | COVER, Helm | 1 | ||||||
| 8 | 10-896842 | SCREW, (M6 x 14) | 4 | ||||||
| 9 | 892327 | PLATE, Helm Backing | 4 | ||||||
| 9 | 892327 | PLATE, Helm Backing | 3 | ||||||
| 9 | 892327 | PLATE, Helm Backing | 2 | ||||||
| 10 | 11-401196 | NUT, (M6) | 4 | ||||||
| 11 | 893395A01 | PLATE, Flush Mount | AR |
