300 PRO VERADO 4-STROKE 6 CYL - Serial 1B830170 Thru 2B144122 - Oil Pump/Adaptor Plate-Upper

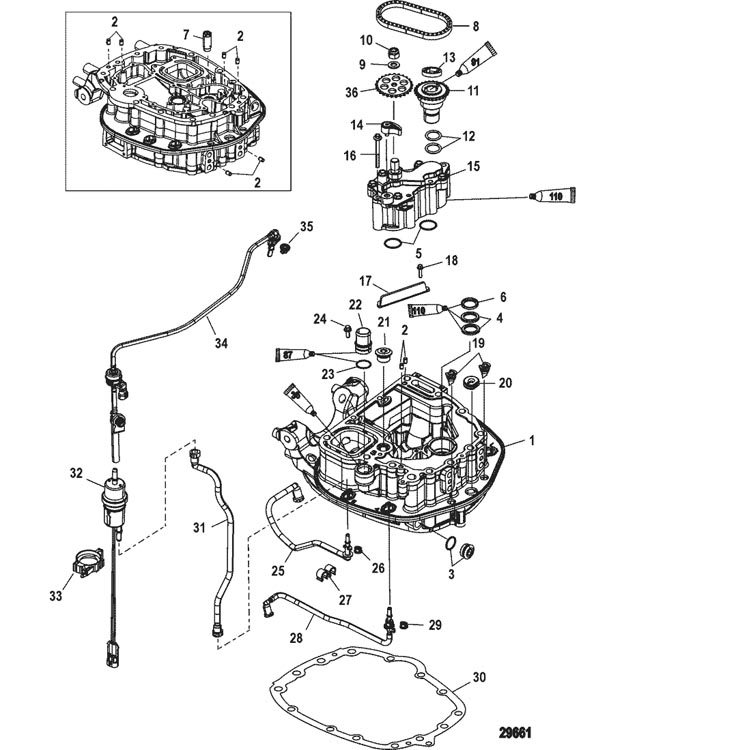

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 892126A03         ADAPTOR PLATE KIT 1
2 17-892228         PIN, Dowel 8
3 19-896951         PLUG, (24 mm) 1
4 26-884462         SEAL, Water 2
5 25-887930         O-RING 2
6 26-8M0033928         SEAL, Oil 1
7 21-8M0034048         VALVE ASSEMBLY, Oil Pump 1
8 8M6002692         CHAIN, Oil Pump Drive 1 884457
9 12-892491         WASHER 1
10 11-892165         NUT 1
11 884458T07         DRIVESHAFT, Oil Pump 1
12 25-8M0034912         O-RING, 3.78 X 21.32 2
13 895063001         INSERT, Plastic 1
14 884418A1         TENSIONER ASSEMBLY, Oil Pump Drive 1
15 884446T04         PUMP ASSEMBLY, Oil 1
16 10-892455065         SCREW 5
17 892335001         DEFLECTOR, Oil 1
18 10-88552516         SCREW, (M6 x 16 MM) Stainless Steel 2
19 888819002         DRAIN, Cowl 2
20 25-888163         GROMMET 1
21 19-8M0027347         PLUG, (M18 x 1.5) 1
22 22-8M0092321         FITTING, Dump 1 896213
23 25-8M0092943         O-RING, (1.239 x .070) 1 846594
24 10-88552512         SCREW, (M6 x 12 MM) Stainless Steel 1
25 32-8M0087108         HOSE, Vent-Lower 1 8M0012200
26 25-884546         GROMMET 1
27 888523001         CLIP 1
28 32-8M0087118         HOSE, Fuel into Fuel Supply Module 1 8M0043793
29 25-884546         GROMMET 1
30 27-889617001         GASKET 1
31 32-8M0087121         HOSE, Fuel-Vent 1 8M0012201
32 884545T01         VENT CANISTER ASSEMBLY 1
33 54-853947         CLIP 1
34 8M0081796         VALVE ASSEMBLY, Fuel Line Purge 1 895775A01
35 25-884546         GROMMET 1
36 884456         SPROCKET, Driven 1
- 27-880552A07         GASKET SET, Powerhead 1
- 61-895247A07         POWERHEAD ASSEMBLY 1
