250XS 3.0L DFI - Serial 0T651945 Thru 0T818042 - Starter Motor
Other Sub-Sections:
- Accessories
- Air Compressor Components
- Air Handler
- Air Hoses
- Bottom Cowl
- Coil Plate
- Crankshaft, Pistons And Connecting Rods
- Drive Shaft Housing And Exhaust Tube
- Dual Engine Tie Bar Kit
- Exhaust Plate
- Flywheel/Alternator
- Fuel Pump
- Fuel Rails
- Fuel System
- Gear Housing, Driveshaft - SportMaster
- Gear Housing, Driveshaft - TorqueMaster
- Gear Housing, Driveshaft-Standard/Counter-FleetMaster
- Gear Housing, Propeller Shaft - SportMaster
- Gear Housing, Propeller Shaft - Torque Master
- Gear Housing, Propeller Shaft-Counter-FleetMaster
- Gear Housing, Propeller Shaft-Standard-FleetMaster
- Hydraulic Pump And Mounting Brackets
- Hydraulic Pump Assembly
- Oil Injection Components
- Port Center Main Oiling System
- Power Trim Components
- Solenoid Plate And Electrical Wiring
- Speedometer/Block Pressure System
- Starboard Center Main Oiling System
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket(Heavy Duty)
- Swivel Bracket(With Integral Trim)
- Throttle Linkage
- Top Cowl
- Transom Bracket(Heavy Duty)
- Transom Brackets
- Vapor Separator Components
- Water Hoses

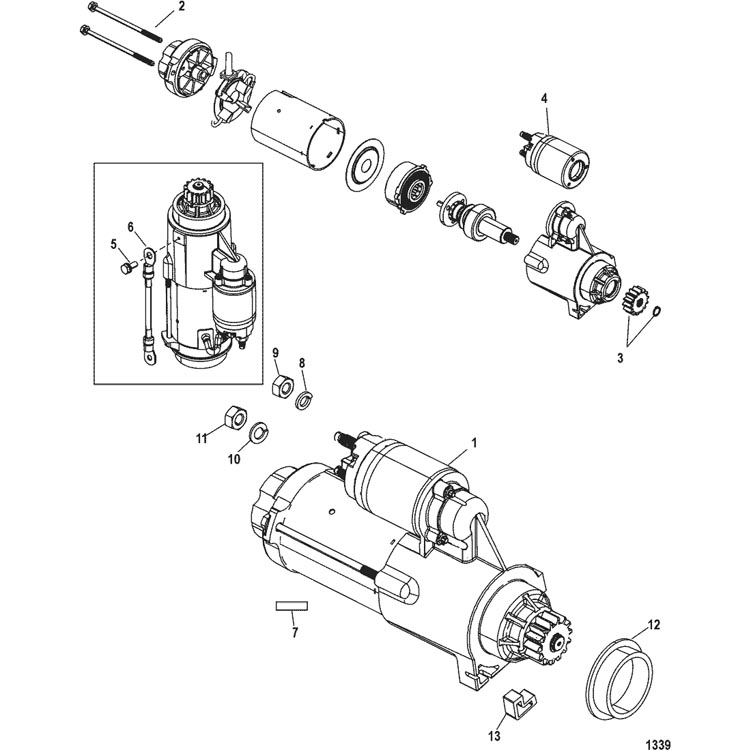

Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
- | NSS | Starter Assembly-Complete | 1 | Not Sold Separate | |||||
1 | 50-892339T01 | STARTER MOTOR ASSEMBLY | 1 | 892339T | |||||
2 | NSS | Thru Bolt | 2 | Not Sold Separate | |||||
3 | 43-880805A1 | GEAR KIT | 1 | ||||||
4 | 809463A1 | 676-9-15125 | 700-72450 | SOLENOID KIT | 1 | ||||
5 | 10-69035 | SCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel | 1 | ||||||
6 | 84-93388A1 | CABLE ASSEMBLY, (6.00 Inches) Black | 1 | ||||||
7 | NSS | Decal-Warning-High Voltage | 1 | Not Sold Separate | |||||
8 | 13-400255 | LOCKWASHER, (M5) | 1 | ||||||
9 | 11-400211 | NUT, (M5) Stainless Steel | 1 | 11-400201 11-853141 |
|||||
10 | 13-26993 | LOCKWASHER, (.312) | 1 | ||||||
11 | 11-400213 | NUT, (M8) Stainless Steel | 1 | ||||||
12 | 8M0034918 | COLLAR | 2 | 56703 | |||||
13 | 8M0043276 | STOP-START | 1 | 879845 |
