250XS 3.0L DFI - Serial 0T651945 Thru 0T818042 - Water Hoses

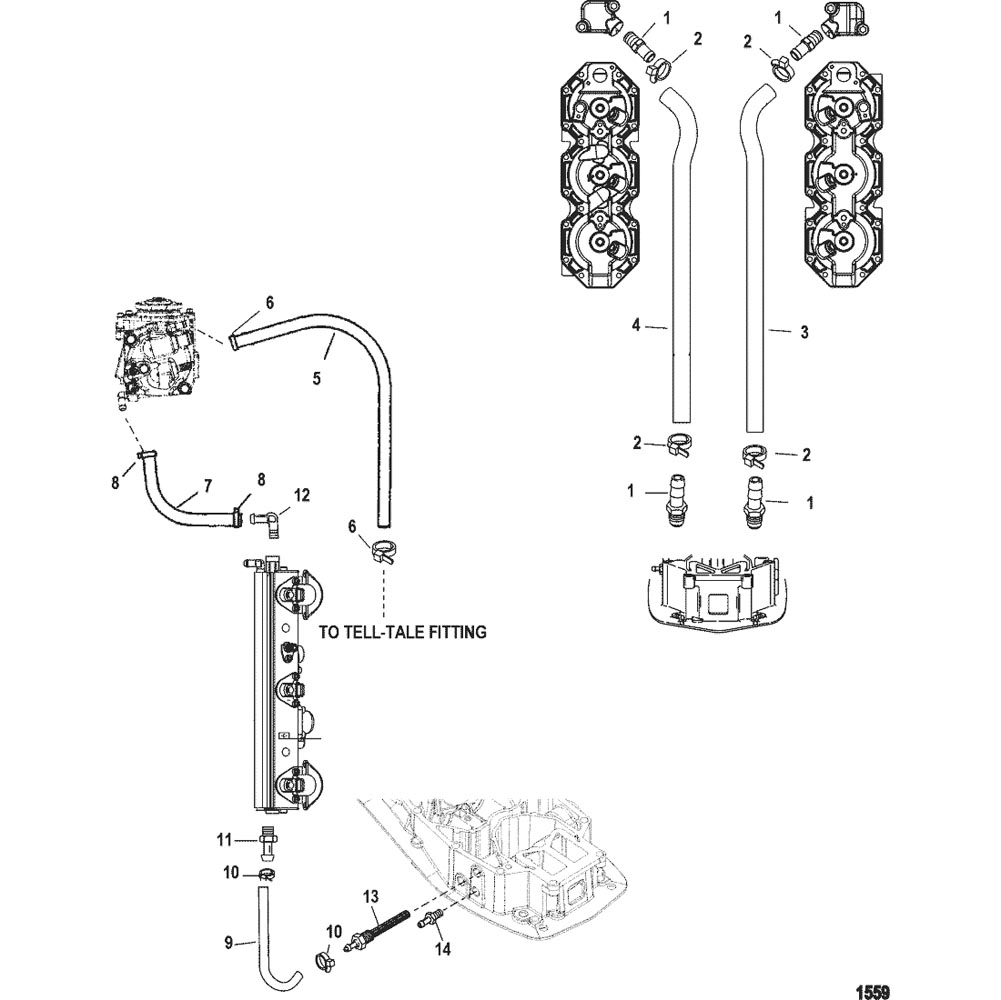

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Air Compressor Components
- Air Handler
- Air Hoses
- Bottom Cowl
- Coil Plate
- Crankshaft, Pistons And Connecting Rods
- Drive Shaft Housing And Exhaust Tube
- Dual Engine Tie Bar Kit
- Exhaust Plate
- Flywheel/Alternator
- Fuel Pump
- Fuel Rails
- Fuel System
- Gear Housing, Driveshaft - SportMaster
- Gear Housing, Driveshaft - TorqueMaster
- Gear Housing, Driveshaft-Standard/Counter-FleetMaster
- Gear Housing, Propeller Shaft - SportMaster
- Gear Housing, Propeller Shaft - Torque Master
- Gear Housing, Propeller Shaft-Counter-FleetMaster
- Gear Housing, Propeller Shaft-Standard-FleetMaster
- Hydraulic Pump And Mounting Brackets
- Hydraulic Pump Assembly
- Oil Injection Components
- Port Center Main Oiling System
- Power Trim Components
- Solenoid Plate And Electrical Wiring
- Speedometer/Block Pressure System
- Starboard Center Main Oiling System
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket(Heavy Duty)
- Swivel Bracket(With Integral Trim)
- Throttle Linkage
- Top Cowl
- Transom Bracket(Heavy Duty)
- Transom Brackets
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 22-8552141 | FITTING | 4 | ||||||
| 2 | 54-816311T | TIE STRAP, (8.00 Inches) | 4 | ||||||
| 3 | 32-859090001 | HOSE, Dump, Starboard | 1 | 859090 | |||||
| 4 | 32-859089001 | HOSE, Dump, Port | 1 | 859089 | |||||
| 5 | 32-856839 | TUBING | 1 | ||||||
| 6 | 54-816311T | TIE STRAP, (8.00 Inches) | 2 | ||||||
| 7 | 32-858807 | HOSE | 1 | ||||||
| 8 | 54-816311T | TIE STRAP, (8.00 Inches) | 2 | ||||||
| 9 | 32-858865 | HOSE | 1 | ||||||
| 10 | 54-816311T | TIE STRAP, (8.00 Inches) | 2 | ||||||
| 11 | 22-291112 | FITTING | 1 | ||||||
| 12 | 22-996642 | FITTING, Elbow 90 Degree (.125-27 x .250) Nylon | 1 | ||||||
| 13 | 35-8348084 | STRAINER | 1 | ||||||
| 14 | 22-828091 | FITTING | 1 | No Longer Available | |||||
| - | 61-841017A52 | POWERHEAD ASSEMBLY | 1 | 841017A03 |
