250XS 3.0L DFI - Serial 0T651945 Thru 0T818042 - Fuel System

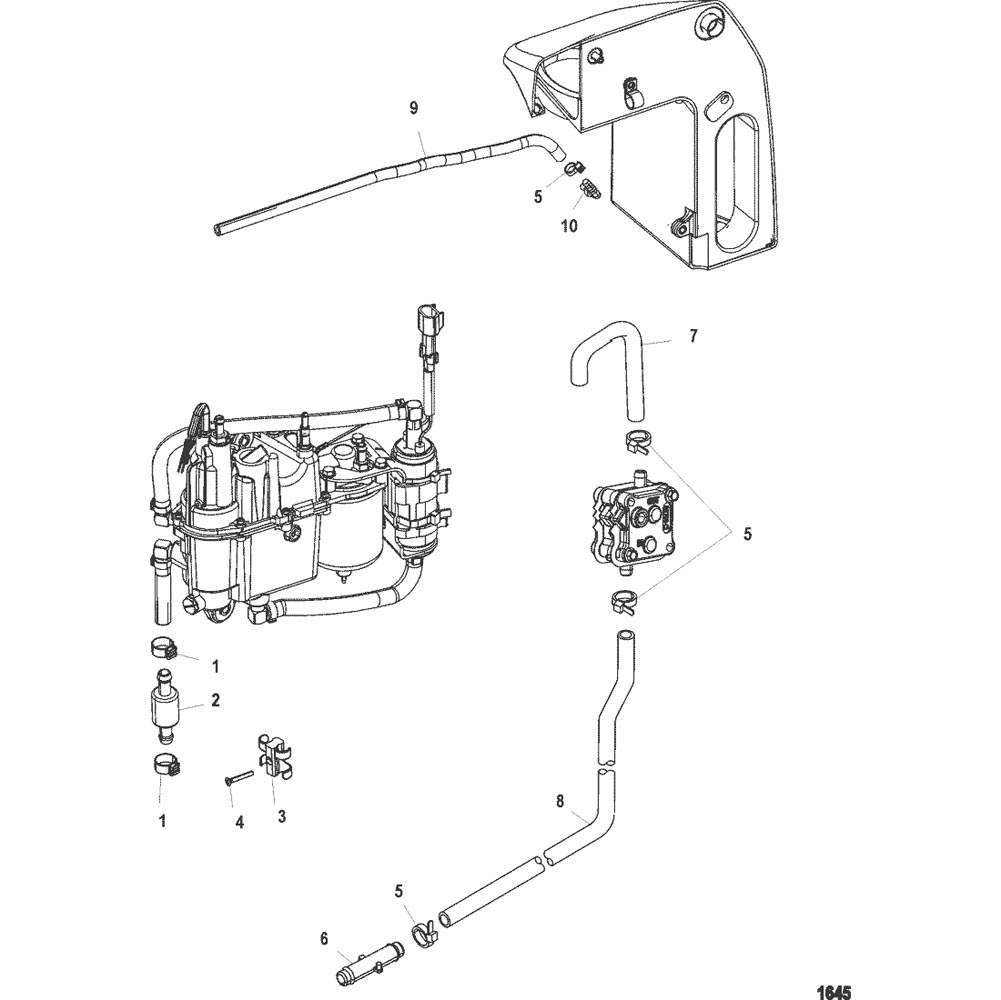

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 54-856880         CLAMP, Hose (15.3) 2
2 21-8557611         CHECK VALVE 1
3 54-8583253         CLAMP 1
4 10-858939         SCREW, (M5 x 35) 1
5 54-816311T         TIE STRAP, (8.00 Inches) 4
6 22-822769         CONNECTOR 1
7 32-8M0064780         HOSE/SLEEVE 1 856818A1
8 32-8M0064778         HOSE 1 8568172
9 32-8M0108355         HOSE, (57.00 Inches Bulk) (Cut to 18.00 Inch Length) 1 830756109
10 22-8589052         ELBOW 1 No Longer Available
