250XS 3.0L DFI - Serial 0T651945 Thru 0T818042 - Vapor Separator Components

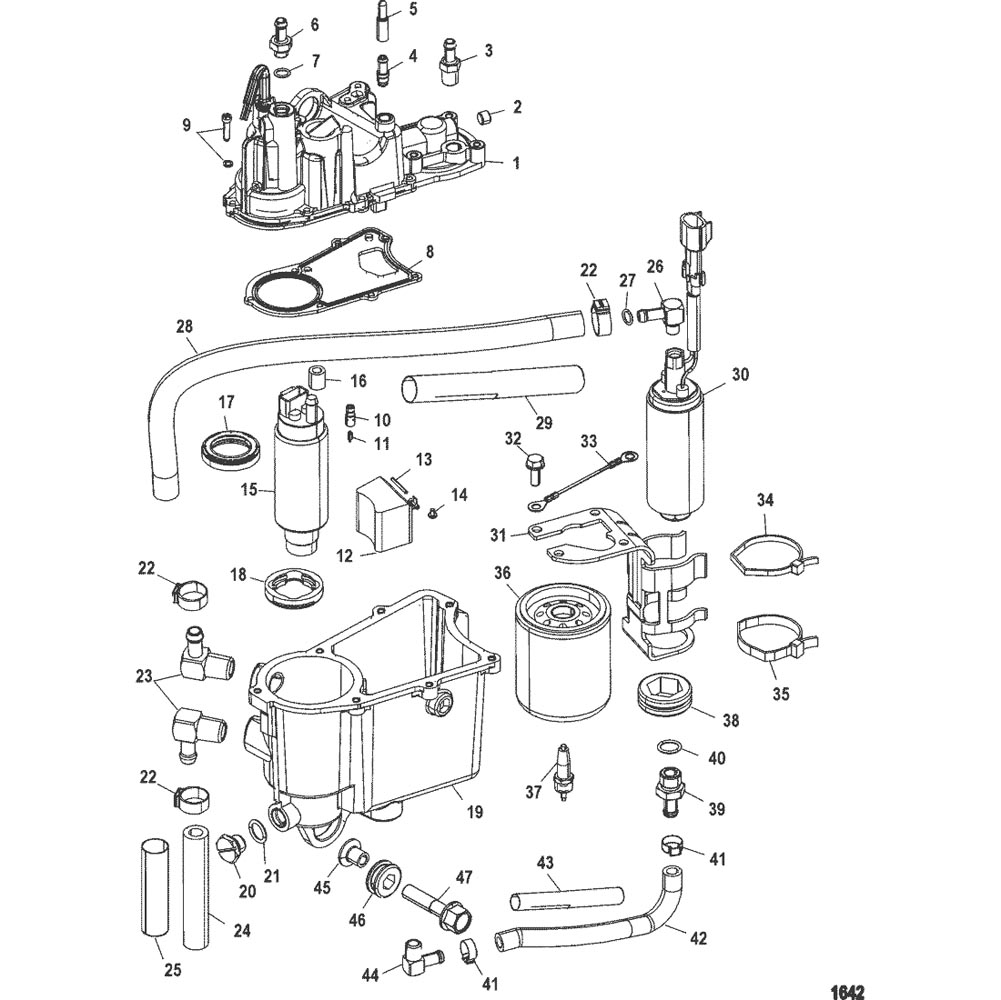

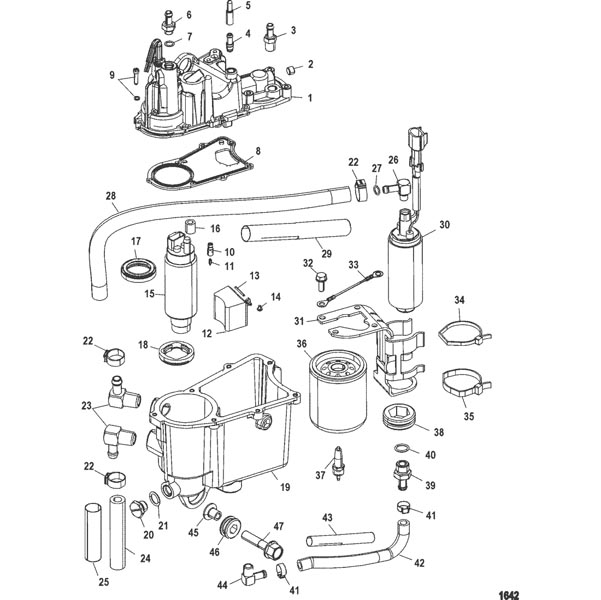

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 850250T1         COVER KIT 1
2 19-883208         PLUG 1 881830
3 22-881740         FITTING, Straight 1
4 22-881741         FITTING 1
5 NSS         Cap 1 Not Sold Separate
6 22-855437A2         FITTING KIT, Pump Outlet 1
7 25-8M0062785         O-RING 1 883209
8 27-855528         GASKET 1 No Longer Available
9 1395-808612         SCREW AND WASHER, (#8-32 x .750) 7
10 883247A1         VALVE/SEAT KIT, Inlet 1
11 8M6004917         VALVE, Needle 1
12 883253A1         FLOAT KIT 1
13 F10064         SHAFT 1
14 1395-5902         SCREW, (#6-32 x .187) 1 No Longer Available
15 889441T         PUMP ASSEMBLY 1
16 23-8M6000589         SLEEVE 1 855428
17 26-803878         SEAL, Black 1
18 26-8554331         SEAL, Brown 1
19 855434A1         BOWL KIT 1
20 19-855435A1         PLUG KIT 1
21 25-8M0062785         O-RING 1 883209
22 54-856880         CLAMP, Hose (15.3) 3
23 22-8554245         ELBOW 2 No Longer Available
24 32-85682239         TUBING, (17.00 Inches Bulk) 1
25 23-85686953         SLEEVE, (27.00 Inches Bulk) 1 No Longer Available
26 22-855802A1         ELBOW 1
27 25-883551         O-RING 1
28 32-856825         HOSE 1 No Longer Available
29 23-85686953         SLEEVE, (27.00 Inches Bulk) 1 No Longer Available
30 8M0047624         PUMP ASSEMBLY 1 8558432
31 855756A1         BRACKET KIT 1 No Longer Available
32 10-1993716         SCREW, (M6 x 16) 4
33 84-881831         WIRE ASSEMBLY 1
34 54-816311T         TIE STRAP, (8.00 Inches) 1
35 54-850181         TIE STRAP, (11.750 Inches) 1
36 35-18458T4         FILTER KIT 1
37 8285861         PROBE 1
38 25-856928         GROMMET 1 No Longer Available
39 22-880862A1         FITTING 1 856812
40 25-880863         O-RING 1
41 54-13791         CLAMP, (15.7) 2
42 32-856778         HOSE 1 No Longer Available
43 23-85686953         SLEEVE, (27.00 Inches Bulk) 1 No Longer Available
44 22-8839761         FITTING 1
45 23-855364         BUSHING 3
46 25-855362001         GROMMET 3 855362
47 10-81893435         SCREW, (M8 x 35) 3
