4.3L CARB ALPHA-BRAVO - 1A063240 and Up - Closed Cooling System

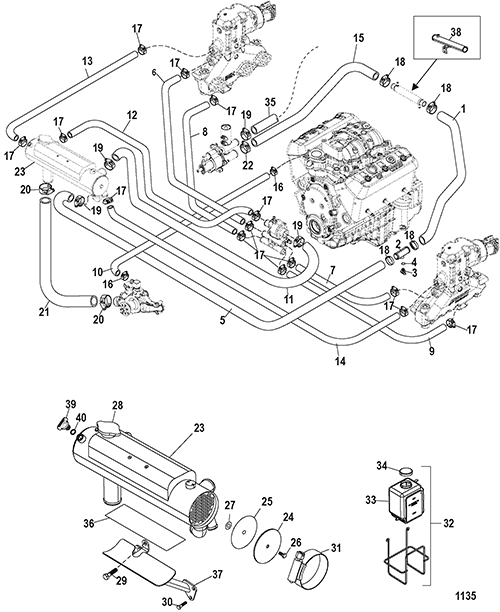

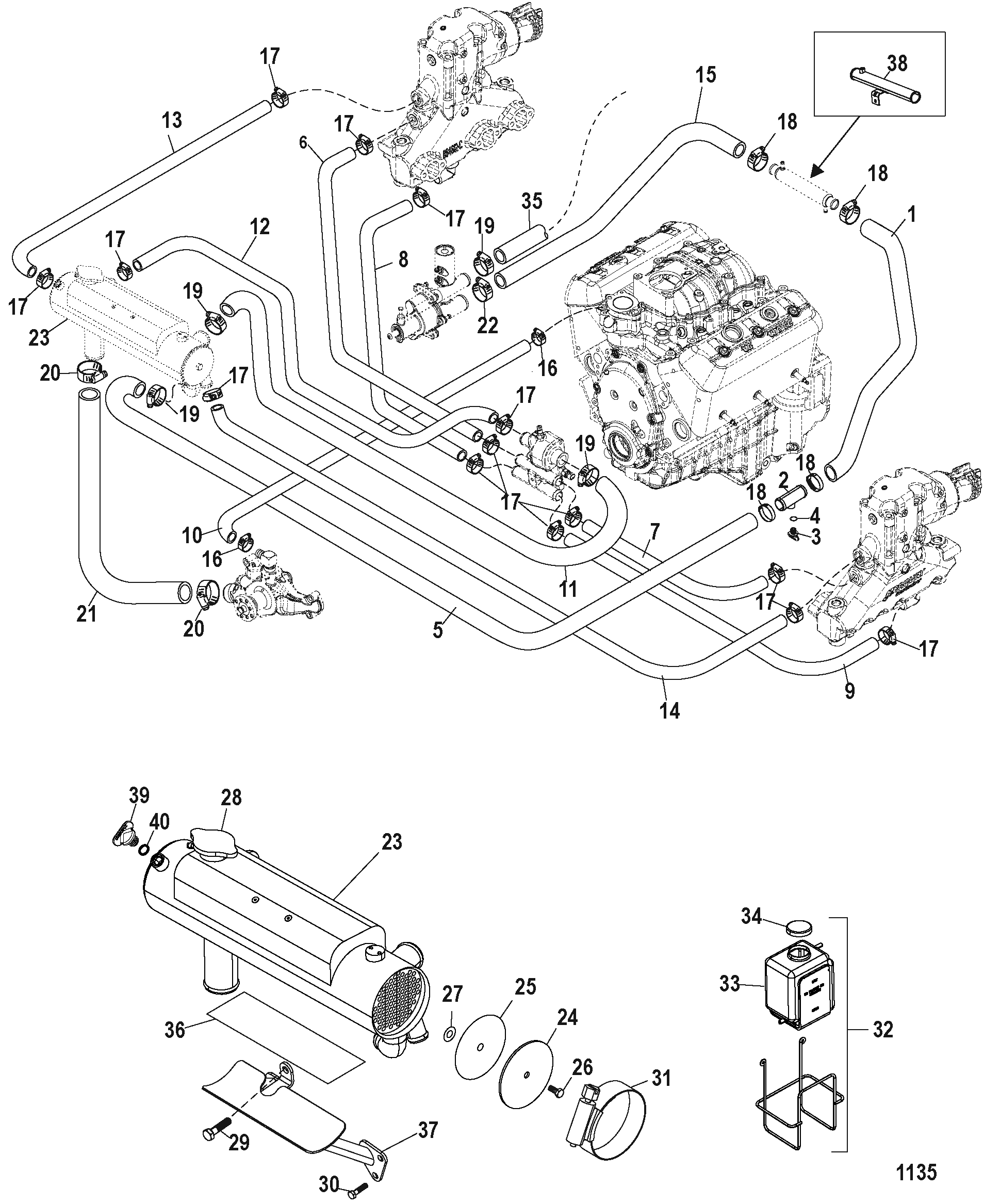

Section Drawing: (Hover or click to view larger)

Return To Parts Finder

Other Sub-Sections:



Ref # Part Class Part Number Description Comments Qty Note
1 0032 OEM: 525-32-808045 HOSE Fuel Cooler to Transmission Oil Cooler   1 [1]
2 0000 OEM: 525-861505 FITTING Drain Assembly   1 [1]
3 0022 OEM: 525-22-806608A02, Sierra: 676-18-4226 PLUG ASSEMBLY (.500-13) Blue   1 [2]
4 0025 8M2000926 SEAL   1
5 0032 OEM: 525-32-860332001 HOSE Drain Fitting to Heat Exchanger   1 [1]
6 0032 OEM: 525-32-866726 HOSE Thermostat Housing to Upper Manifold (Starboard) (Without Riser) 1 [1]
6 0032 OEM: 525-32-865532 HOSE Thermostat Housing to Upper Manifold (Starboard) (With Riser) 1
7 0032 OEM: 525-32-864977 HOSE Thermostat Housing to Upper Manifold (PORT) (Without Riser) 1
7 0032 3322070 HOSE (48.00 Inches Bulk) Thermostat Housing to Upper Manifold (PORT) (With Riser) (Cut to Fit) 1
8 0032 OEM: 525-32-865531 HOSE Thermostat Housing to Lower Manifold (Starboard) 1 [1]
9 0032 OEM: 525-32-865530 HOSE Thermostat Housing to Lower Manifold (Port) 1 [1]
10 0032 OEM: 525-32-865529 HOSE Intake Bypass to Circulating Pump   1 [1]
11 0032 OEM: 525-32-864436 HOSE Heat Exchanger to Thermostat Housing   1 [1]
12 0032 OEM: 525-32-864437 HOSE Heat Exchanger to Thermostat Housing   1 [1]
13 0032 OEM: 525-32-864532 HOSE Heat Exchanger to Starboard Elbow (Without Riser) 1 [1]
13 0032 OEM: 525-32-864934 HOSE Heat Exchanger to Starboard Elbow (With Riser) 1
14 0032 OEM: 525-32-864726 HOSE Heat Exchanger to Port Elbow (Without Riser) 1 [1]
14 0032 OEM: 525-32-864932 HOSE Heat Exchanger to Port Elbow (With Riser) 1
15 0032 OEM: 525-32-8636111 HOSE Sea Pump to Power Steering Cooler   1 [1]
16 0054 OEM: 525-54-815504212 CLAMP Worm Gear Hose   2 [1]
17 0054 OEM: 525-54-815504216 CLAMP Worm Gear (1.56 Diameter) Hose   AR [1]
18 0054 OEM: 525-54-815504222 CLAMP Worm Gear (1.98 DIameter) Hose   AR [1]
19 0054 OEM: 525-54-815504228 CLAMP Worm Gear Hose   AR [1]
20 0054 OEM: 525-54-815504232 CLAMP Worm Gear (2.50 Diameter) Hose   AR [1]
21 0032 OEM: 525-32-864886 HOSE Heat Exchanger to Circulating Pump   1 [1]
22 0054 OEM: 525-54-815504224 CLAMP Worm Gear Hose   AR [1]
23 0000 OEM: 525-864395T01 HEAT EXCHANGER Closed Cooling   1 [1]
24 0000 OEM: 525-864708 COVER   2
25 0027 OEM: 525-27-866152 SEAL End Cover   2
26 0010 OEM: 525-10-814877 BOLT   2
27 0025 814878 O-RING Special   2
28 0036 OEM: 525-36-8148791 CAP Pressure   1 [1]
29 0010 OEM: 525-10-805559 SCREW (.375-16 x .875) Stainless Steel   1 [1]
30 0010 OEM: 525-10-34353 SCREW (.375-16 x 1.00)   1 [1]
31 0054 OEM: 525-54-815504396 CLAMP Worm Gear Heat Exchanger   2 [1]
32 0000 OEM: 525-71587A10 RECOVERY KIT Coolant   1 [1]
NS 0032 OEM: 525-32-774572 HOSE (48.00 Inches Bulk)   1
33 0000 OEM: 525-71587A11 BOTTLE Plastic Coolant Recovery Kit   1
34 0000 OEM: 525-72058 CAP Coolant Recovery Bottle   1
35 0032 865672079 HOSE (96.00 Inches Bulk) Sea Water Pump to Water Pick Up   1 [1]
36 0000 OEM: 525-18431 PAD Heat Exchanger   1 [1]
37 0000 OEM: 525-864405T BRACKET Cooler   1 [1]
38 0000 OEM: 525-863841T TUBE Water (Compact Hydralic Steering) 1
39 0022 OEM: 525-22-806608A02, Sierra: 676-18-4226 PLUG ASSEMBLY (.500-13) Blue   1 [2]
40 0025 8M2000926 SEAL   1 [1]

PART NOTES:

[1] - Component of Closed Cooling Kit 8M0080795

[2] - Alternate part numbers:

806608A02Service Part

806608Q01QS

Component of Closed Cooling Kit 8M0080795
